Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Mount - Fuel Injector
♦ O-ring - Fuel Injector
♦ Ring - Intermediate Fuel Injector
♦ Ring - Sealing Combustion Chamber
♦ Ring - Spacer
♦ Ring - Support
Note
The combustion chamber seal (Teflon
®
seal) must always be re‐
placed before reinstalling the fuel injector.

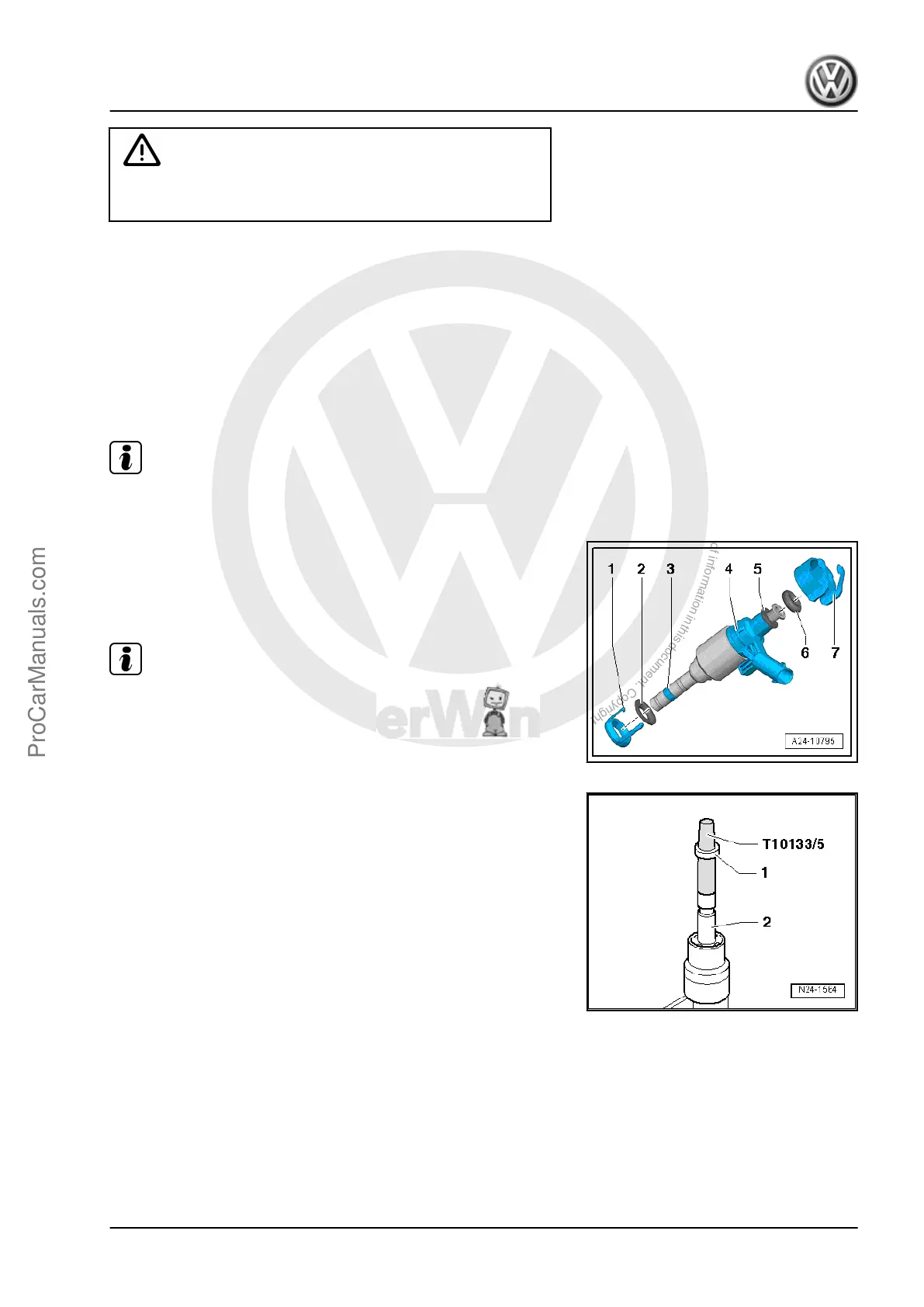

– Remove the combustion chamber seal -3- with the appropriate
tool (for example with cut the seal open with a razor and spread
seal open with a small screwdriver and pull it forward and off.)
When doing this, make sure not to damage the groove and
circumferential rib in the groove base.
Note
If the groove was damaged, the fuel injector must be replaced.
– Clean off any combustion residue on the seal groove and on
the shaft of the fuel injector with a clean cloth before installing
the new combustion chamber seal.
– Place the Injector/Combustion Chamber Seal Tool Set As‐
sembly Cone - T10133/5- with a new combustion chamber
seal -1- onto the fuel injector -2-.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
2. Fuel Injectors 289
