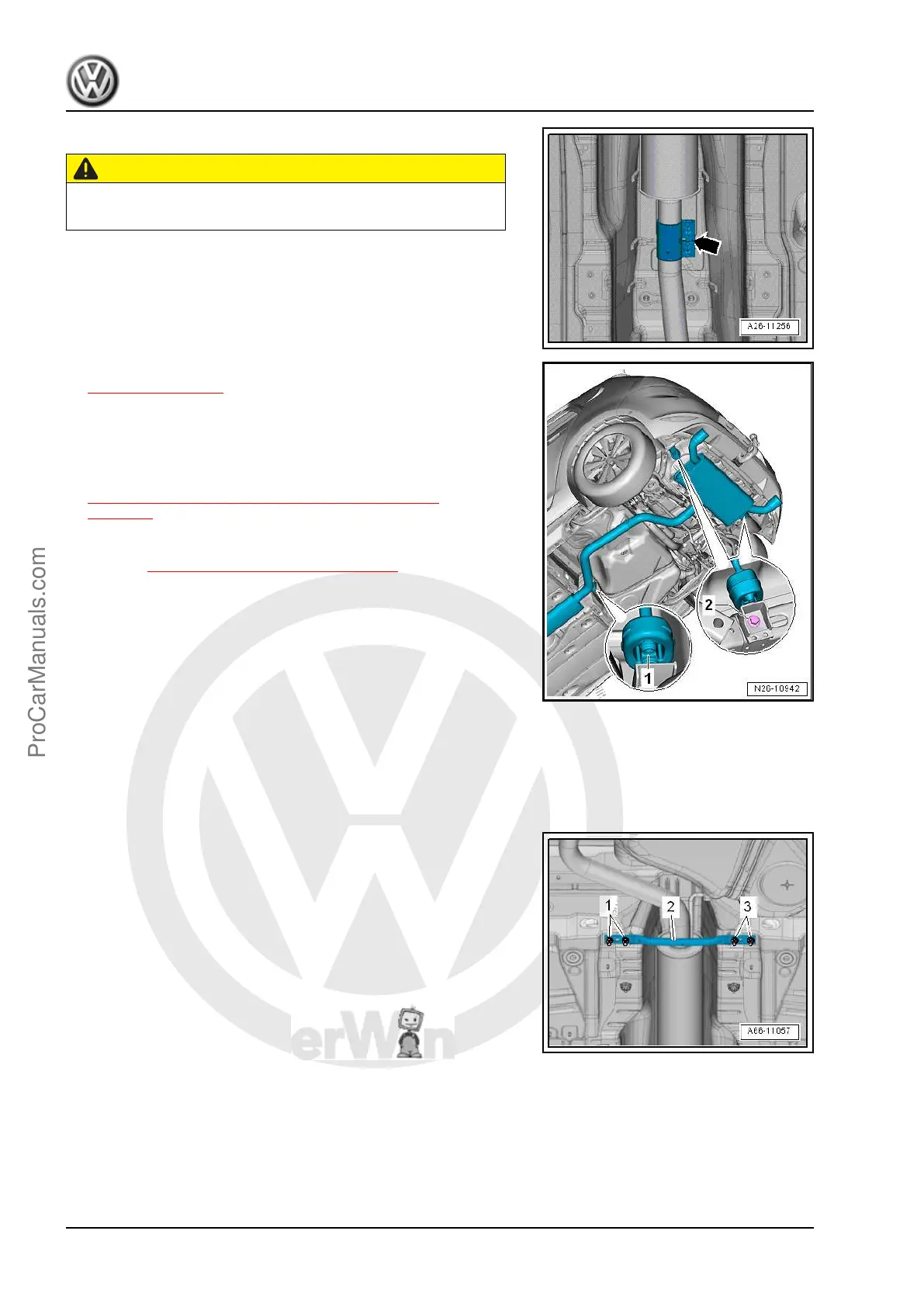

– Loosen the screws for the front clamping sleeve -arrow-.
CAUTION
Risk of accident due to the heavy weight of the muffler.
– A second technician is required for the following work steps.
– Disengage the mount -1- or remove the bolt -item 3-
⇒ Item 3 (page 339) and remove the mount -2- from the body.
Remove the muffler.
Installing
Install in reverse order of removal. Note the following:
– Install the exhaust system free of tension. Refer to
⇒ 1.4 Exhaust System, Installing without Tension,
page 345 .
Tightening Specifications
♦ Refer to ⇒ 1.1 Overview - Muffler, page 338
♦ Refer to ⇒ Body Exterior; Rep. Gr. 66 ; Underbody Panel;
Overview - Underbody Panels .
1.3.2 Golf Wagon
Removing
– If equipped, remove the left rear underbody panel. Refer to ⇒
Body Exterior; Rep. Gr. 66 ; Underbody Panel; Overview -
Underbody Panels .
– Remove the rear tunnel brace -2-. Refer to ⇒ Body Exterior;
Rep. Gr. 66 ; Underbody Panel; Overview - Underbody Pan‐
els .
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
344 Rep. Gr.26 - Exhaust System, Emission Controls
