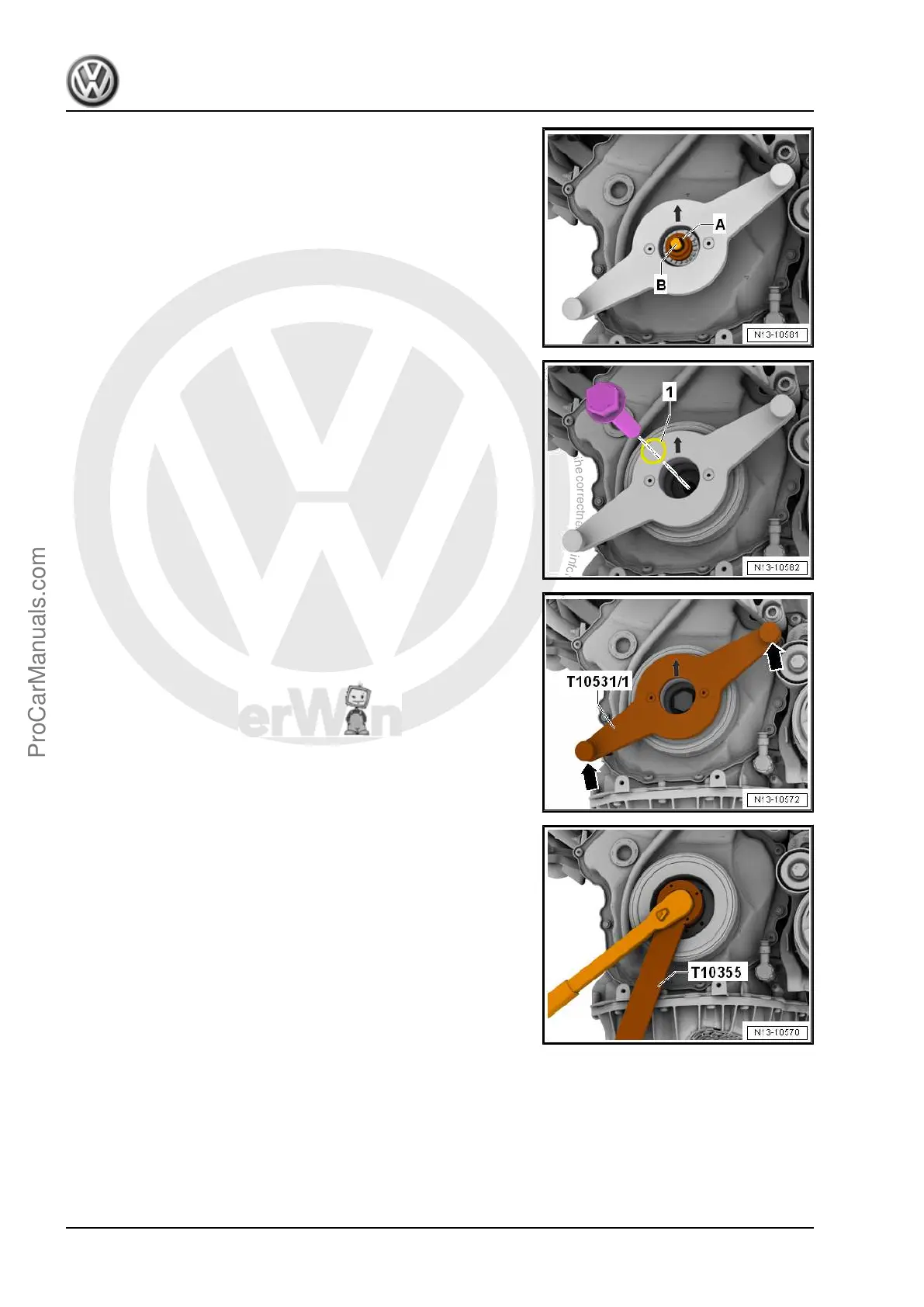

– Remove the Collar Nut -A- and loosen the tensioning bolt
-B-.
– Remove the Tensioning Pins and remove with Assembly Tool
- Turning Over Tool .
– Install a new vibration damper bolt with oiled O-ring -1- hand-
tight.
– Remove the knurled bolt -arrows- and remove the Counter‐
hold Tool - T10531/1- .
– Tighten vibration damper bolt using the Counterhold - Vibra‐
tion Damper - T10355- .
– Install new bolts -arrows-.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
52 Rep. Gr.13 - Crankshaft, Cylinder Block
