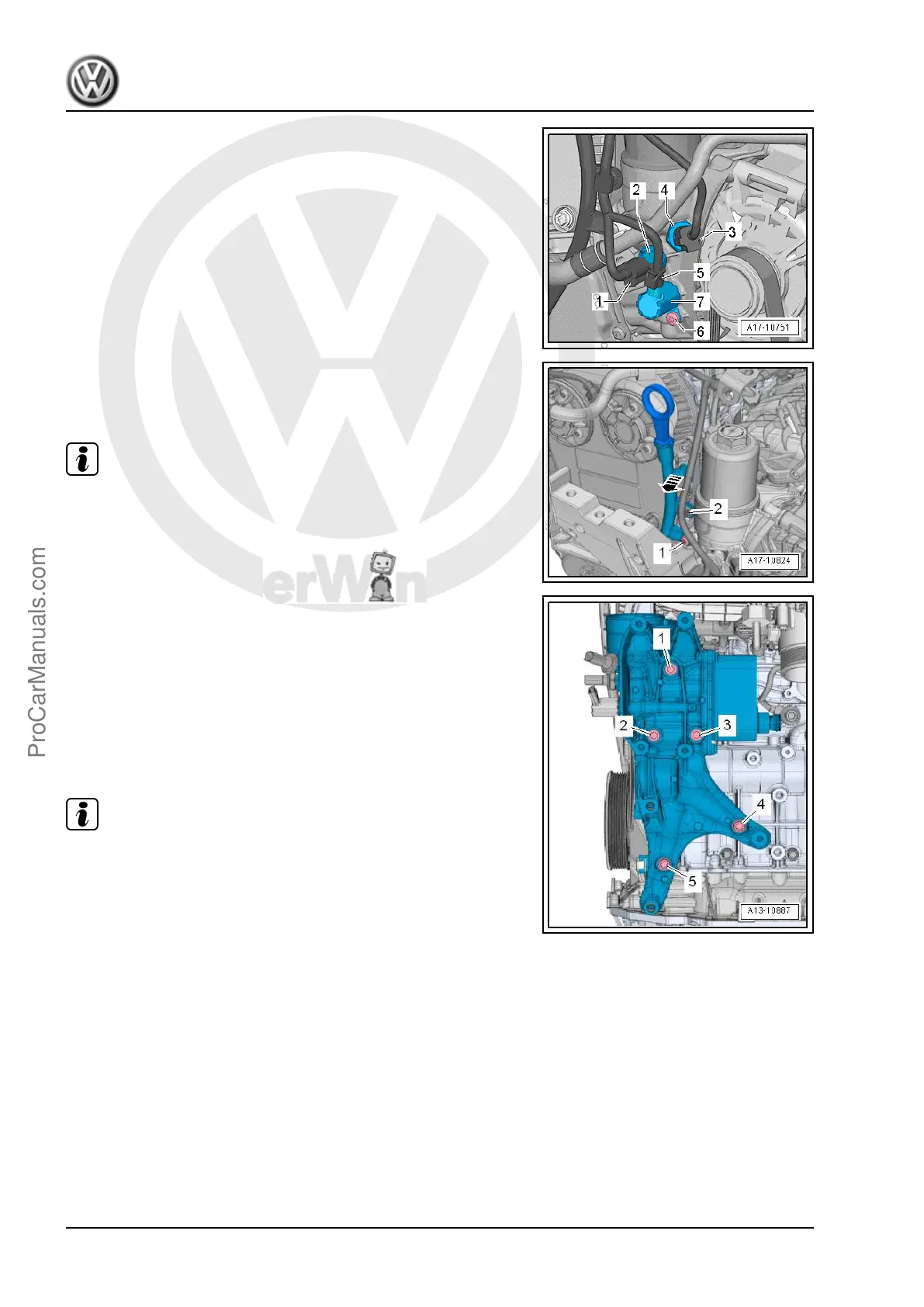

– Disconnect the connectors:
1 - For Oil Pressure Switch - F22- -2-
3 - For Reduced Oil Pressure Switch - F378- -4-
5 - For Piston Cooling Nozzle Control Valve - N522- -7-
– Remove the oil filter. Refer to ⇒ Maintenance ; Booklet 36.1 ;
Procedure Descriptions; Engine Oil, Draining, Replacing Oil
Filter, and Filling .
– Remove the bolt -1- for the oil dipstick guide tube.
– Unclip the guide tube from the upper cover for the timing chain
in the direction of the -arrow-.
Note
Ignore item -2-.
– Free up the wiring harness.
– Place the Shop Crane - Drip Tray - VAS6208- under engine.
– Remove the bolts -1 to 5-.
– Remove the sub-assembly bracket with the engine oil cooler
from the coolant pump housing.
– Guide out the accessories bracket between the intake mani‐
fold and engine support.
Installing
Install in reverse order of removal. Note the following:
Note
♦
Replace the bolts that were tightened with an additional turn.
♦
Replace the O-rings and seals.
Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
54 Rep. Gr.13 - Crankshaft, Cylinder Block
