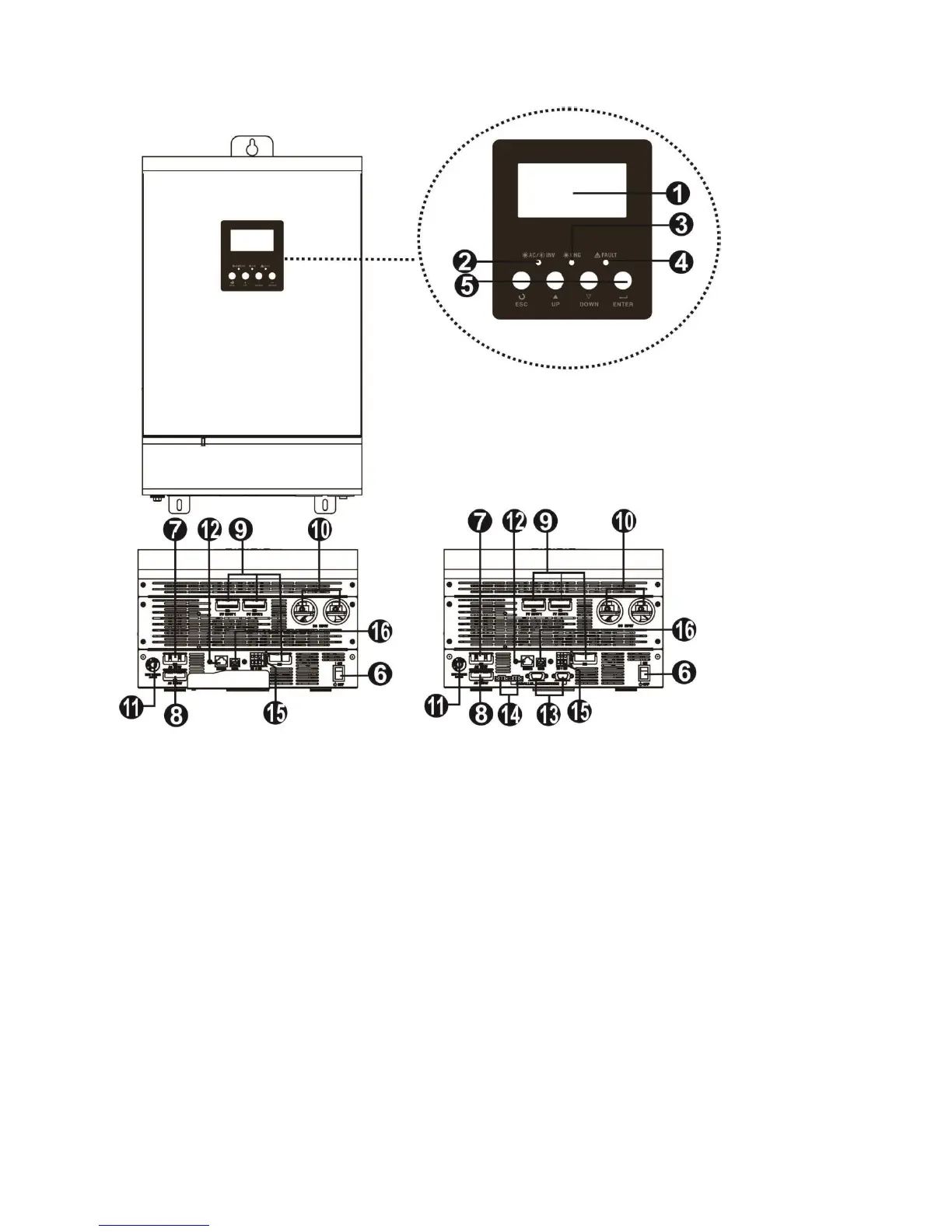

Product Overview
Single Model Parallel Model
1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. AC input
8. AC output
9. PV input (Please check model no for detailed PV input numbers )
10. Battery input
11. Circuit breaker
12. RS232 communication port
13. Parallel communication cable (only for parallel model)
14. Current sharing cable (only for parallel model)
15. Dry contact
16. USB communication port
NOTE: For parallel model installation and operation,
please check separate parallel installation guide for
the details.
