Make

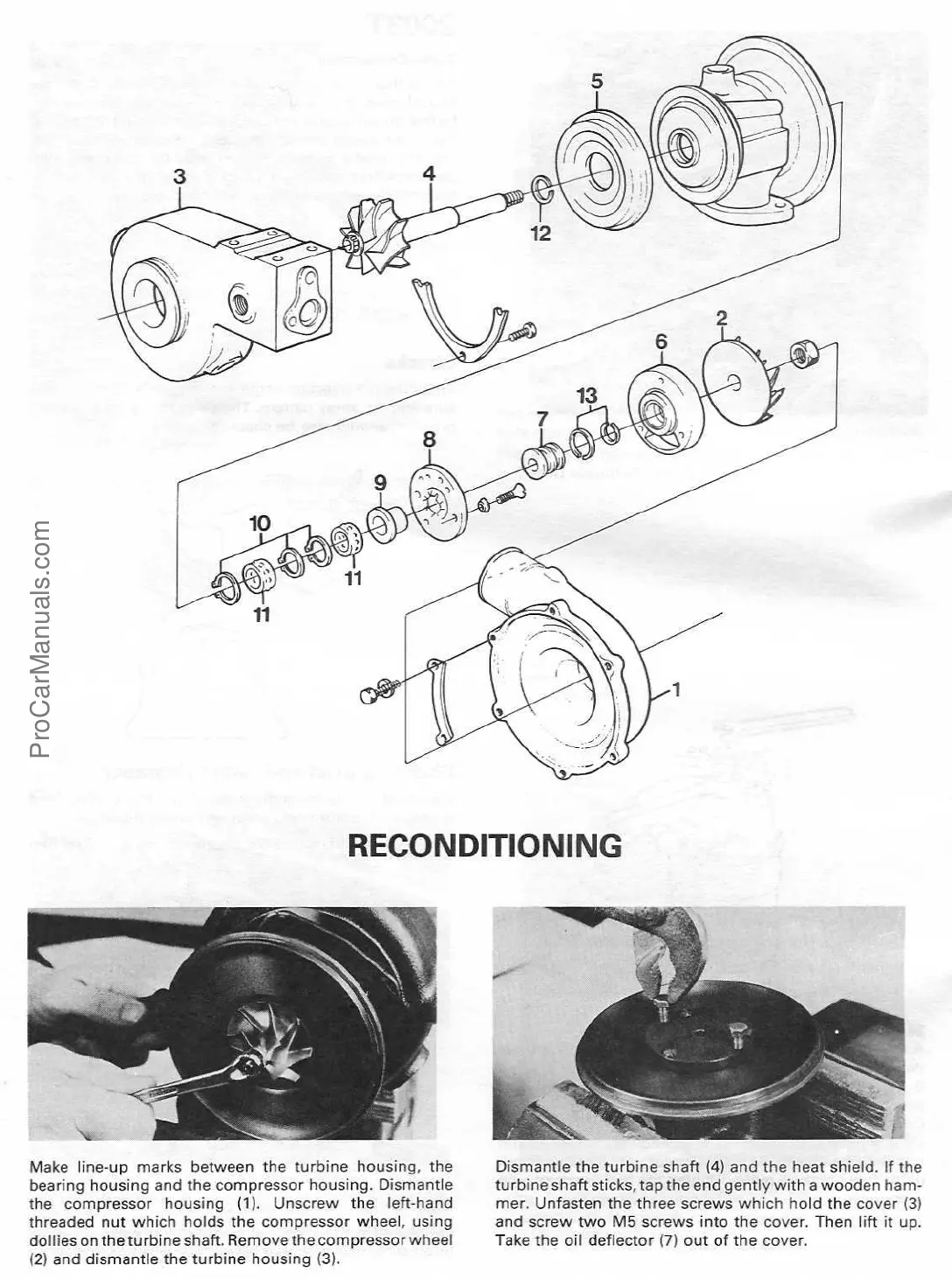

l i ne- up mar ks bet ween t he t ur bi ne housi ng, t he
bear i ng housi ng and t he compr essor
housi ng . Di smant l e
t he compr essor housi ng ( 1) . Unscr ew t he l ef t - hand
t hr eaded nut whi ch hol ds t he compr essor wheel , usi ng
dol l i es on t he t ur bi ne shaf t . Remove t he compr essor
wheel
( 2) and di smant l e t he t ur bi ne housi ng ( 3)
.
RECONDI TI ONI NG
Di smant l e t he t ur bi ne shaf t ( 4) and t he heat shi el d . I f t he
t ur bi ne shaf t st i cks, t ap t he end gent l y wi t h a wooden
hammer . Unf ast en t he t hr ee scr ews whi ch hol d t he cover ( 3)
and scr ew t wo M5 scr ews i nt o t he cover . Then l i f t i t up .
Take t he oi l def l ect or ( 7) out of t he cover .
