Optional instruments
These instruments are sold as engine accessories by
Volvo Penta.

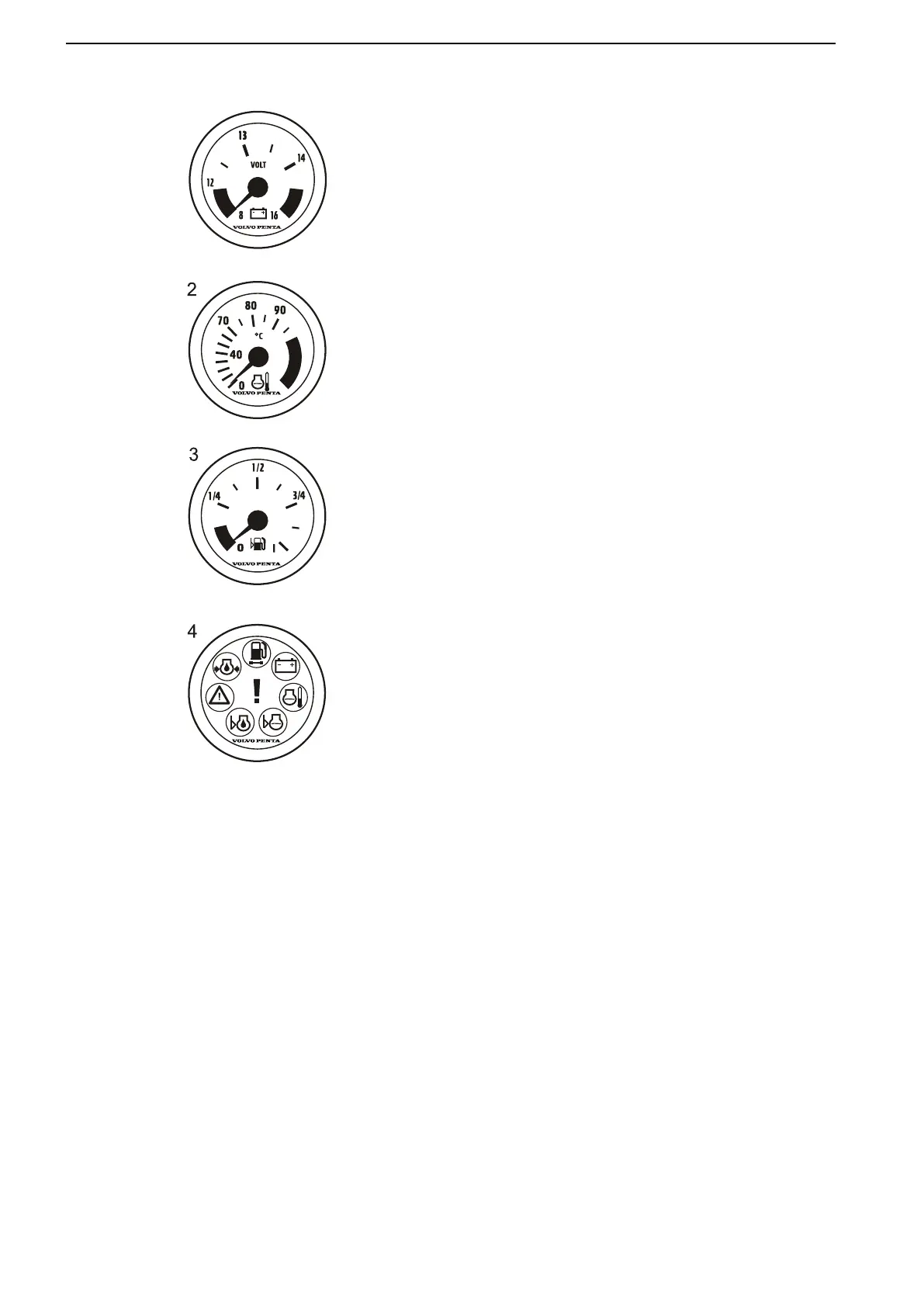

1 Voltmeter, battery charging
The meter shows the alternator charge current.
During operations the charge voltage must be
around 14 V. When the engine is stopped and elec-
trical power switched on, battery voltage is around
12 V.
2 Coolant temperature gauge
The instrument shows engine coolant temperature.
During operations coolant temperature must nor-
mally be between 75-95°C (167-203°F).
3 Fuel level gauge
The fuel level gauge shows the quantity of remain-
ing fuel.
4 Alarm monitor
The alarm monitor gives a visual warning to call
attention to any alarms that occur.
