Volvo Penta D1 - System Failure; Fuel Level

System failure

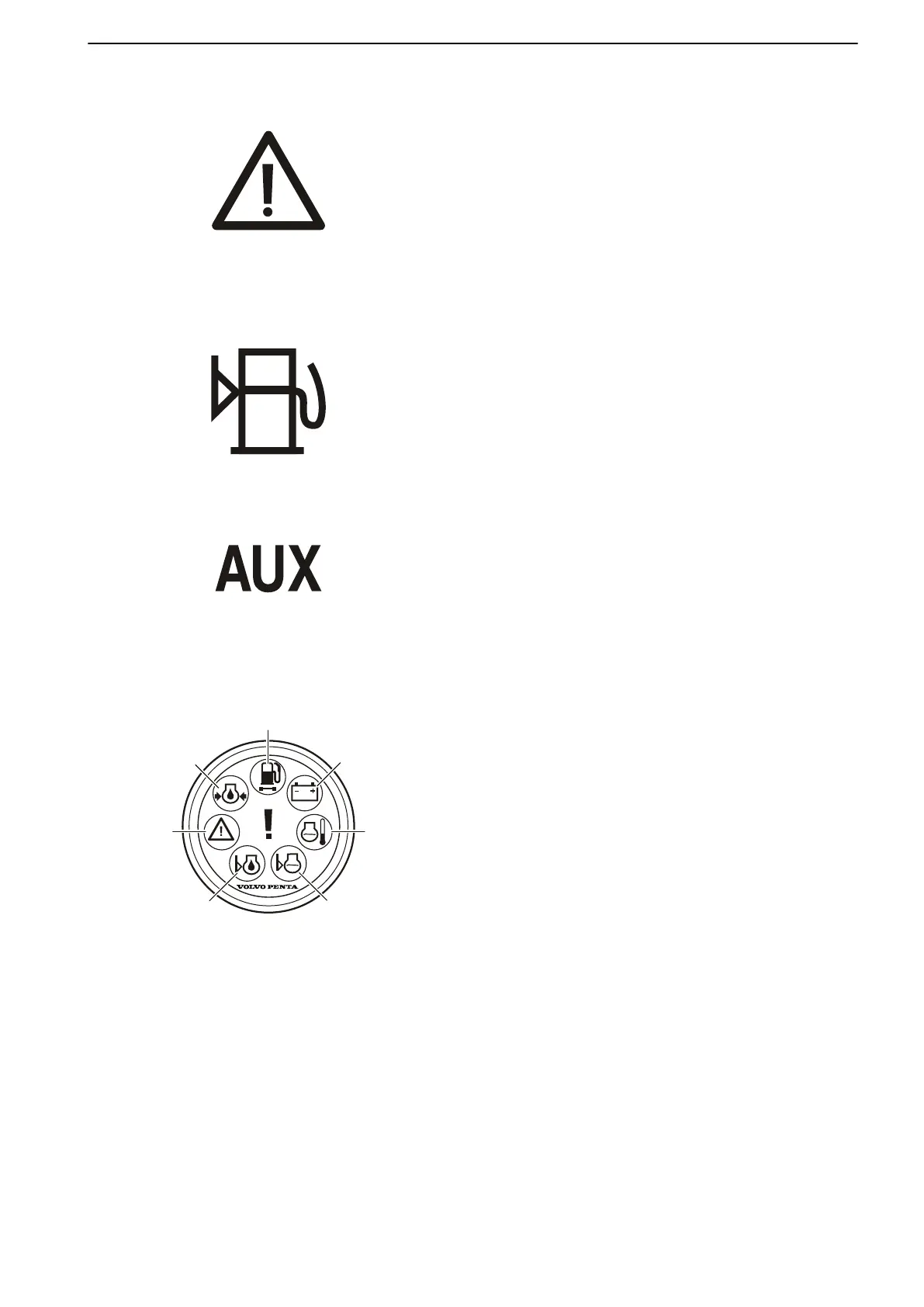

The "system fault" symbol is displayed when there is
a short circuit or cable break.
The symbol shows if the ignition is left on, refer to
Engine Shutdown page 23.
• Check to see if there are any chafed wires or
wires with loose connections.
• Please contact a Volvo Penta workshop if the
fault remains.
Fuel level
The fuel level symbol is displayed when less than 20%
fuel remains in the tank if a fuel level sensor is instal-
led (optional equipment).
Auxiliary alarm
Alarm for auxiliary sensors (optional equipment).
Alarm Display (optional instrument)
1
2
3
4
5
6
7
P0004761
1 The fuel level symbol lights up during operation
when less than 20% fuel remains in the tank if a
fuel level sensor is installed (optional equip-
ment).
2 The battery lamp lights up if the alternator is not
charging.
3 The coolant temperature lamp lights up when
the coolant temperature is too high.
4 This indicator is not activated for the engine.
5 This indicator is not activated for the engine.
6 The "System Failure lamp" will light up at short
circuit, broken wire and AUX failure.
7 If the oil pressure lamp lights up during opera-
tion, the oil pressure in the engine is too low.
Fault Handling
