Volvo Penta D1 - Page 37

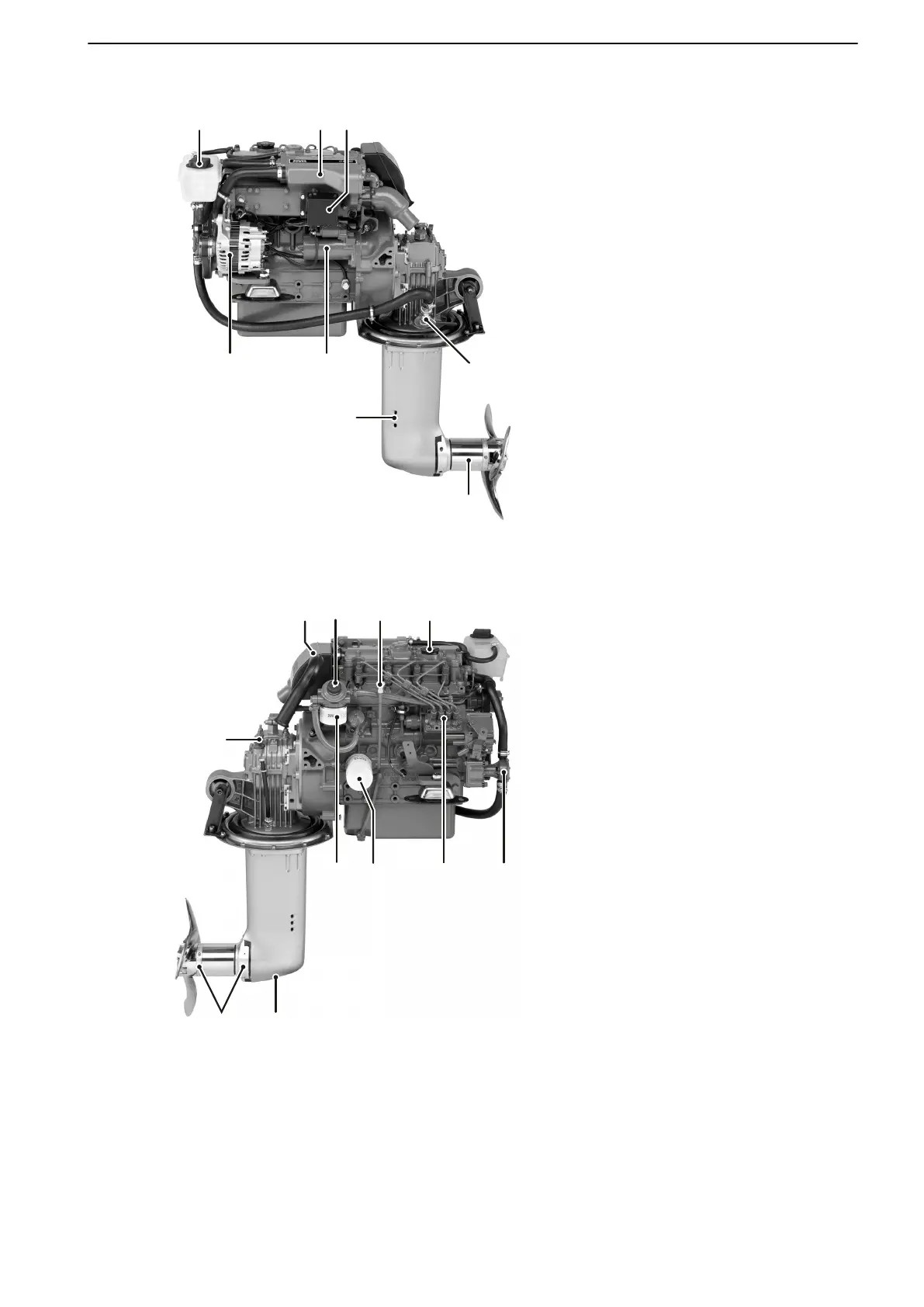

D2-40 with 130S sailboat drive
1
2
3
4 5
6
7
8
P0008056
1 Coolant filling
2 Heat exchanger
3 Relay box
4 Alternator
5 Starter motor
6 Sea cock, S-drive
7 Cooling water inlet, S-drive
8 Folding propeller
D2-40 with 130S sailboat drive
9
10
11
12
13
14
15
16 17
18
19
P0008057
9 Oil dipstick, S-drive
10 Air filter/air intake
11 Fuel hand pump
12 Oil dipstick, engine
13 Oil filler, engine
14 Sacrificial anodes
15 Oil drain, S-drive
16 Fuel filter
17 Oil filter
18 Injection pump
19 Raw water pump
