Propeller
The propeller must be cleaned and greased once
yearly. Remove the propeller and clean all parts thor-
oughly. Brush water resistant grease on the propeller
blade cogs and bearing surfaces so that the propeller
folds easily. Also brush water resistant grease on pins,
spacer sleeves (stern drive), propeller shaft and in the
propeller hub.
WARNING!
Make sure the engine can not start during work on pro-
peller(s); remove ignition key(s) and shift drive into for-
ward or reverse.
Removal
1 Set the control lever to the “Ahead” position.
2 Disassemble the propeller blades by screwing out
the lock screws (4) completely and then pressing
out the pins (1).
3 Stern drive: Fold down the edge of the tab washer
(3) and remove the lock screw (2), tab washer and
nut (5).
Reverse gear: Remove the nut (6), washer (7) and
then the lock screws (8).
4 Pull off the propeller hub and spacer sleeve (stern
drive). Clean and grease the propeller.
Installation
1 Install the spacer sleeve (stern drive) and the pro-
peller hub onto the shaft.
2 Stern drive: Install the nut (5). Place a propeller
blade in the hub and secure it with a wooden wedge
between the propeller blade and hull. Tighten the
nut to 70 Nm.
Reverse gear: Fit the washer (7) and tighten the
nut (6) to 220 Nm. Apply thread locking fluid to the
lock screws (8). Once the lock screws have been
tightened, locking fluid should also be applied to
their heads.
3 Stern drive: Place the tab washer (3) on the nut.
Install and tighten the lock screw (2) to 20 Nm and
bend one of the tab washer tabs against the bolt
head.
IMPORTANT!
The tab washer (3) must be replaced if necessary.
Only Volvo Penta original lock screws (2) may be
used.
A
B
C
1
5
4
3
2
1
2
3
5
7
6
8
8
5
4
1
P0007539

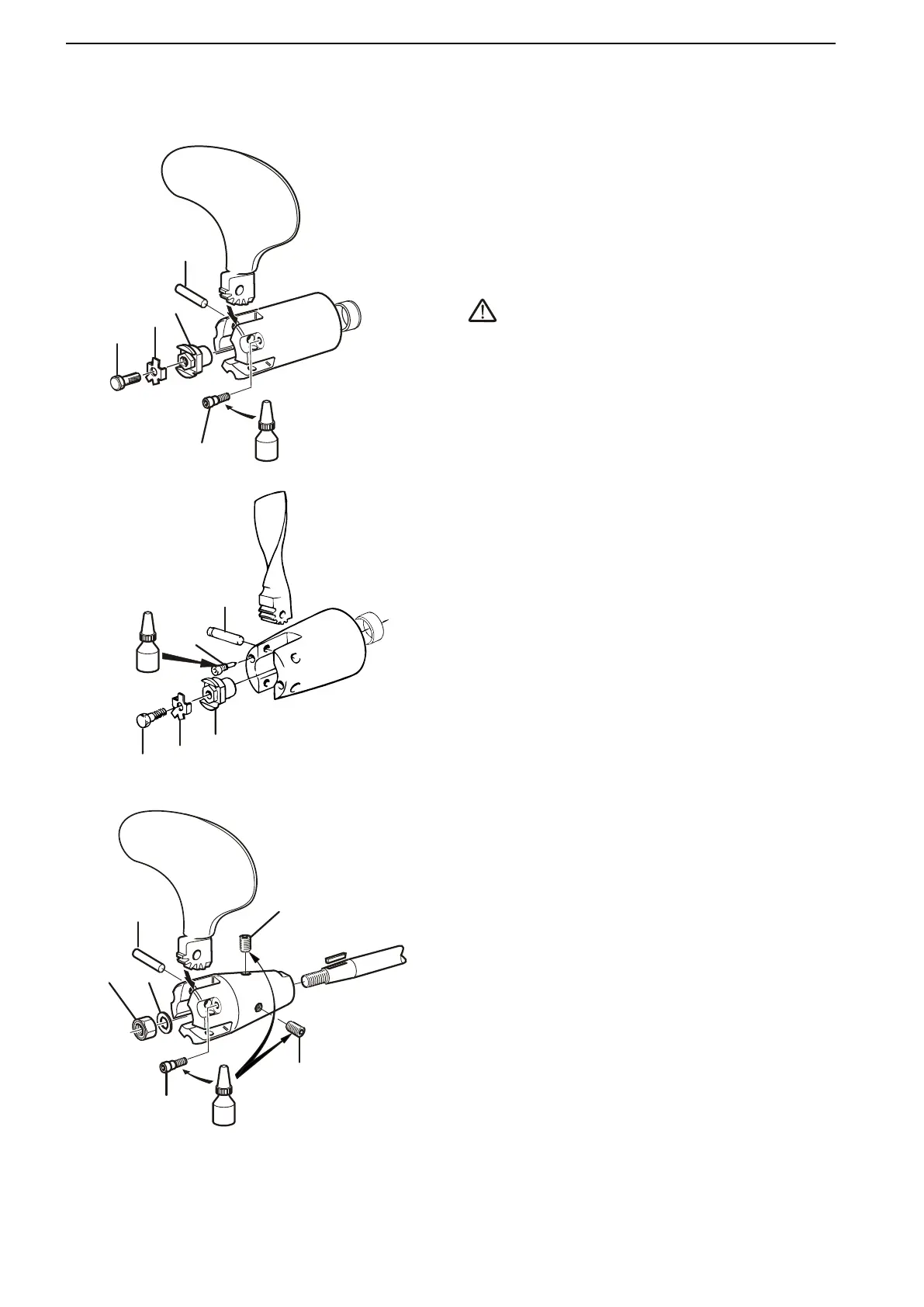

A 3-bladed folding propeller (stern drive)
B 2-bladed folding propeller (stern drive)
C 3-bladed folding propeller (reverse gear)
