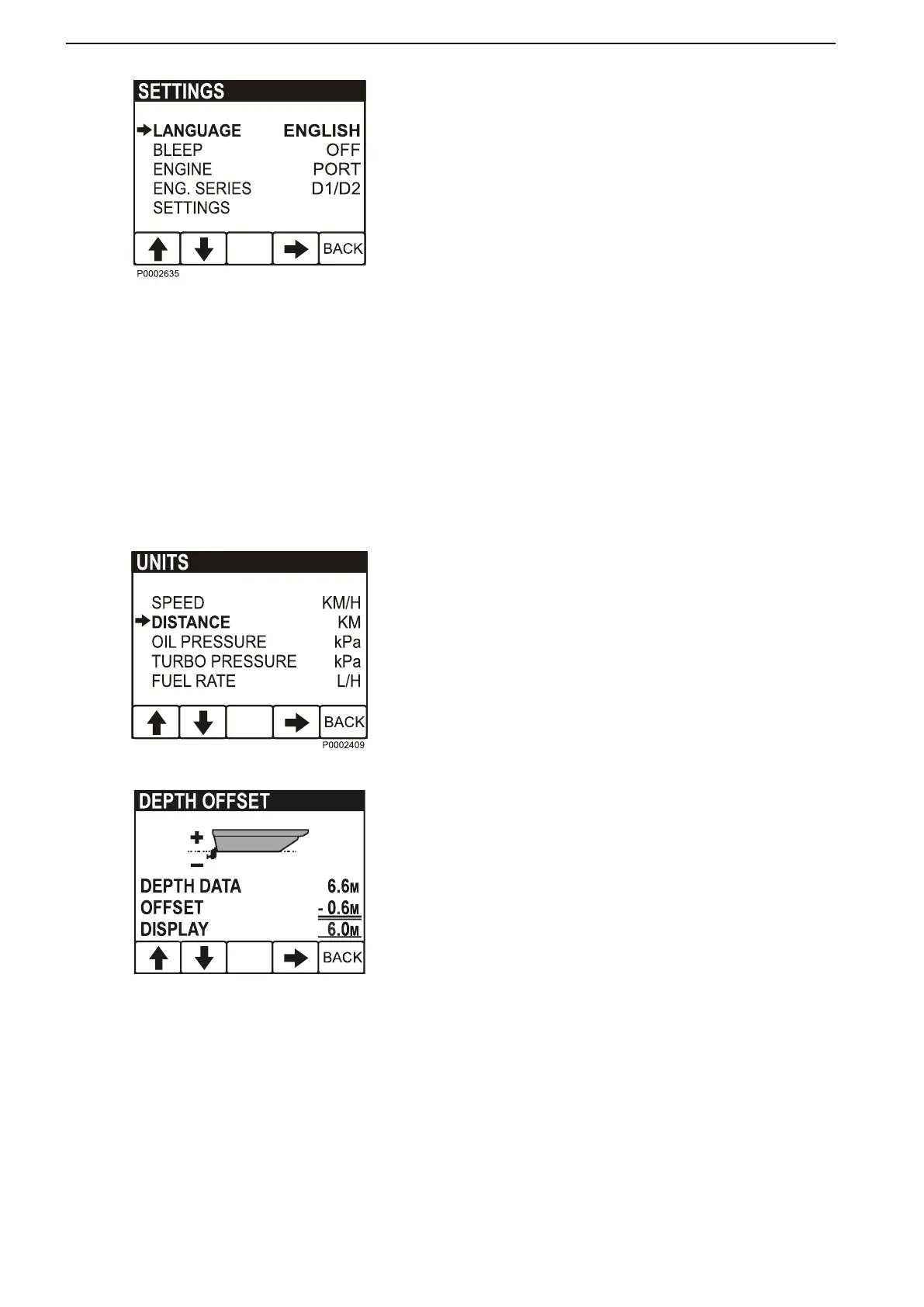

Settings
Language: setting the display language.
Bleep: setting button bleep On or Off.
Engine: setting the installation the display forms part
of, and the engine to be shown in the display (single,
port, starboard or twin).
Eng. series: setting the engine series for the display
(D1/D2, <D2). The display is factory set for engines
larger than D1/D2, therefore the display must be re-set
before it can be used on D1/D2 engines.
Display: setting speed indicator and tachometer
intervals.
- Rpm intervals, 2500–9000 rpm in 500 rpm stages.
Set 4000 rpm.
- Speed, on/off.
- Speed intervals, 10–100 knots in 10 knot stages.
- Graph intervals: 2 min, 10 min, 30 min, 60 min, 2 h,
4 h or 8 h.
- Speed (Speed): KNOTS, MPH, KM/H
Units: Selection of operational information units to be
shown (this menu is only displayed if “Local” is selected
in the settings menu: “Local” must always be selected
for D1/D2 engines).
- Distance: NM, MILE, KM
- Oil pressure/Turbo pressure: kPa, psi
- Fuel rate: L/H, GAL/H, IGAL/H
- Temperature: °C, °F
Calibration: the engine must be switched on during
calibration.
Depth compensation
Setting the Volvo Penta echo sounder. The echo-
sounder can be installed anywhere between the
waterline and the boat's deepest point. Set the
deviation – off set – so that the display value shows
one of these points.
To adjust the value up (+), set the distance between
the echo-sounder and the waterline; to adjust the value
down (–), set the distance between the echo-sounder
and the boat's deepest point. The value can be set in
0.1 unit stages.
Store the set value by depressing BACK (button 5).
