Volvo Penta D3 - Page 84

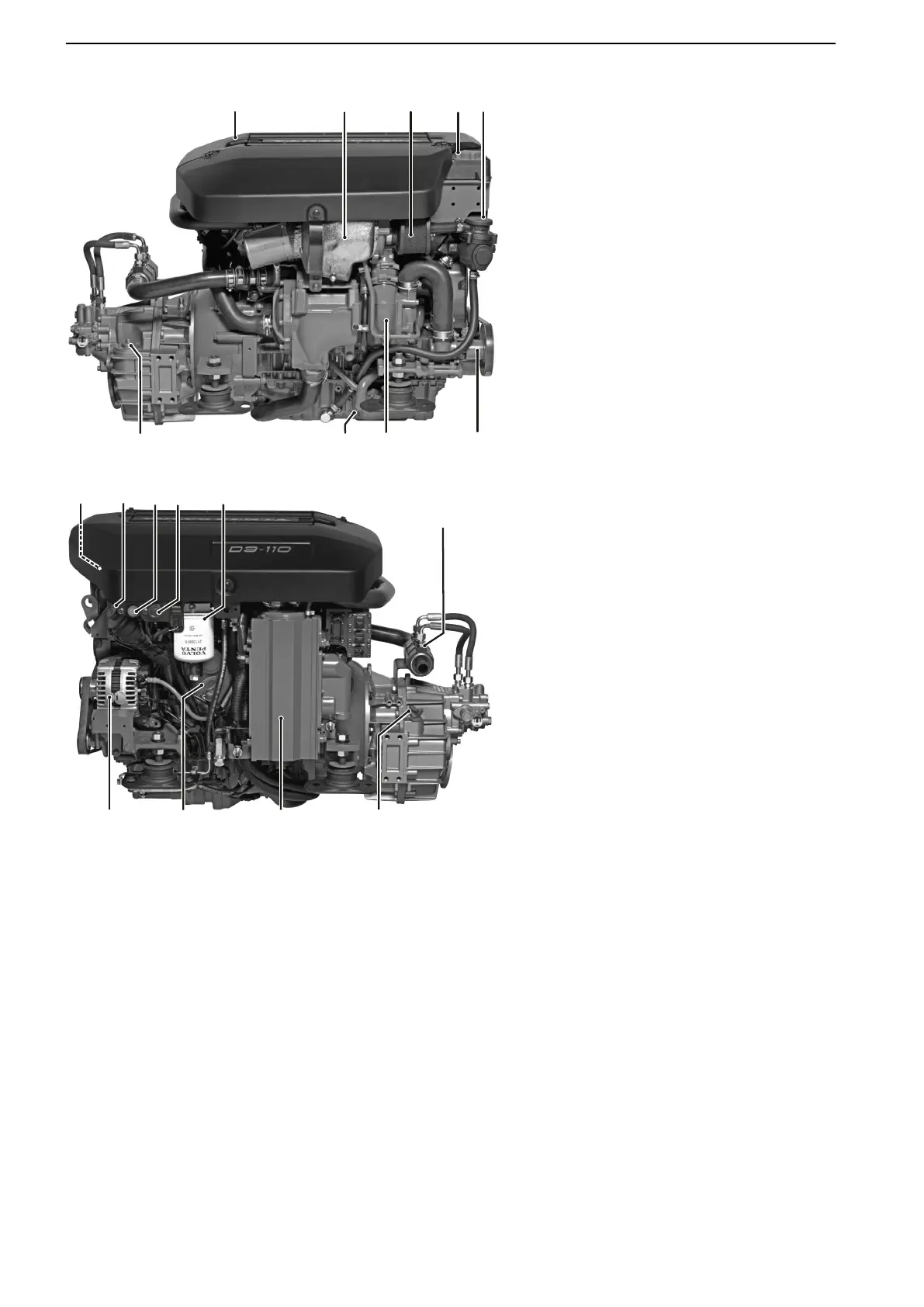

D3 with HS45 reverse gear
2
3
5
7
6
8
9
4
1
P0011342
1 Oil filler cap, engine
2 Turbo
3 Air Filter
4 Coolant, Filling
5 Crankcase ventilation
6 Seawater Pump
7 Charge air cooler
8 Oil cooler
9 Oil filter, reverse gear
11
12
13
14
10
18
19
17
16
15
P0011343
10 Relays
11 Oil filter
12 Auxiliary stop
13 Fuel feed
14 Fuel Filter
15 Oil cooler, reverse gear
16 Oil dipstick, reverse gear
17 Heat exchanger
18 Oil dipstick, engine
19 Alternator
Maintenance
