Volvo Penta D3 - Maintenance Procedures; Engine and Filter Maintenance

Maintenance
This chapter contains general technical information and instructions on how the prescribed maintenance items
must be carried out. Read through the instructions carefully before starting work. The times when maintenance
items must be carried are indicated in the Service Protocol.
Read through the safety precautions for maintenance and service in the Safety Information page 4 chapter before
work on the engine is begun.
WARNING!
Care and maintenance work should be done with the engine stopped unless otherwise specified. Stop the engine
before opening or removing the engine hatch/hood. Make it impossible to start the engine by removing the start
key and cutting the system voltage with the main switches.

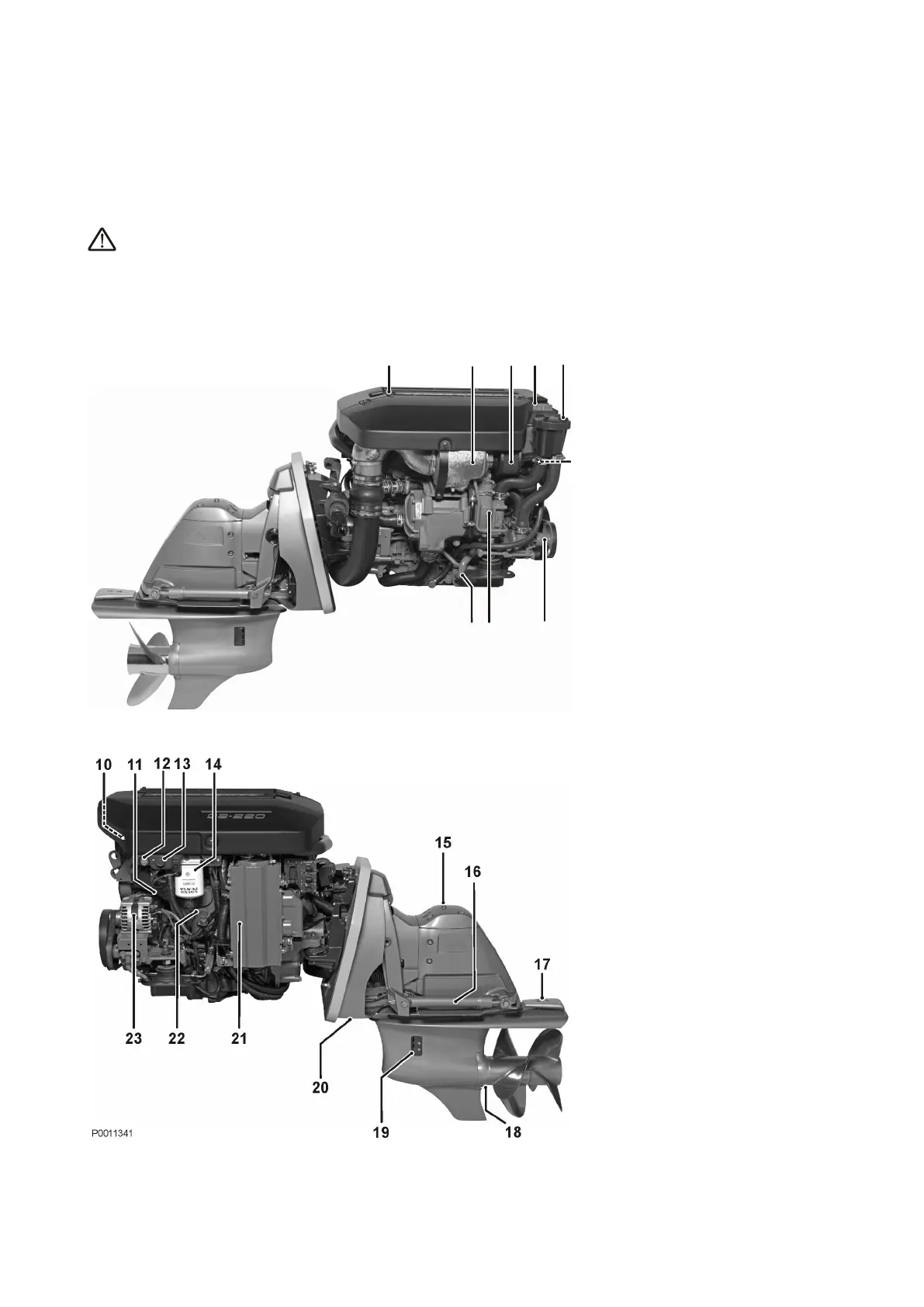

D3 with SX/DPS sterndrive
2
3
5
6
8
7
9
4
1
P0011340
1 Oil filler cap, engine
2 Turbo
3 Air Filter
4 Coolant filler cap
5 Seawater filter
6 Crankcase ventilation
7 Seawater Pump
8 Charge air cooler
9 Oil cooler
10 Relays
11 Oil filter
12 Auxiliary stop
13 Fuel feed
14 Fuel Filter
15 Oil dipstick, drive
16 Trim cylinder
17 Sacrificial Anode
18 Oil draining (behind propeller)
19 Seawater intake
20 Sacrificial Anode
21 Heat exchanger
22 Oil dipstick, engine
23 Alternator
