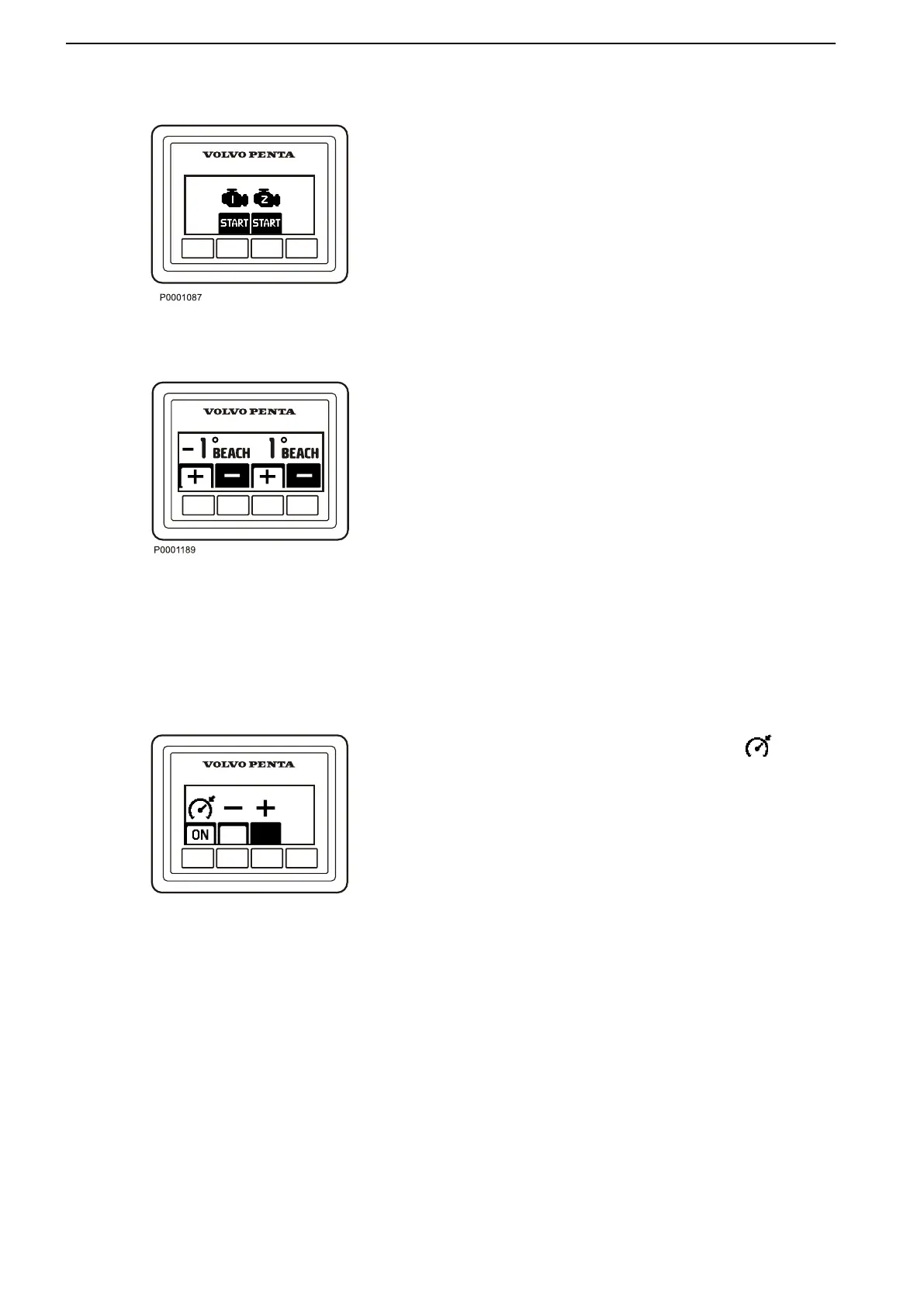

Start/Stop Panel
The start/stop panel is used for starting and stopping
the engine frpm other stations than the main station.
To start the engine it is necessary for the start key at
the main station to be in the ”I” operating position.
Read the starting instructions in chapter Start-
ing page 44 and Engine Shutdown page 51 to
ensure you use the correct start procedure.
Power Trim panel
The Power Trim panel allows you to adjust the angle
of the drive with respect to the transom.
For twin engine installations, the control panel can be
used to make individual or simultaneous adjustments
to the drives.
By trimming out the drive away from the transom, the
bow
will be ”raised” in relation to the horizontal axis and
trimming in the drive will ”lower” the bow of the boat
+ Will trim the drive away from the transom, the bow
will be ”raised” in relation to the horizontal axis.
– Will trim the drive away towards the transom, ”lower”
the bow of the boat.
For further information on Power Trim refer to Instru-
ments and Controls page 31.
Cruise Control
Switch on cruise control by pressing the
button.
Make fine adjustments to the locked engine speed by
pressing the + or – buttons to increase or reduce it.
