Adjusting the friction brake
The control lever is fitted with a friction brake that can
be adjusted to apply more or less resistance to lever
movement. Adjust the friction brake by turning the
screw (control A), or by twisting the lever (control B).
Turn clockwise (+) for stiffer lever movement, and
counterclockwise (–) for easier movement.

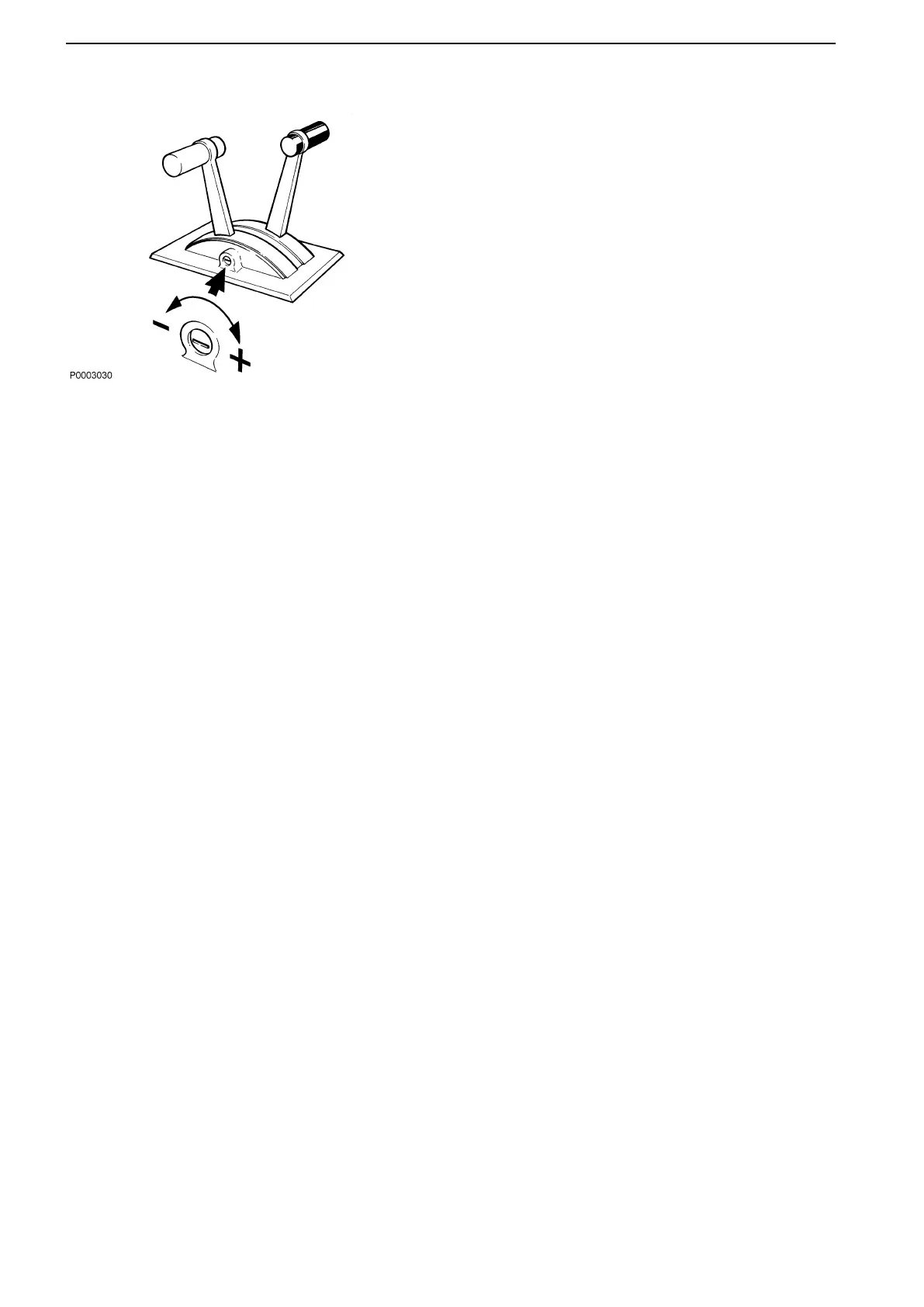

Control A
Instruments and Controls
24 47713336 03-2021 © AB VOLVO PENTA
