Adjusting the friction brake
The control lever has a friction brake that can be
adjusted for lighter or stiffer lever movement. Resist-
ance in click mode can also be adjusted.
1 Switch off the engine.
2

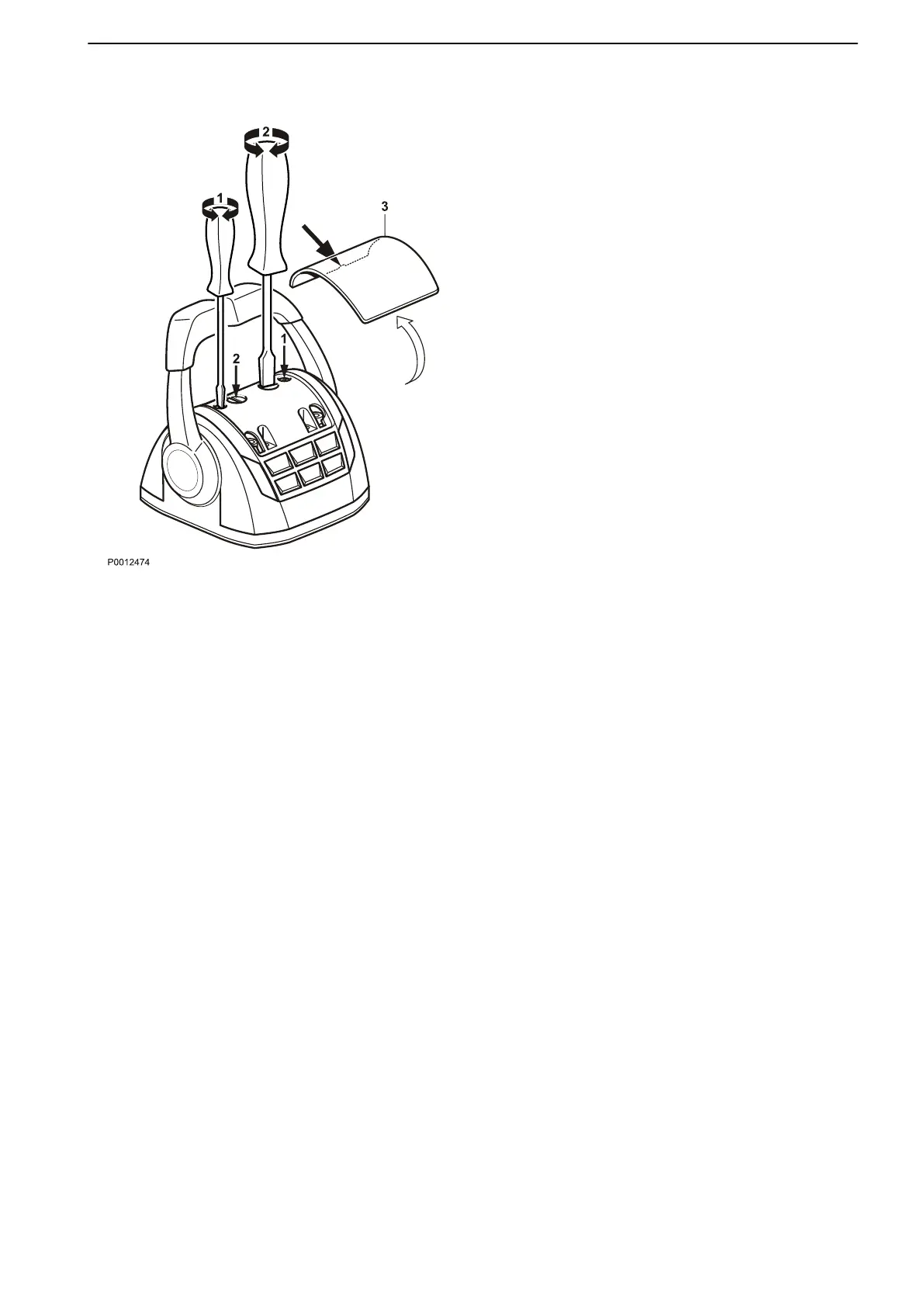

Remove the cover (3).
3 Adjust the friction brake (1) and/or click mode (2) by
turning the screw clockwise for stiffer lever move-
ment, and counterclockwise for lighter lever move-
ment.
4 Replace the cover.
Instruments and Controls
47702095 04-2011 33
