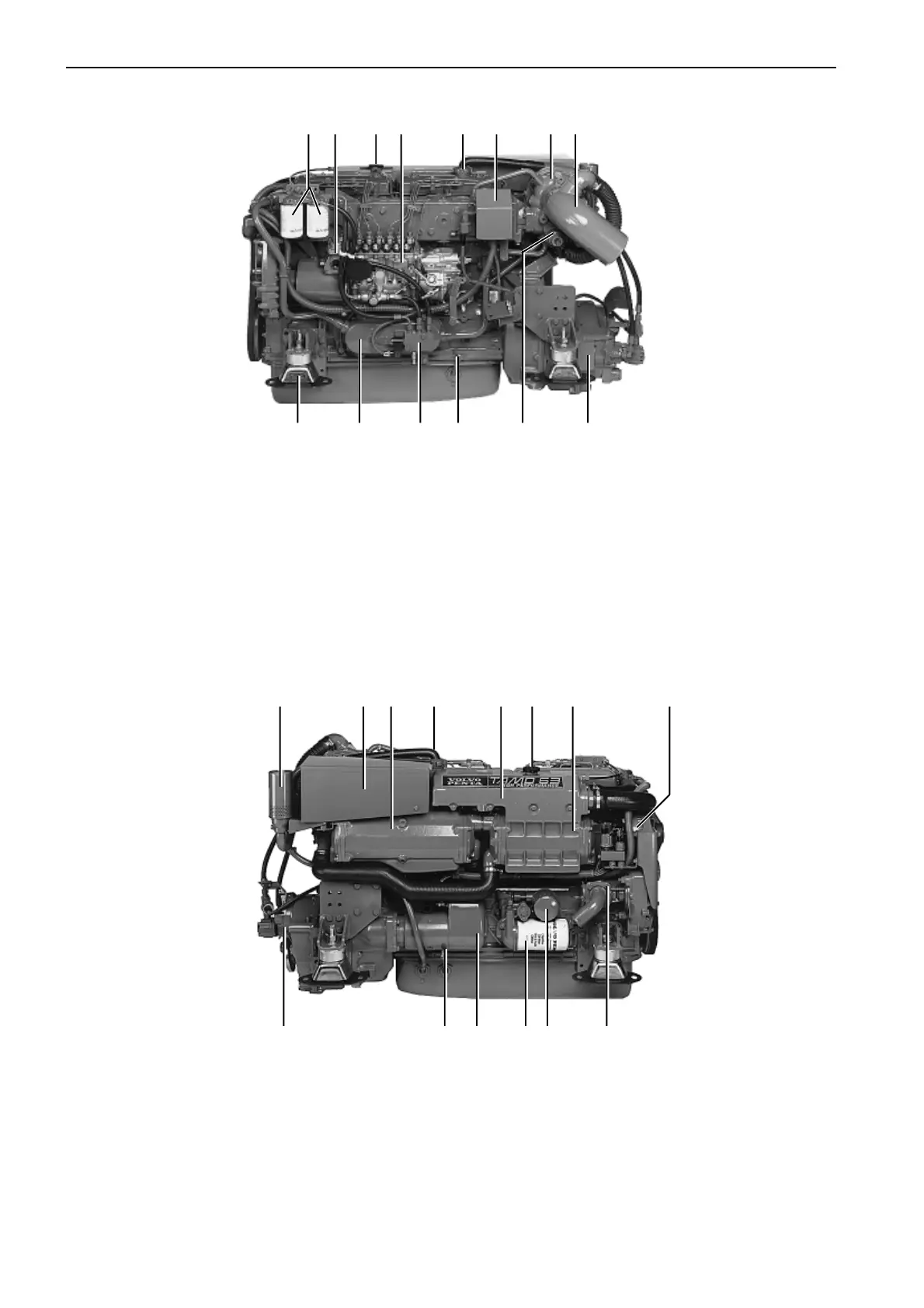

Design and function
1 Fuel filter, fine
2 Smoke limiter
3 Coolant filler cap
4 Injection pump
5 Oil filler cap
6 Junction box with circuit breakers
7 Turbocharger
8 Water cooled exhaust riser (extra equipment)
9 Reverse gear, MPM IRM 220A-1
10 TAMD63P-A: Wastegate valve (by-pass valve)
11 Dipstick, engine
12 Solenoid valve (fuel shut-off valve) for engine
stopping
13 Oil cooler, engine
14 Flexible engine mounting (extra equipment)
TAMD63L-A, TAMD63P-A
1 Filter for crankcase breather
2 Air filter
3 Aftercooler
3 Relay for electric starting heater
4 Oil filler cap
5 Expansion tank
6 Coolant filler cap
7 Heat exchanger
8 Alternator
9 Sea water pump
10 By-pass filter for lubrication oil
11 Lubrication oil filter, engine
12 Start motor
13 Dipstick, engine
14 Dipstick, reverse gear
12 34 5 6 78
14 13 12 11 10 9
123
4
5
76
8
14 13 12 911 10
