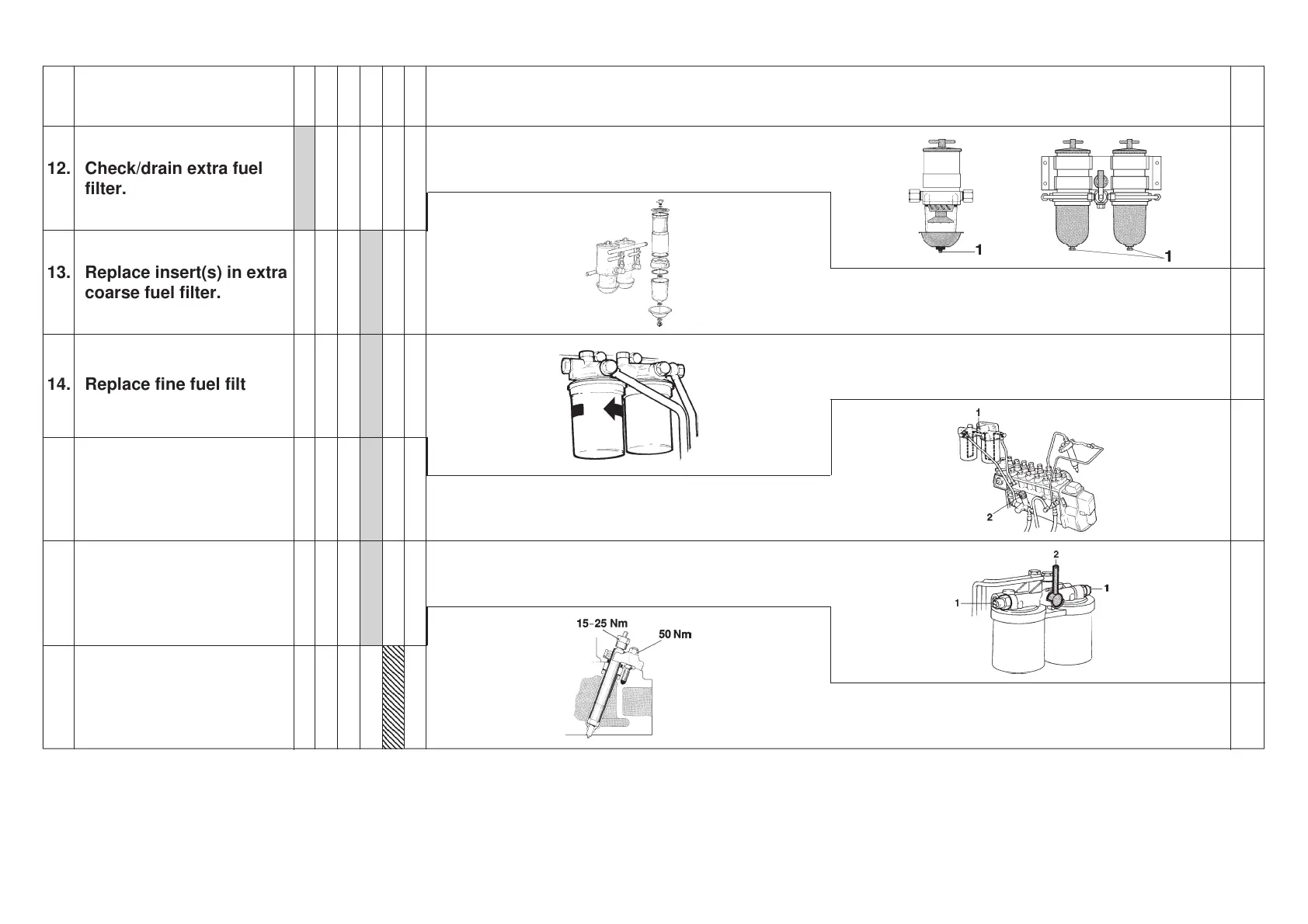

12. Check/drain extra fuel
filter.
13. Replace insert(s) in extra
coarse fuel filter.
14. Replace fine fuel filters.
15. Vent fuel system.
16. Replace adjustable fuel
filters.
(For TAMD71 auxiliary engine)
17. Have authorized service
personnel check injec-
tors.
A few hours after stopping engine: Drain off water or contaminants through cock/
plug (1).
53
53
54
54
54
55
Close the fuel cocks at the tank before dismantling the single filter or replacing
the inserts of the double filter with the engine off. See also instructions on page
53.
Screw on new filters by hand. Tighten by 1/2 turn once gasket is tight. Cleanli-
ness! The fuel in the system must not become contaminated. Vent system – see
point 15 below.
Open vent screw (1). Pump with hand pump (2) until fuel containing no air flows
out. Close screw while fuel is flowing out. Then pump a further 10–20 times.
Check for leaks.
Lever (2) on right – replace left filter. Lever up – vent left filter. Venting nipple (1).
Replace the right side filter in the same way. For filter installation refer to point 14
above.
Hand in injectors to authorized service dealer (or replace with adjusted injectors).
Tightening torques: Injectors 50 Nm (5 kpm/37 lbf.ft.), pressure pipes 15–25 Nm,
(1.5–2.5 kpm/11.1–18.5 lbf.ft.). NOTE! Pressure pipes on TAMD63, TAMD73
and TAMD74 must NOT be bent. Replace damaged pressure pipes.
50 Hrs
250 Hrs
500 Hrs
1000 Hrs
2000 Hrs
12 months
No. Operation Instructions Info.
pge.
