TAMD73P-A
Cable color
BL = Blue
BN = Brown
GN = Green
OR = Orange
P = Pink
R = Red
SB = Black
W = White
Y = Yellow
Cable areas = 0.75 mm
2
.
Multiple control positions – Single or dual lever
controls (single installation)
Single control position – Single or dual lever
control (single installation)

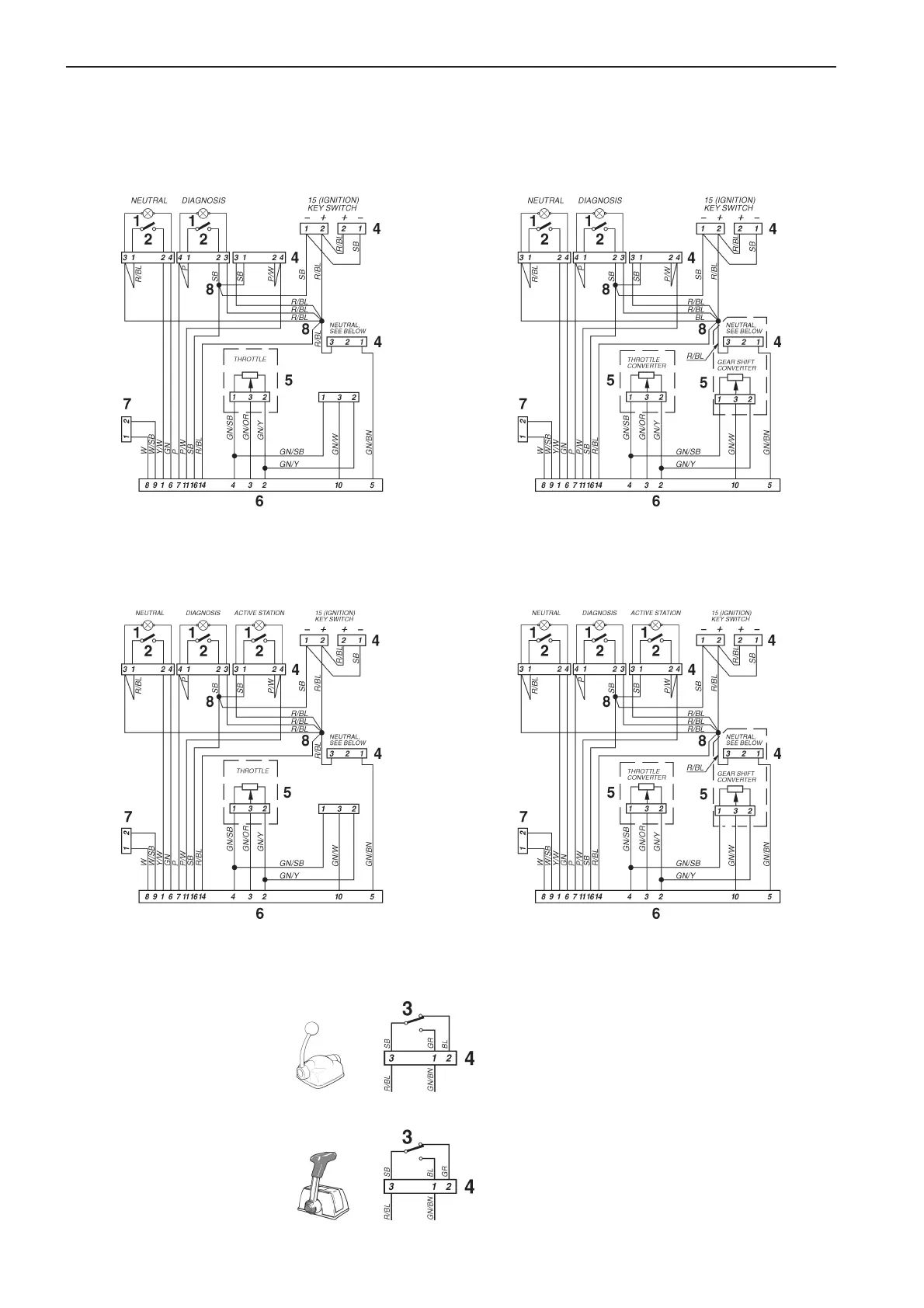

Location diagram (all wiring diagrams)
1. Indicator light
2. 1-pin switch
3. Position limiter switch
4. Connector
5. Potentiometer
6. 16-pin connector
7. 2-pin connector, data link connector (DLC)
8. Joint splice
Single control position – Single or dual lever
control with control adapters (single installation)
Multiple control positions – Single or dual lever
controls with control adapters (single installation)
VP controls:
Late model
NEUTRAL
Early model
NEUTRAL
