Technical data: TD/TAD420VE, TAD620VE, TAD650VE, TAD660VE
24
Group 20
1. Fuel tank.
Max height above fuel pump. 2 meter (6.5 ft)
Max suction height to fuel pump. 1.5 meter (4.9 ft)
2. Fuel line (to pump).
Inside diameter. min 12 mm (0.47")
1)
3. Fuel pump
4. Line to fuel filter.
Inside diameter. min 12 mm (0.47")
1)
5. Fuel filter
6. Fuel line (to fuel duct).
7. Injection pumps, 420/520 (4) 620/720/721 (6)
8. Delivery pipe to injector.
9. Injector
10. Fuel return line
11. Overflow valve
2)
12. Return fuel line to fuel tank.
Inside diameter, min 10 mm (0.39")
1)
13. Fuel pipes, minimum distance 300 mm (11.8")
14. Pre-filter for water separating
15. Hand pump (accessory)
1)
Depending on length of hose.
2)
Used for bleeding.

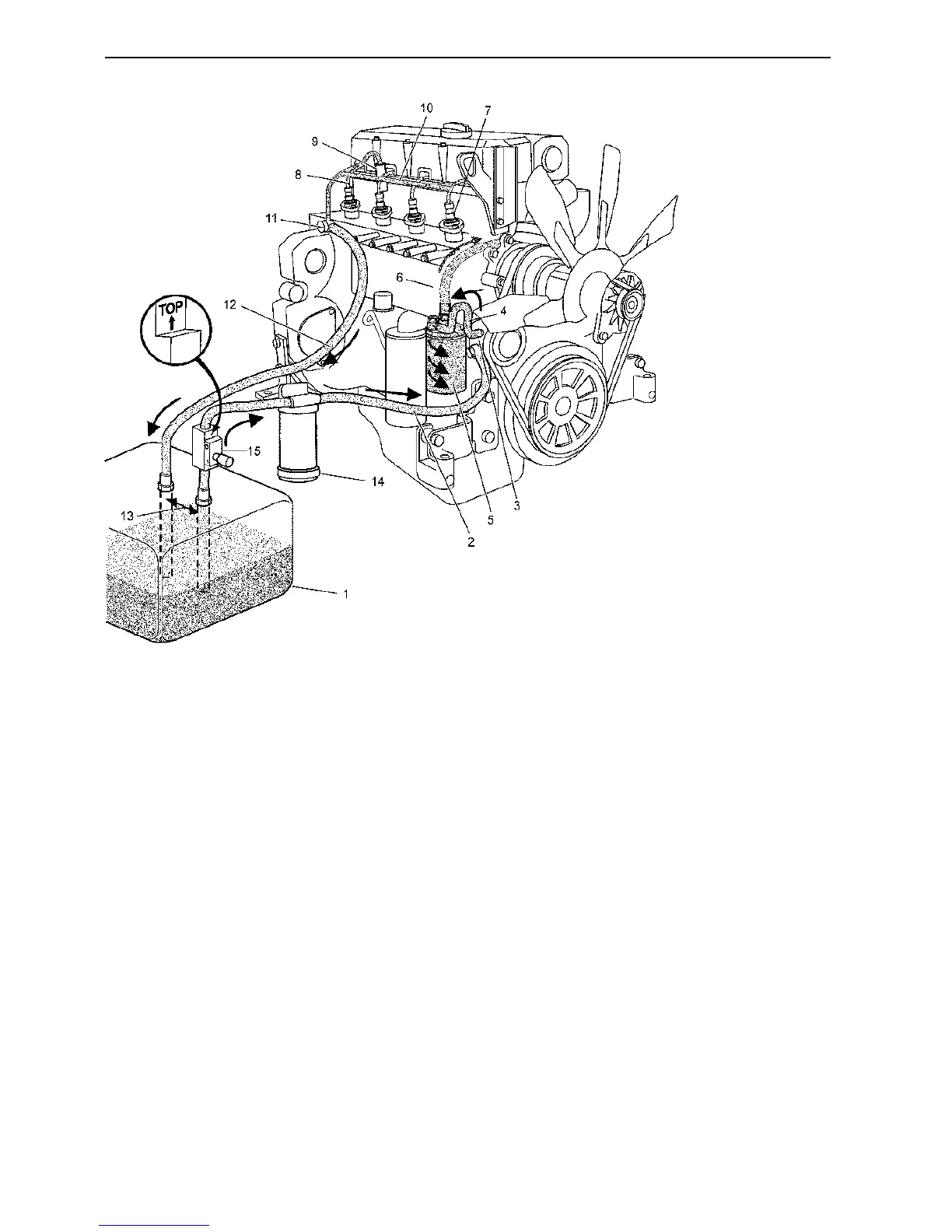

Fuel system (420, 620)
