Volvo 9700 - Gauges and display

Instrument cluster
Gauges and display

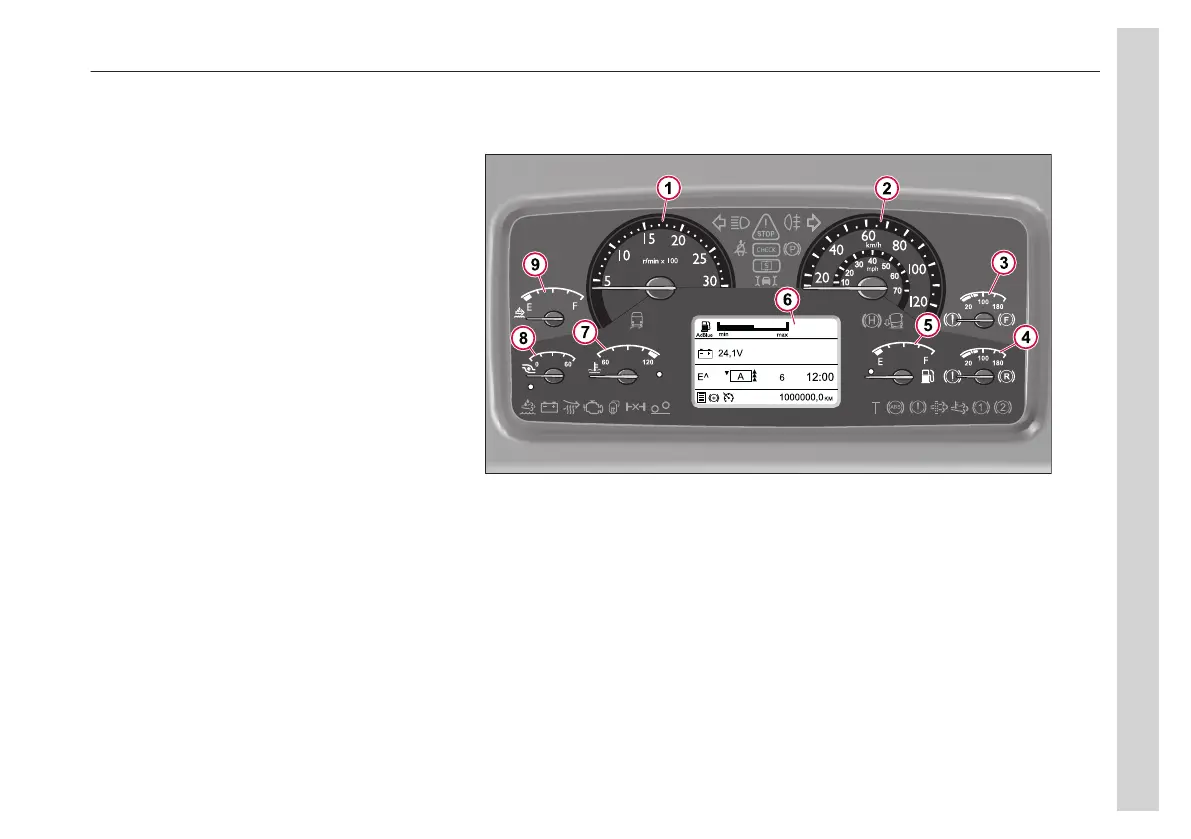

The instrument cluster contains different gauges.
1 Tachometer
2 Speedometer
3 Air pressure gauge for brakes
4 Air pressure gauges for brakes
5 Fuel gauge
6 Driver information display
7 Engine coolant temperature gauge
8 Turbo pressure gauge
9 Diesel exhaust fluid gauge
04
Instruments and controls
31
