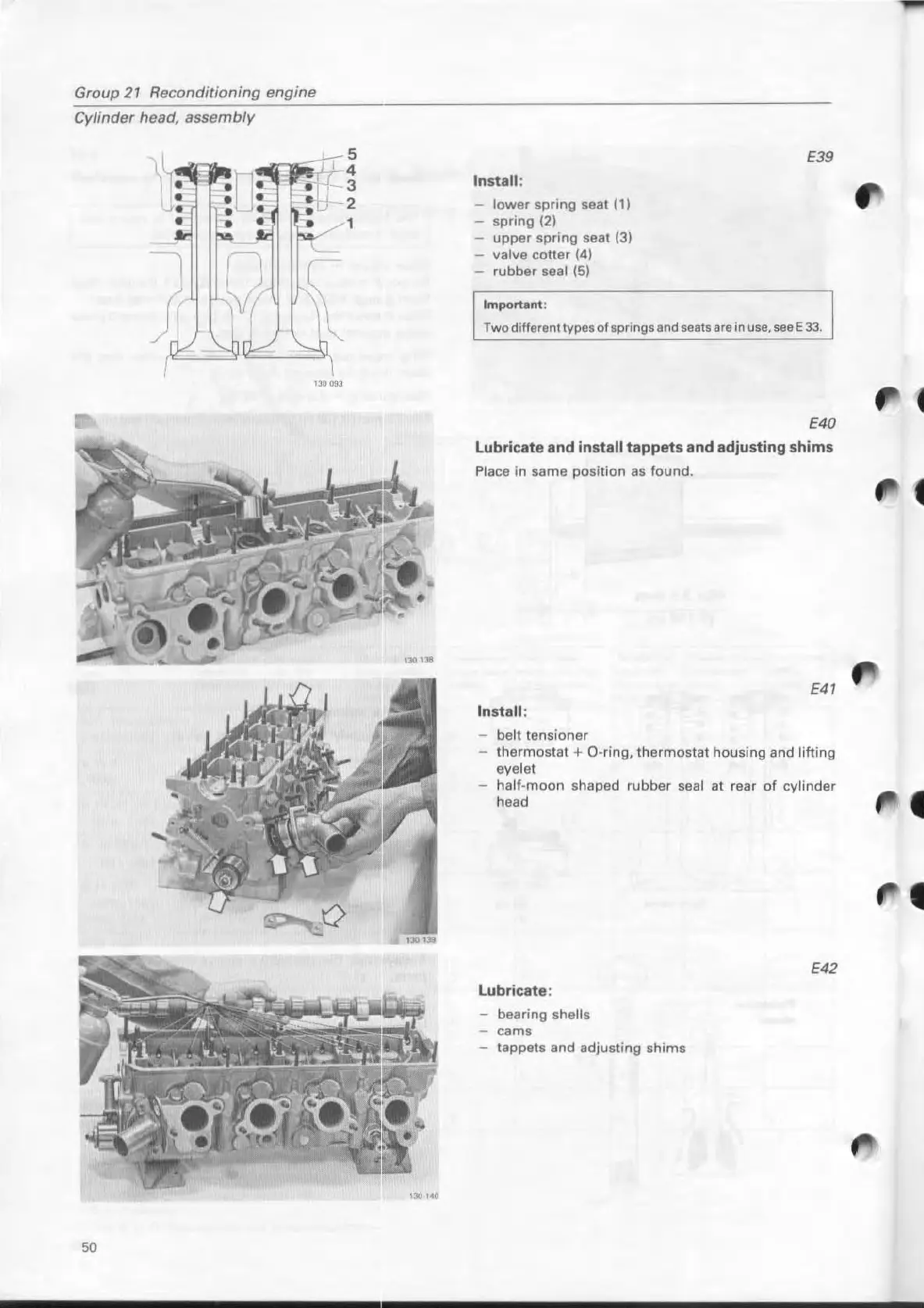

Volvo B 21 - Tappet and Shim Installation

Group 21 Reconditioning engine
Cylinder head, assembly
50
5
~ 4
° r(- 3
:- cr 2
::o 1
'---
~
"-
,.~
130 I~
Install:
lower spring seat (1)
spring
(21
upper spring seat (3)
valve cotter (4)
rubber seal (5)
Important :
E39
Two different types of springs and seats are in use, see E 33.
E40
Lubricate and install tappets and adjusting shims
Place in same position as found.
E41
Install:
belt tensioner
thermostat
+ Q-ring, thermostat housing and lifting
eyelet
half-moon
shaped rubber seal at rear of cylinder
head
Lubricate:
bearing shelts
ca ms
tappats and adjusting shims
E42
