Group 21 Reconditioning engine
Cylinder head, assembly
E43

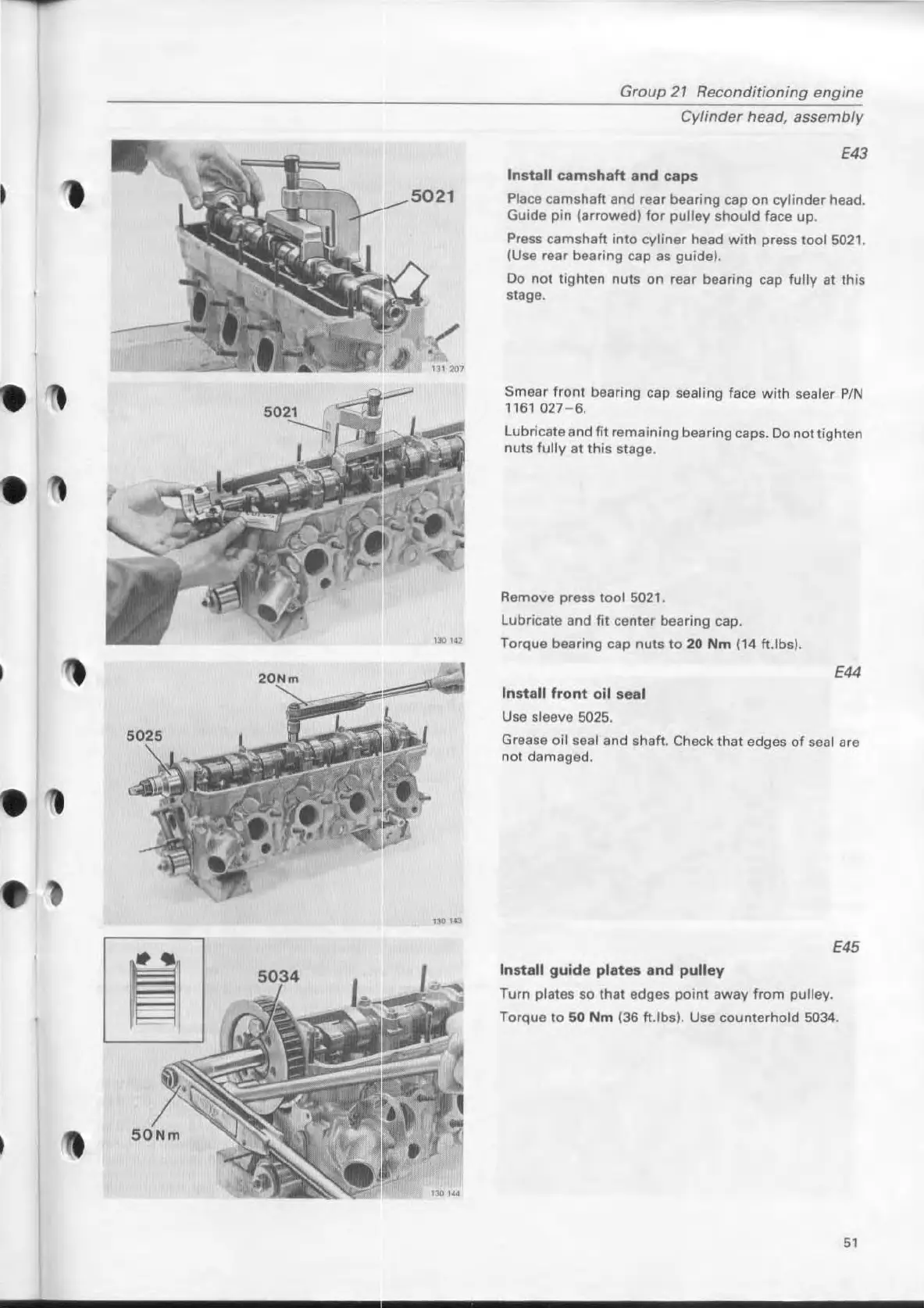

lostall camshaft and caps
Place camshaft and rear bearing cap on cylinder heed.
Guide pin (srrowad) for pullev should face up .
Press camshaft into cyliner head with press tool 5021 .
(Usa rear bearing cap as guide) ,
Do not tighten nuts on rear bearing cap fully at th is
stage .
Smear front bearing cap sealing face with sea ler PIN
1161027 - 6.
Lubricate and fit remaining bearing caps. Do not tighten
nuts fully at this stage.
Remove press tool 5021.
lubricate and fit center bearing cap.
Torque bearing cap nuts to 20 Nm (14 tt.rbs).
Install front oil seal
Usa sleeve 5025.
E44
Grease oil seal and shaft. Check that edges of seal are
not damaged.
E45
Install guide plates and pulley
Turn prates so that edges point away from pulley .
Torque to SO Nm (36 fUbs) . Use counterhold 5034.
