Component description Group 30: Electrical system
12

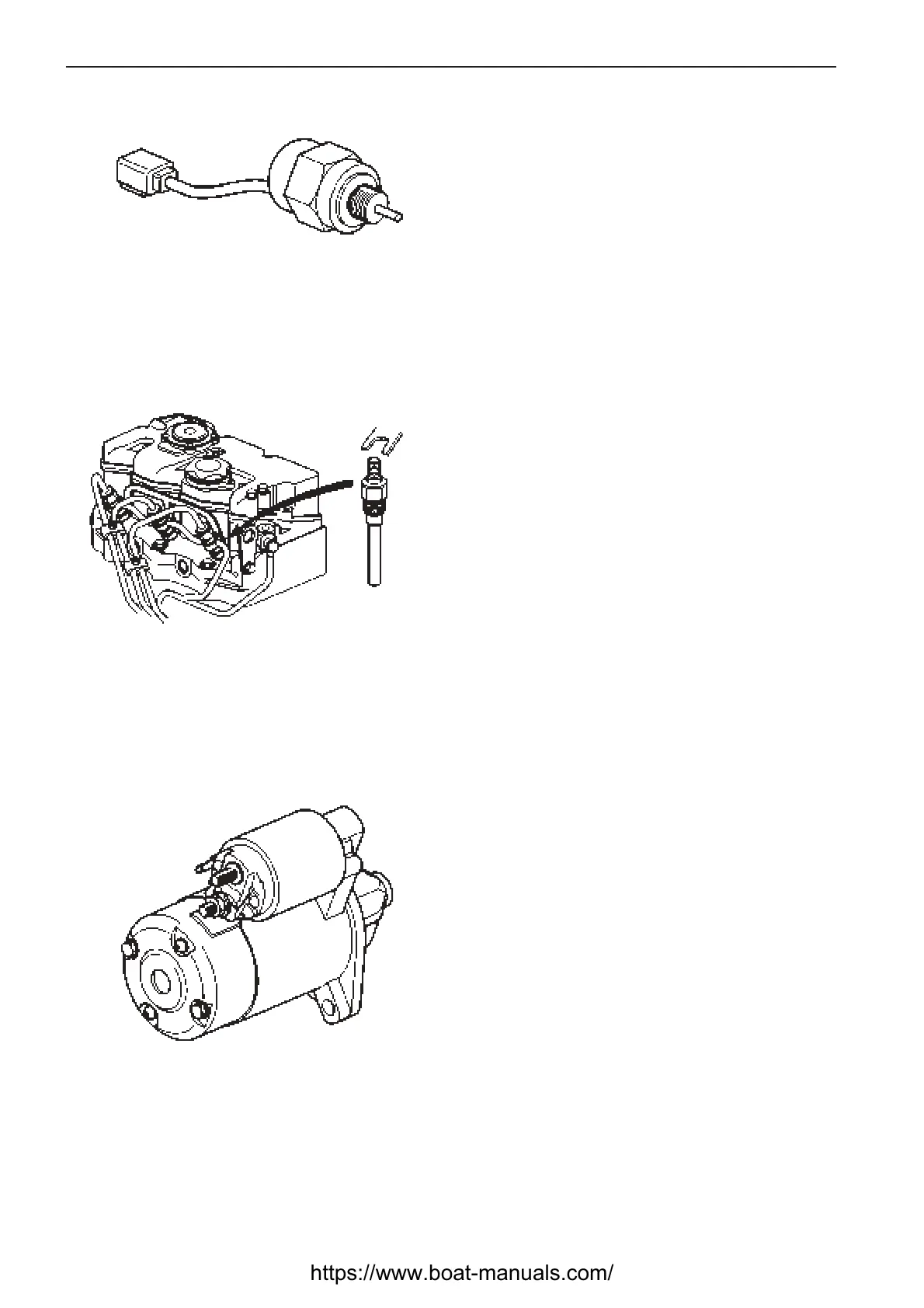

Stop solenoid
The stop solenoid is an electromagnetic relay. When
the stop button is pushed the stop solenoid is activat-
ed by the MDI. The stop solenoid shuts off the fuel
supply at the injection pump.
Starter motor
The starter motor is a DC series motor. The starter
pinion is operated by a control solenoid and can be
slid axially on the rotorshaft.
The starter motor has a reduction gear, which makes
it possible to obtain greater torque.
The starter motor power depends on the engine it is
fitted to, please refer to the table below.
D1-13, D1-20 0.8 kW
D1-30 1.1 kW
D2-40 1.4 kW
D2-55, D2-27 2.0kW
Glow plugs
One glowplug per cylinder is installed in the cylinder
head. All glowplugs are electrically connected by a
conductor rail. The glowplugs heat the air mixture
during starting.
