Hydraulic attachment bracket
Attachment quick coupler
(optional equipment, not for EC15E)
Disconnecting & connecting a bucket
WARNING
Risk of crushing!
Attachments that move unexpectedly can cause
injuries.
Make sure people stay out of the working area when
connecting or disconnecting attachments.
1 Place the machine on firm and level ground.
2 Lower the dozer blade and the boom to the
ground.
3 Curl in the bucket completely towards the dipper
arm (to release the locking mechanism).

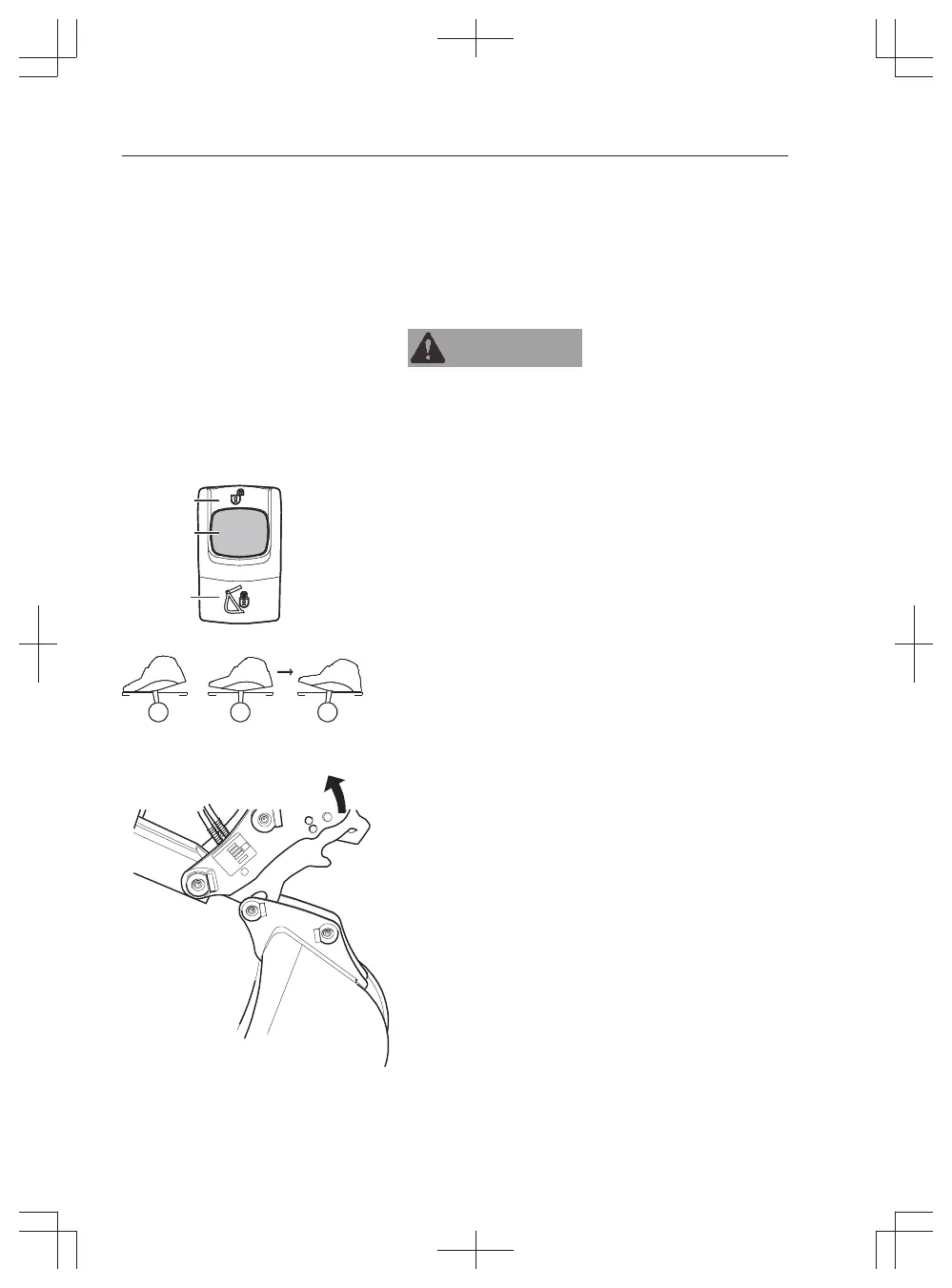

4 To start the process of opening the Attachment
Quick Coupler:
Press down the lower end of the switch (A) and
release.
→ The switch moves back to position
Neutral
(B).
Now and during the whole process:
→ The symbol of lower end of switch (A)
illuminates.
→ a beep sound arises.
NOTE!
If undesired action, the process can be cancelled
at this point by pressing the lower end of the
switch (A) again.
5 To open the Attachment Quick Coupler:
Unlock and press down the red button (C1) and
the upper end of the switch (C2):
→ The Attachment Quick Coupler opens and the
switch remains in position C.
6 Lower the bucket and curl out to lift up the
attachment quick coupler from the bucket.
7 Place the bucket flat on the ground and unhook
it.
