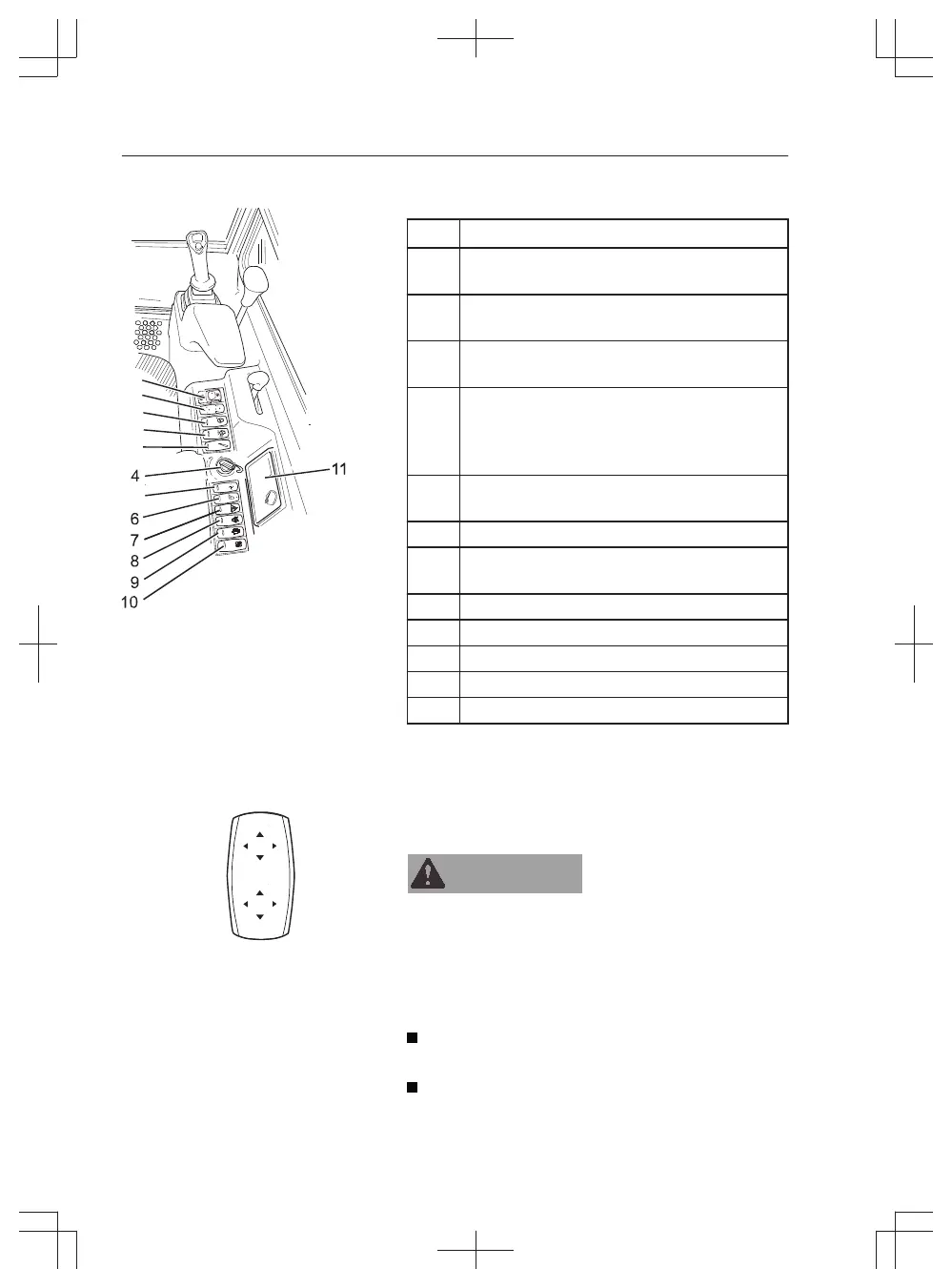

Instrument panel, right
1a
(a)
ISO / SAE selector switch (optional)
1b
(a)
Attachment Quick Coupler switch (if
installed, not for EC15E)
2 Switch for automatic engine speed control
— auto idle (optional, not for EC15E)
3a
(b)
Switch for automatic shutdown (optional,
not for EC15E)
3b
(b)
Switch for attachment (optional, if not
assigned
here, you can use the front button
on the right lever, read chapter
Controls
on
page
45
)
4 Ignition switch (optional with Immobiliser
Antenna System)
5 Hydraulic lock switch (optional)
6 Switch for working lights on cab (optional)
and boom
7 Switch for variable tracks (not for EC15E)
8 Switch for rotating beacon (optional)
9 Switch for windscreen washer
10 Switch for fan
11 Display unit
a) alternatives, same position
b)alternatives, same position
1a. ISO / SAE selector switch
(optional)
WARNING
Risk of serious accidents.
Unfamiliar control patterns could cause confusion
and accidents resulting in serious injury.
Use extreme caution when using the control levers
after changing the control pattern and until you
become familiar with the new pattern.
Press upper end of switch: ISO control pattern is
on.
Press lower end of switch: SAE control pattern is
on.
