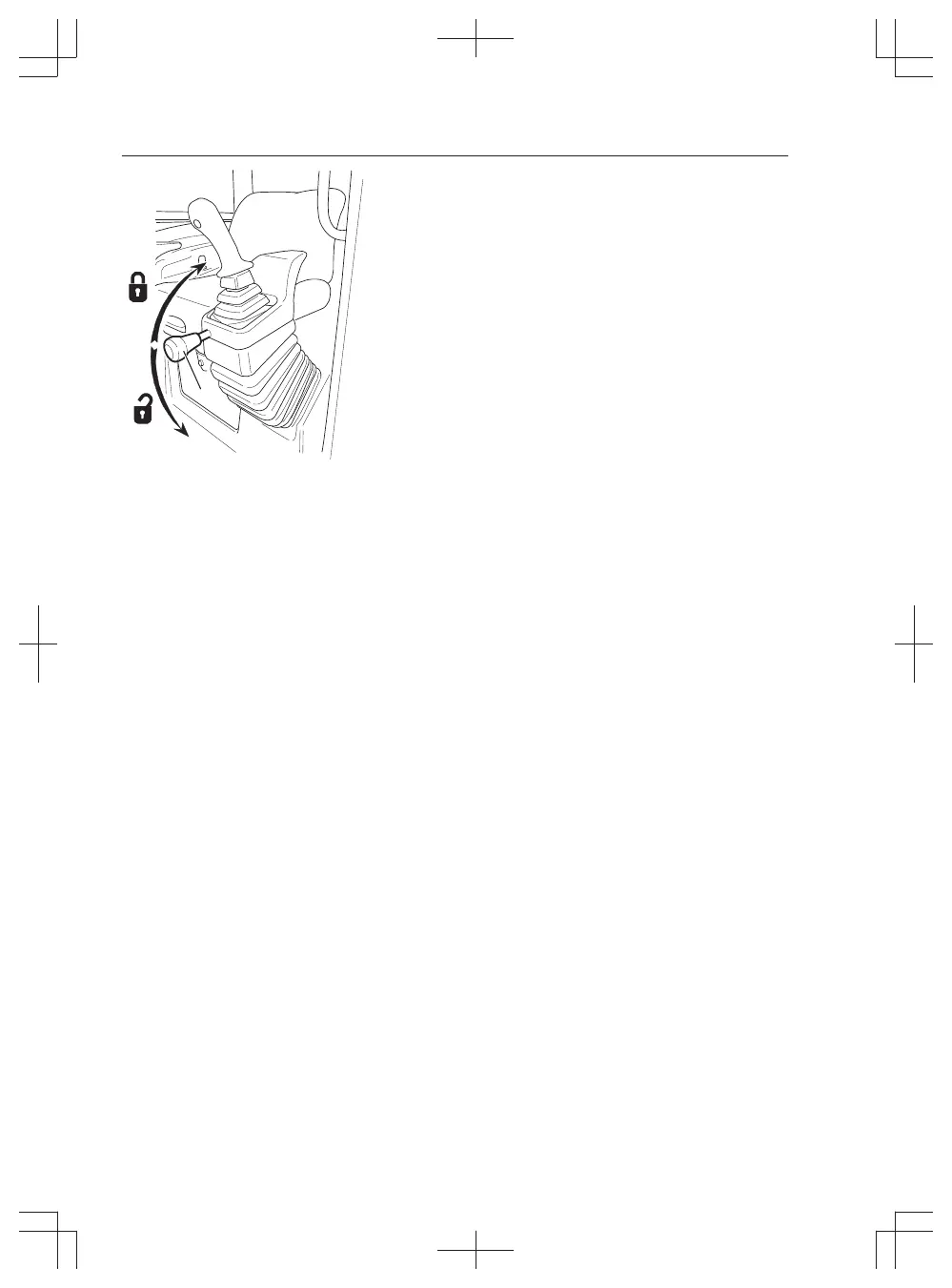

2 Shift control lockout lever (4) to position (B). The
control levers for working and travel hydraulics
are unlocked (movement possible).
3 The control levers (1) and (6) (see page
45
) can
be used to lower the attachment.
NOTE!
If lowering of the attachment is not possible
because the accumulator is depressurized, restart
the engine to pressurize the accumulator.
Relieving residual pressure from the
accumulator
1 Turn the ignition key to running position (1).
2 Move the control lockout lever down to unlock
the system.
3 Shift the rollers on the joysticks to the right and
to the left.
4 Then move the joysticks in all directions a couple
of times to release all residual pressure.
NOTE!
Before lifting the control lockout lever to position A,
lower the attachment to the ground.
