Operating steps of optional attachment

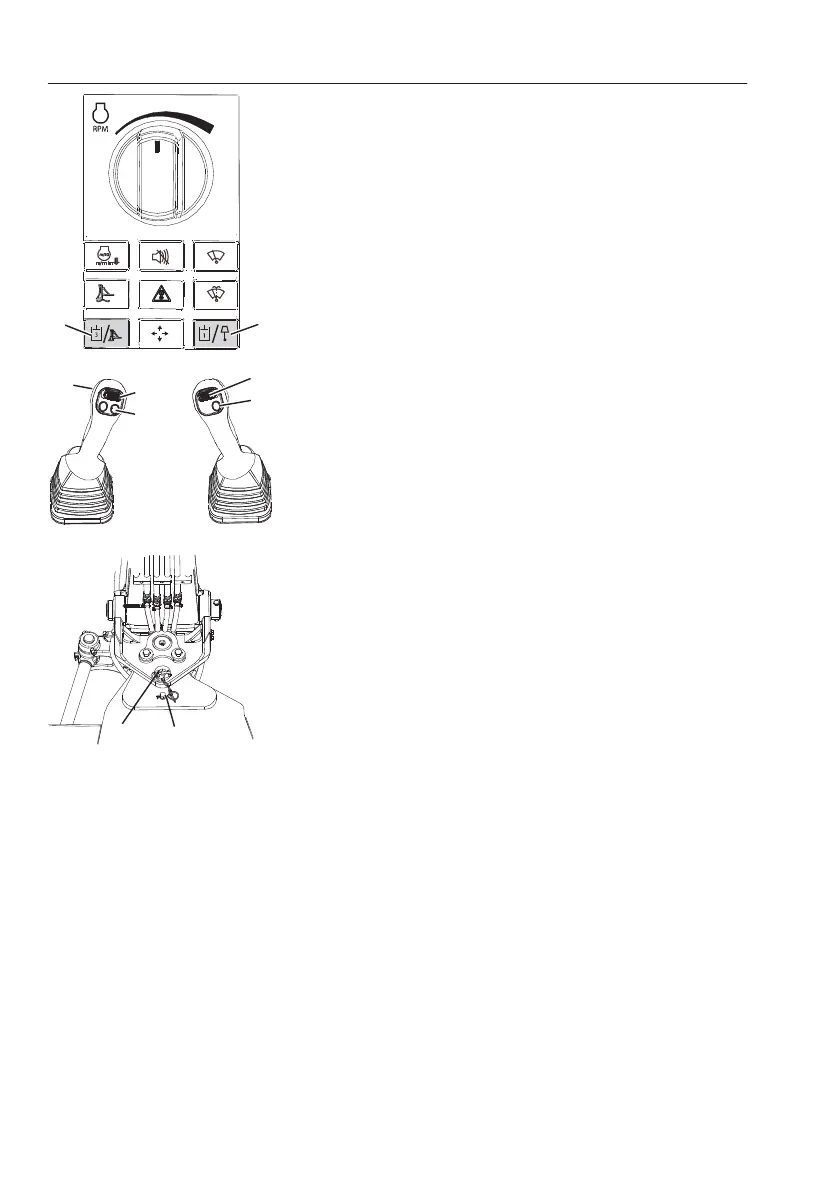

■ Step 1: Function activation (A) or (B)
Activating button (A) for dozer blade / X3
Activating button (B) for boom-swing / X1
■ Step 2: Function selection
(A) → Selector switch (1) for dozer blade or X3
(B) → Selector switch (3) for boom-swing or X1
NOTE!
If angle dozer blade is equipped and switch (1) is
assigned to dozer blade: select dozer blade up/
down or angle using switch (5).
NOTE!
Selected function can be checked by function
indicator on I-ECU. See page
38 .
■ Step 3 : Operation
(1) → Operating switch (2) for dozer blade or X3
(3) → Operating switch (4) for boom-swing or X1
NOTE!
For operating boom-swing function, remove pin (C)
with clip (D) near the boom support mounting pin.
If not using boom-swing function, pin and clip
should be put into former place.
