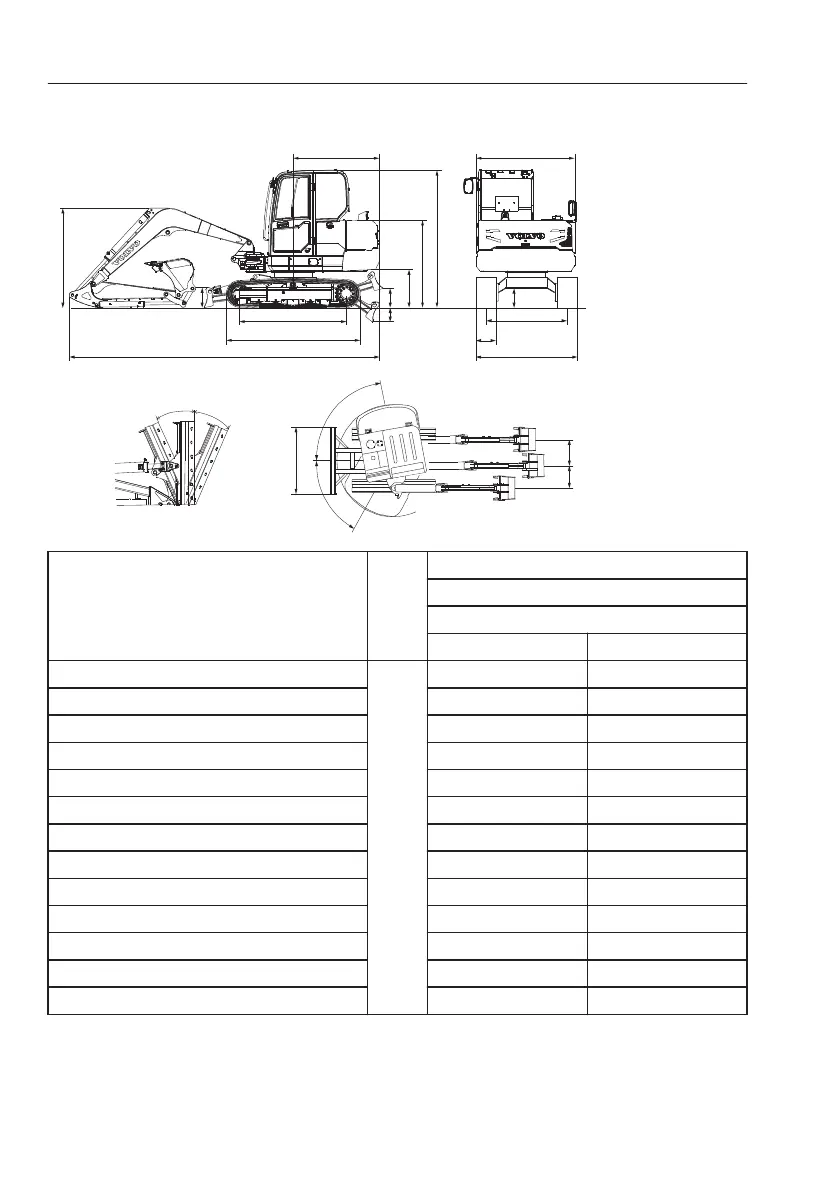

Volvo EC60E - Dimensions

Dimensions
AD
M
B
N
U
T
R
S
L
H J
G I
K
C
O
E
F
P
Q
V1176367
V
W
Description Unit
Boom
3.0 m (9' 10")
Dipper arm
1.6 m (5' 3") 1.9 m (6' 3")
A. Overall width of superstructure
mm
(ft-in)
1845 (6' 1") 1845 (6' 1")
B. Overall width 1920 (6' 4") 1920 (6' 4")
C. Overall height of cab ** 2584 (8' 6") 2584 (8' 6")
D. Tail swing radius 1650 (5' 5") 1650 (5' 5")
E. Overall height of engine hood ** 1630 (5' 4") 1630 (5' 4")
F. Counterweight clearance * 671 (2' 2") 671 (2' 2")
G. Tumbler length 1990 (6' 6") 1990 (6' 6")
H. Track length 2500 (8' 2") 2500 (8' 2")
I. Track gauge 1520 (5' 0") 1520 (5' 0")
J. Shoe width 380 (1' 3") 380 (1' 3")
K. Minimum ground clearance * 350 (1' 2") 350 (1' 2")
L. Overall length 5800 (19' 0") 5865 (19' 3")
M. Overall height of boom 1854 (6' 1") 1978 (6' 6")
320
Specifications
Dimensions
