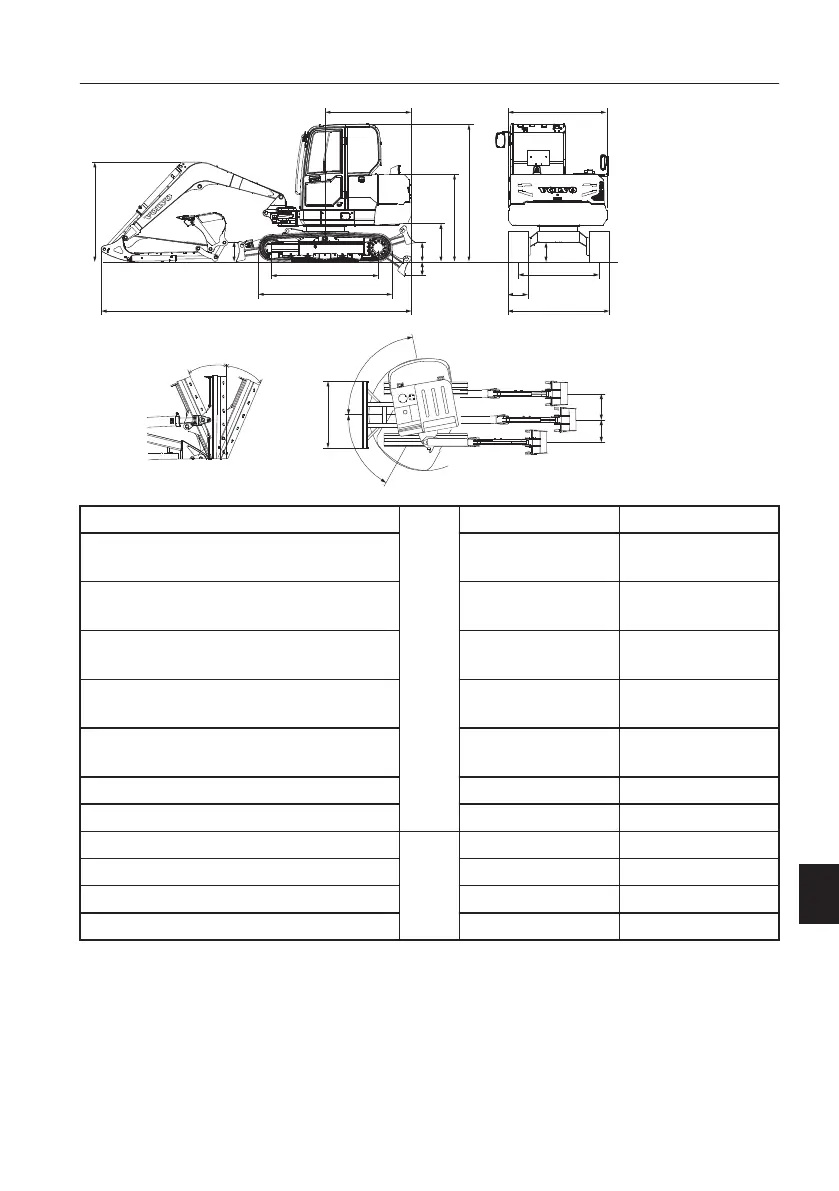

Volvo EC60E - Page 322

AD
M
B
N
U
T
R
S
L
H J
G I
K
C
O
E
F
P
Q
V1176367
V
W
N. Dozer blade, width
mm
(ft-in)
1920 (6' 4") 1920 (6' 4")
O. Dozer blade, height
O. Angle dozer blade, height
350 (1' 2")
397 (1’ 3”)
350 (1' 2")
397 (1’ 3”)
P. Standard dozer blade, lifting height
P. Angle dozer blade, lifting height
332 (1’ 1”)
339 (1’ 1”)
332 (1’ 1”)
339 (1’ 1”)
P'. Zero-offset (Longer) dozer blade,
lifting height
405 (1’ 3”) 405 (1’ 3”)
Q. Standard dozer blade, digging depth
Q. Angle dozer blade, digging depth
476 (1’ 6”)
682 (2’ 2”)
476 (1’ 6”)
682 (2’ 2”)
Q'. Zero-offset (longer) dozer blade,
digging depth
635 (2’ 2”) 635 (2’ 2”)
R. Boom swing distance, left 755 (2' 6") 755 (2' 6")
S. Boom swing distance, right 684 (2' 3") 684 (2' 3")
T. Boom swing angle, left
deg.
(°)
70 70
U. Boom swing angle, right 60 60
V. Angle dozer blade to left 25 25
W. Angle dozer blade to right 25 25
* Without shoe grouser
** Based on steel track
