1 Load hooking device on bucket or
attachment bracket
The lifting device whether mounted on a bucket or
other attachment must not be subjected to lateral
loads. The load must be applied longitudinally to the
hook.
Always ensure that the load lies within the marked
permissible lifting load of lifting device when
manoeuvring the arm and bucket.
Exceeding these limits can cause serious injury.
Remember that the operator is responsible in case
of an accident.
NOTE!
This represents the capacity of the hook and not the
rated load capacity of the machine which varies
according to ground conditions, reach, track
position and so on.
NOTE!
Only use lifting device recommended by Volvo in
order to avoid damage to the machine. Contact your
dealer for information regarding other lifting device.
NOTE!
Hole (A) and bar (B) are for boom lifting only. Do not
use other purpose such as machine lifting.
2 Load hooking device on connecting rod
Lifting device on connecting rod is designed to lift
the maximum load as the one described on catalog.

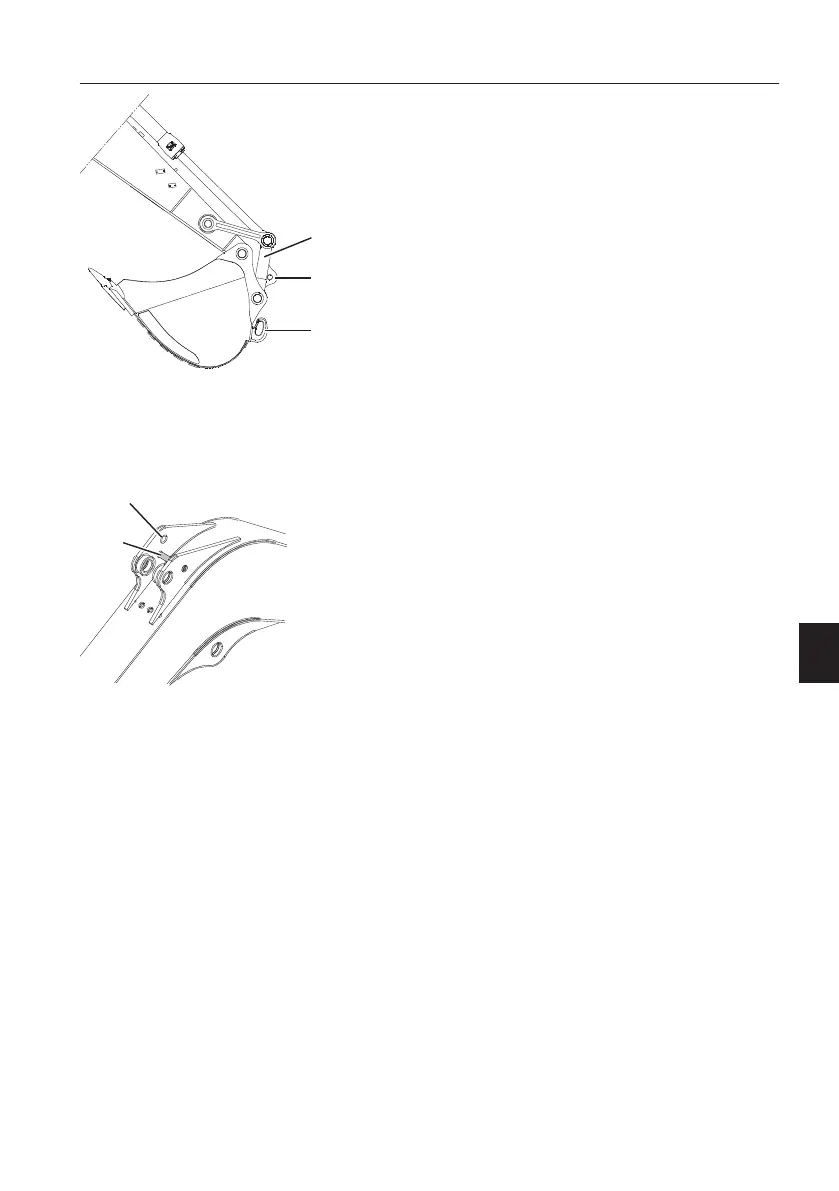

1 Connecting rod
2 Lifting device on connecting rod
3 Lifting device on bucket
A Hole for boom lifting
B Bar for boom lifting
Operating techniques
Lifting objects
225
