Volvo EC60E - Page 324

For North America
D
E
H
F
C
A
B
G
V1155517

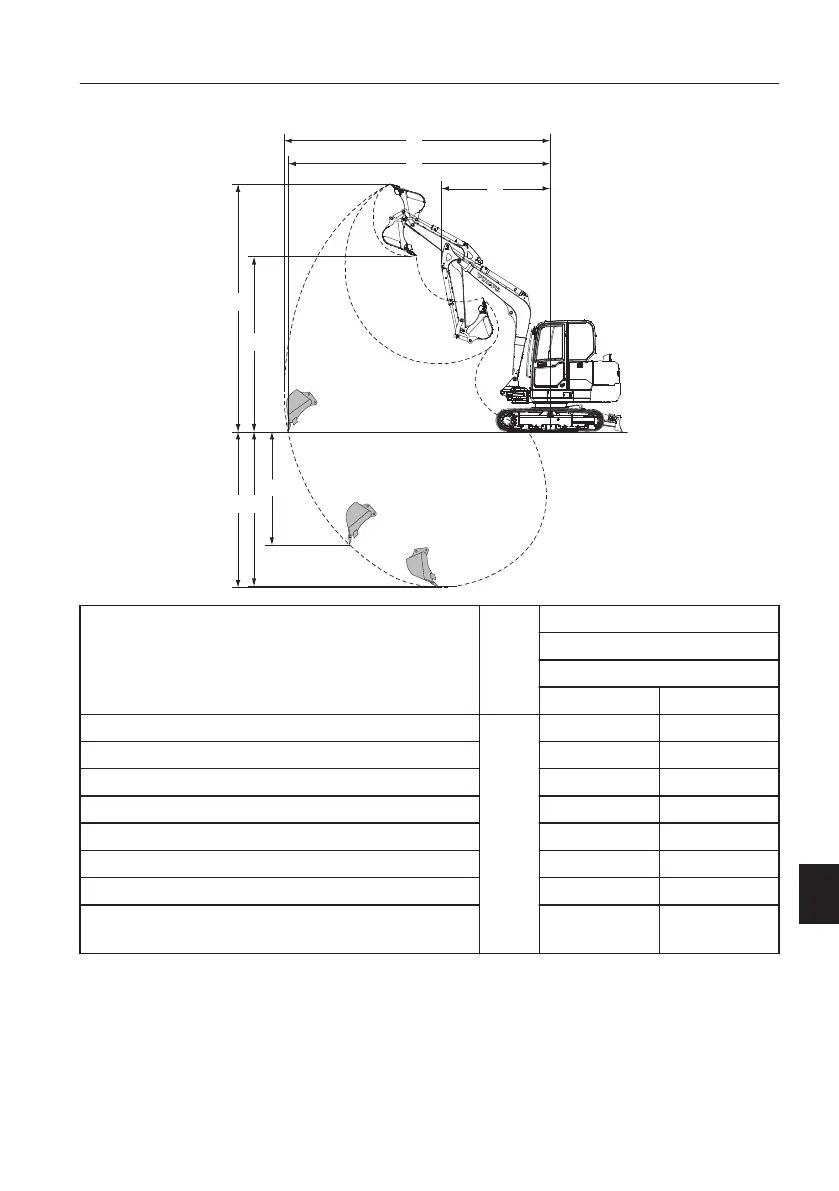

Description Unit
Boom
3.0 m (9' 10")
Dipper arm
1.6 m (5' 3") 1.9 m (6' 3")
A. Maximum digging reach
mm
(ft in)
6105 (20' 0") 6395 (21' 0")
B. Maximum digging reach on ground 5970 (19' 7") 6260 (20' 6")
C. Maximum digging depth 3695 (12' 1") 3995 (13' 1")
D. Maximum cutting height 5695 (18' 8") 5885 (19' 4")
E. Maximum dumping height 4150 (13' 7") 4340 (14' 3")
F. Maximum vertical wall digging depth 2625 (8' 7") 2900 (9' 6")
G. Minimum front swing radius 2465 (8' 1") 2470 (8' 1")
H. Maximum digging depth
(level the ground of 2.44 m (8'))
3295 (10' 10") 3640 (11' 11")
- Machine with direct fit bucket
Specifications
Working ranges 323
