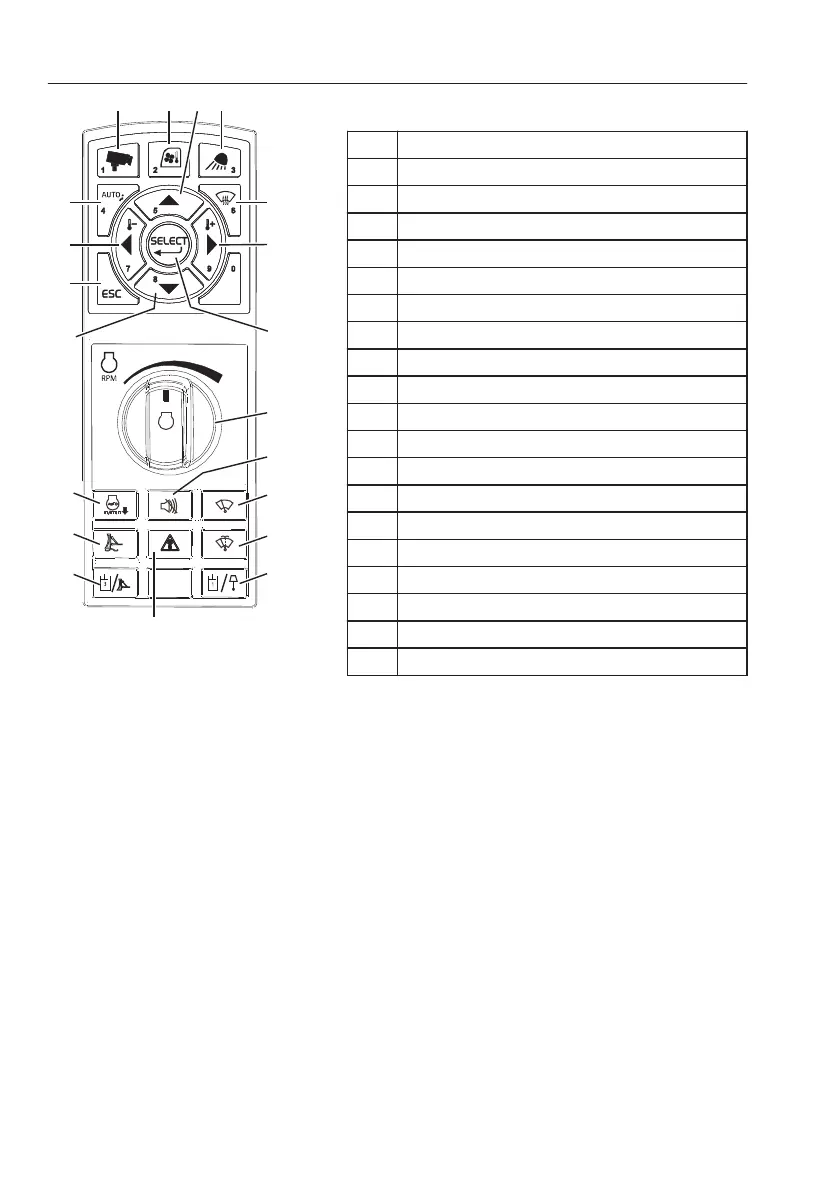

3 Keypad
1 Camera button
2 HVAC control button
3 Work lights control button
4 HVAC auto-mode select button
5 Arrow up button
6 Defroster select button
7 Arrow left button
8 Arrow down button
9 Arrow right button
10 ESC button
11 SELECT button
12 Engine speed control switch
13 Auto idle button
14 Travel alarm stop button
15 Windshield wiper button
16 Dozer blade floating button
17 Overload warning button
18 Washer button
19 X3/ Dozer blade activating button
20 X1/ boom swing activating button
1) Camera button (if installed)
This button is used to control the camera screen in
the I-ECU.
- A short press on the camera button shows the
camera view. For detailed information about the
camera control, see page
135
.
2) HVAC control button
This button is used to control the HVAC system.
See page
118
.
+
KW
V1157496
4
7
10
8
6
9
1 2 5 3
11
12
15
14
18
20
17
13
16
19
88
Instrument panels
