5 CCM (Climate Control Module)
CCM segment displays the status of the CCM (Climate Control
Module). This includes temperature setting, fan speed, air flow
direction, circulation, and air conditioning status. Refer to page
119 for more details.
6
6 I
n
n
d
d
i
i
c
ca
t
t
o
o
r
r
s
s
Indicator screen displays indicators as symbols that show users
important information easily and quickly. Indicators are divided
into three types; function indicator, warning indicator, and fixed
indicator.
N
O
O
T
T
E
E
!
!
Fixed indicators are always displayed on the right side.
- Indicators fill the space from left to right.
- An indicator that has higher priority is put on the left side of the
one that has lower priority.
- Indicators on both sides can extend their display area to the
other side if there is no indicator on the other side.
- When the whole area is filled and there are more indicators to
display, indicators keep replacing the others so that the user
can see all indicators.

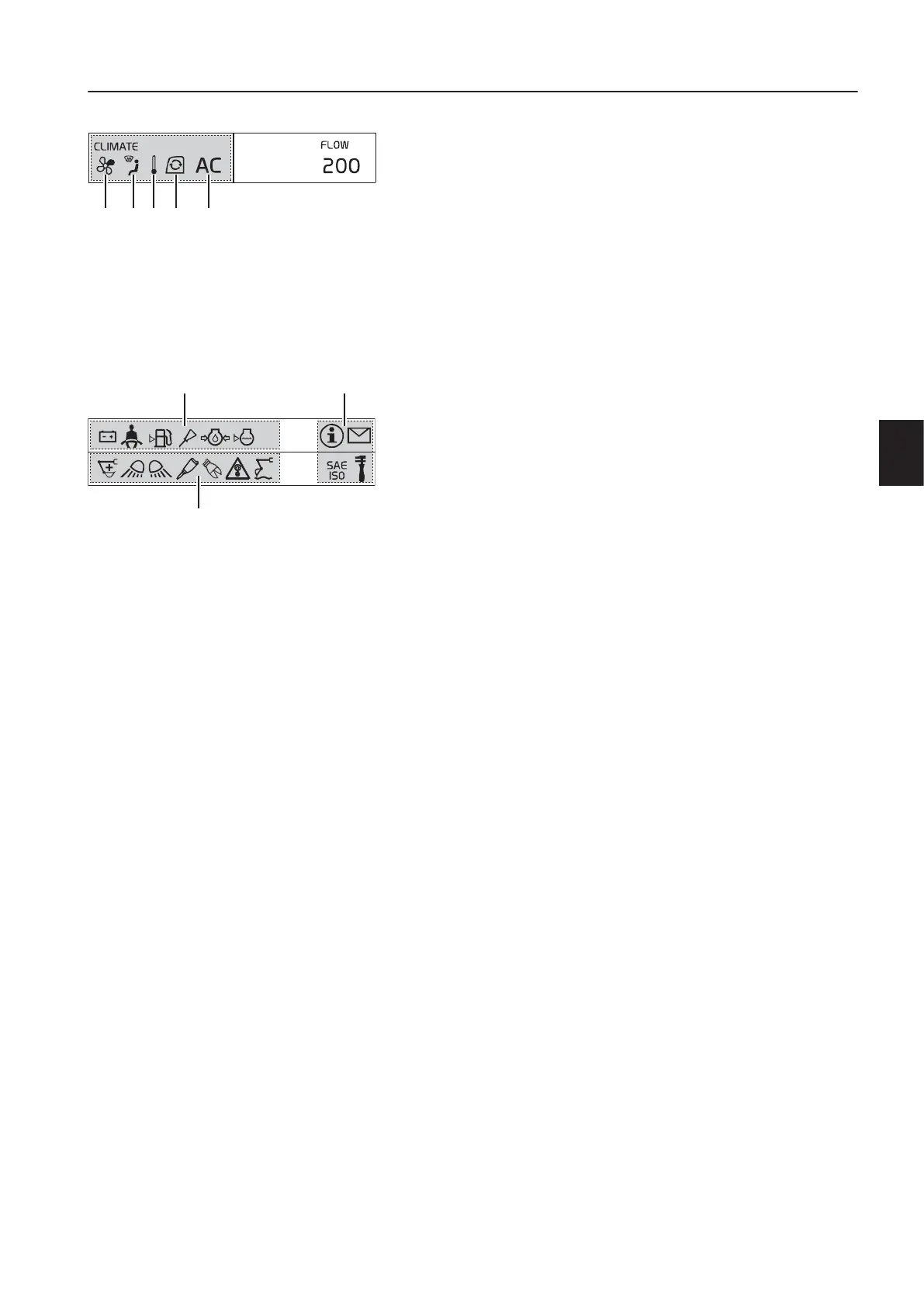

V1134965
l
1 2 3 4 5
1 Fan speed
2 Air flow direction
3 Temperature
4 Air flow circulation
5 Air conditioning status
V1134966
BC
A
A Function indicators
B Warning indicators
C Fixed indicators
