LED lamp 1 shows different colours depend-
ing on charging status.
LED lamp 2 shows different colours depend-
ing on charging status.

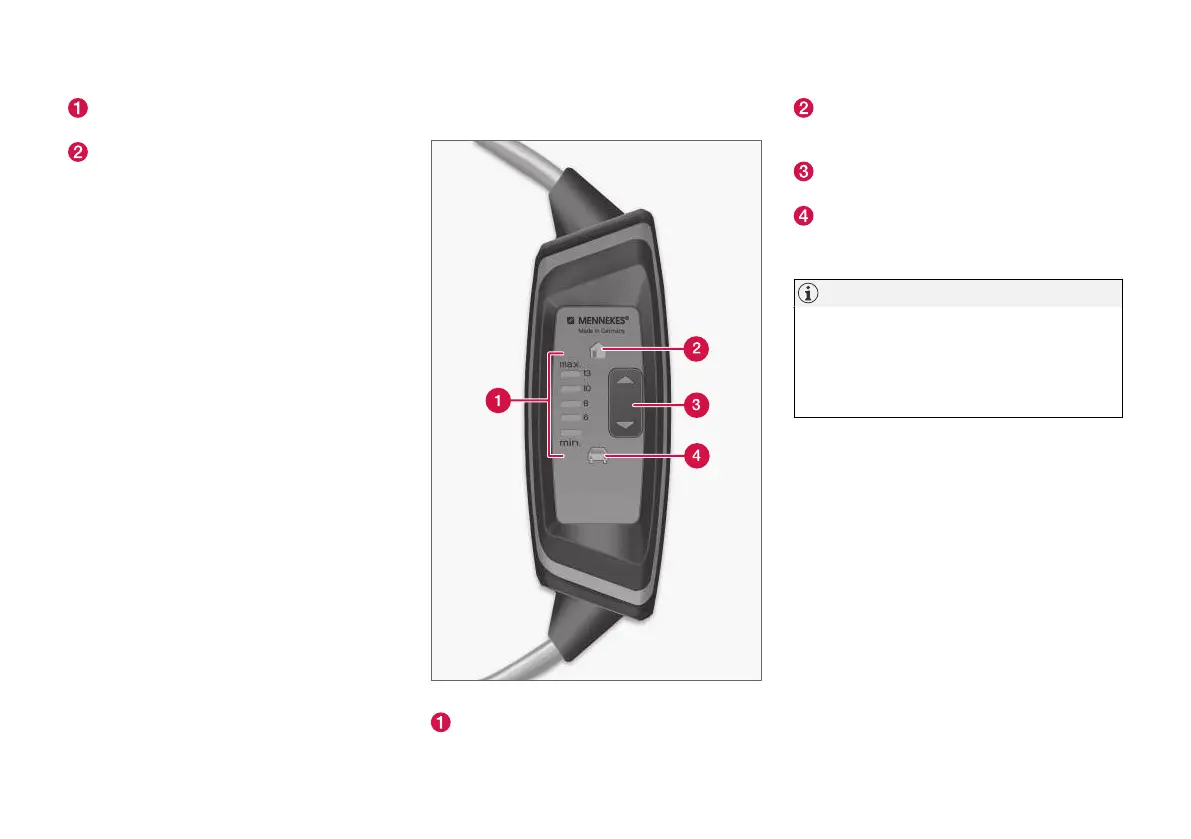

Control unit with both indicators and
controls
Control unit indicators and controls.
Indicator shows selected charging current.
The symbol illuminates when the charging
cable is plugged into a 230 V socket (alter-
nating current).
Pushbuttons to increase and decrease the
charging current.
The symbol illuminates when the charging
cable is plugged into the car's charging input
socket.
NOTE
The charging cable will remember the last
setting of the charging current. It is therefore
important to adjust the setting if another
230 V socket (alternating current) is used at
the next charging.
On the charging cable's control unit, set the
required charging current 6–16 A. On delivery,
the lowest possible charging current is preset.
Related information
•
Charging current (p. 430)
•
Charging cable (p. 432)
•
Charging status in the charging cable's con-
trol unit (p. 441)
•
Start charging the hybrid battery (p. 437)
