4

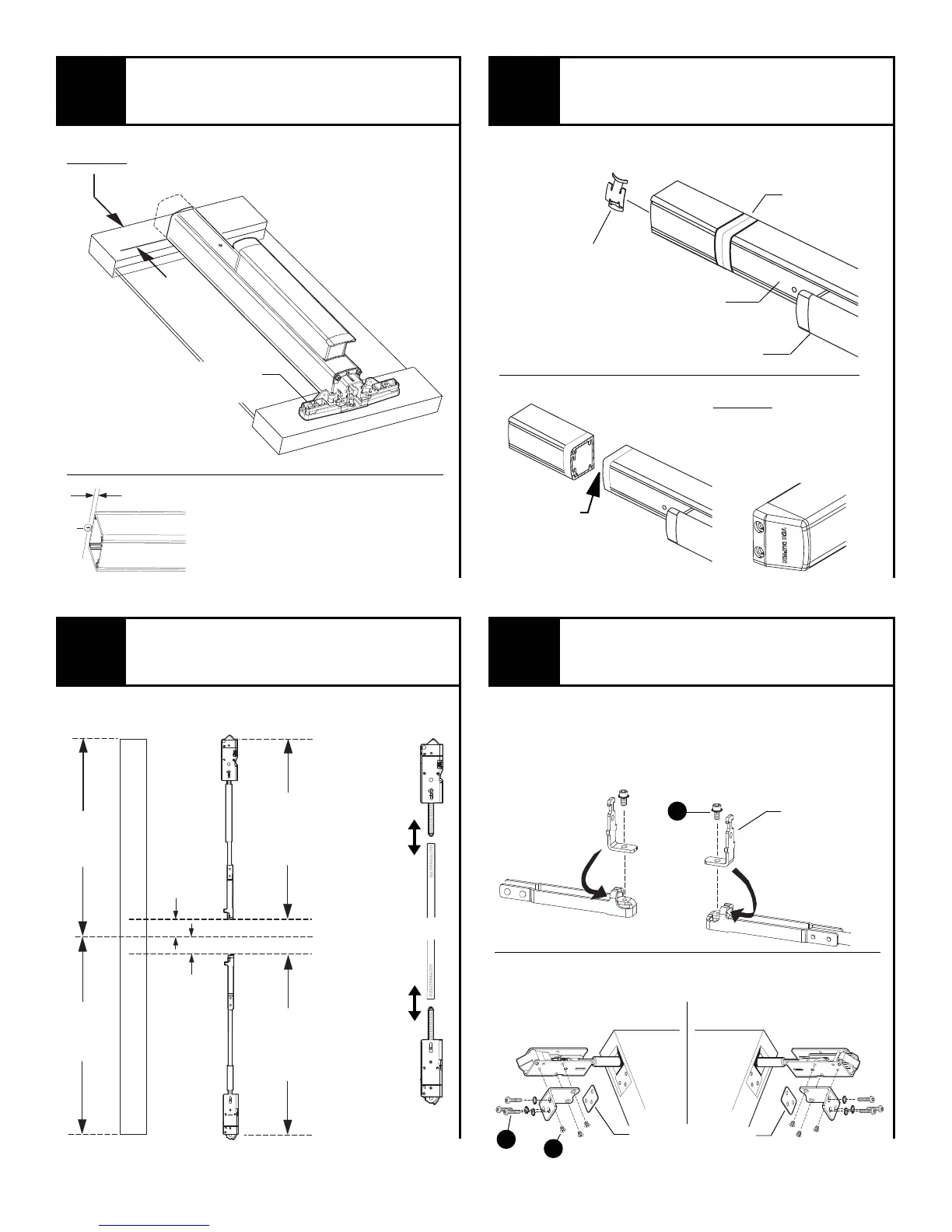

Cut device to length.
Measure to determine
length to cut device.
Cut device
square and
remove all burrs
Note: Device must
be cut square for
proper end cap fit
Ta p e
Cover plate
(flush to pushbar)
Pushbar
Anti-rattle clip
(remove while cutting)
Prepare device for cutting
Cut device square
1-3/16” minimum clearance
(with end cap removed)
”6
1/5
If 5/8” diameter wire access hole
has been predrilled in door, cut
device 5/16” from center of hole.
Note
dengila eciveD
gnitnuom htiw
seloh
Assemble rods and latches
and adjust length.
Follow white and brown instruction
cards on rods to set initial rod length
Install rods as shown.
NOTE: Fire devices on metal doors use
brackets on both sides of latches
Top latch & rod Bottom latch & rod
E
D
F
L-brackets
CAUTION:
L-brackets must
be installed in
orientation shown
Shims used when
required for alignment
Fine tune the
total length
by threading
latches in or
out of rods
Measure
top
length
Measure
bottom
length
Subtract
1-9/16”
Total rod length
(with latch bolt
extended)
Total rod length
(with latch bolt
extended)
Subtract
1-9/16”
C
L
C
L
Rods are shipped with L-bracket attached. Insert rods
with L-bracket pointing toward lock stile. Rotate rod until
L-bracket protrudes through door cutout. If this is not
possible, remove L-bracket and re-insert rod, then
re-attach L-brackets.
5
7
6
8
To Next Page
