VONETS - Wireless Module/Finished Product
11

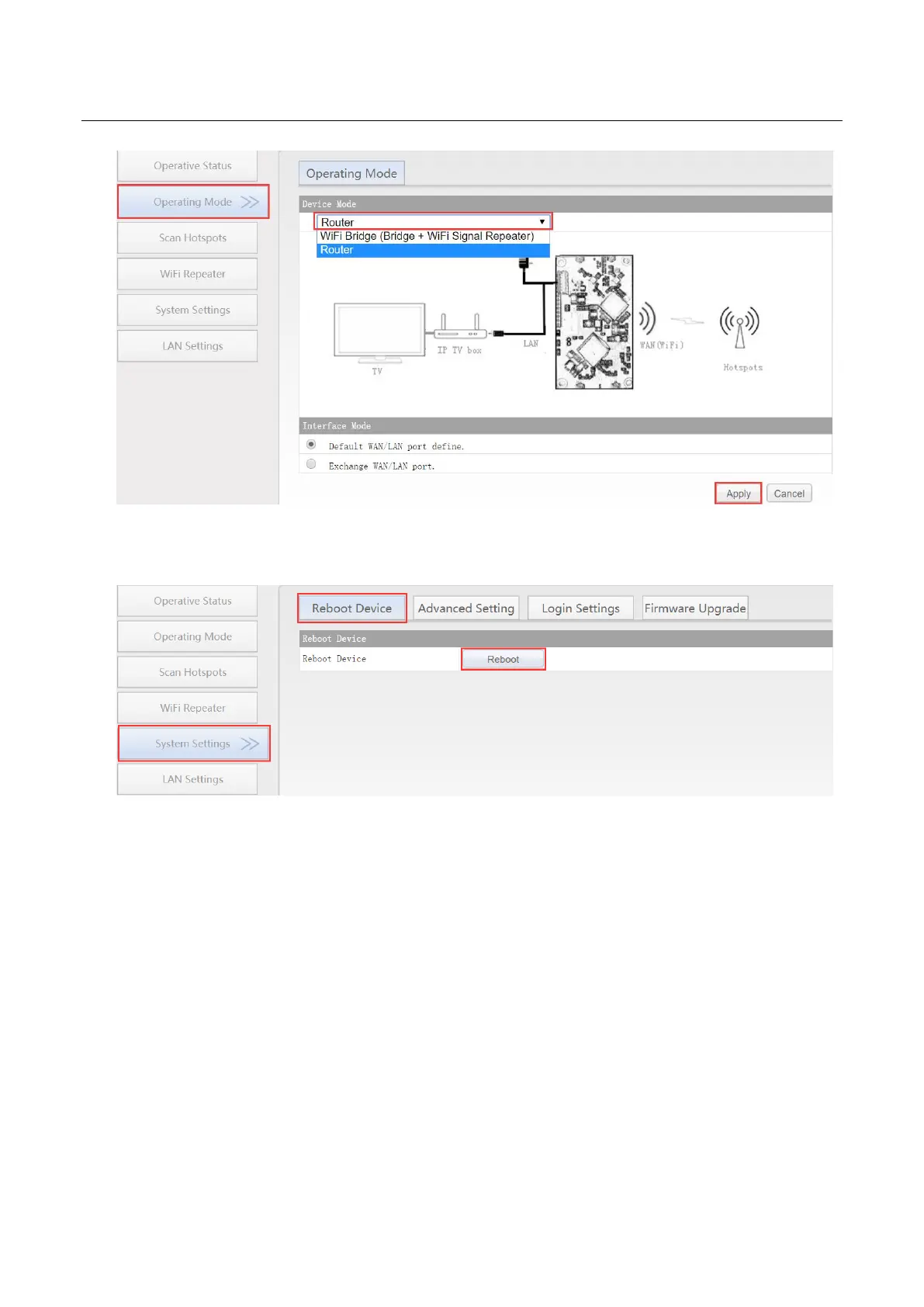

4. In “Operating Mode”, change Device mode to “Router” mode, click “Apply” button;
5. Reboot device: go to “System Settings”-- “Reboot device”, click “Reboot” button,
VONETS module/WiFi product will automatically switch to router mode.
3.2 WAN port setting
3.2.1 WAN/LAN exchange
In routing mode, the Ethernet port of VONETS module/WiFi product is divided into a WAN port and
a LAN port, and WAN/LAN can be interchanged.
The Ethernet port of VM300 module / VAP11AC finished product defaults to WAN port. The
Ethernet cable defaults to LAN port. If the interface mode is changed to “WAN/LAN exchange”,
the Ethernet cable will be WAN port and the Ethernet port will be LAN port.(This option can keep
unchanged);
The Ethernet cable of VM5G/VBG1200 WiFi product defaults to LAN port, the interface mode must
be changed to “WAN/LAN interchange” to make Ethernet cable to WAN port, click “Apply”,
then reboot VONETS module/WiFi product.
