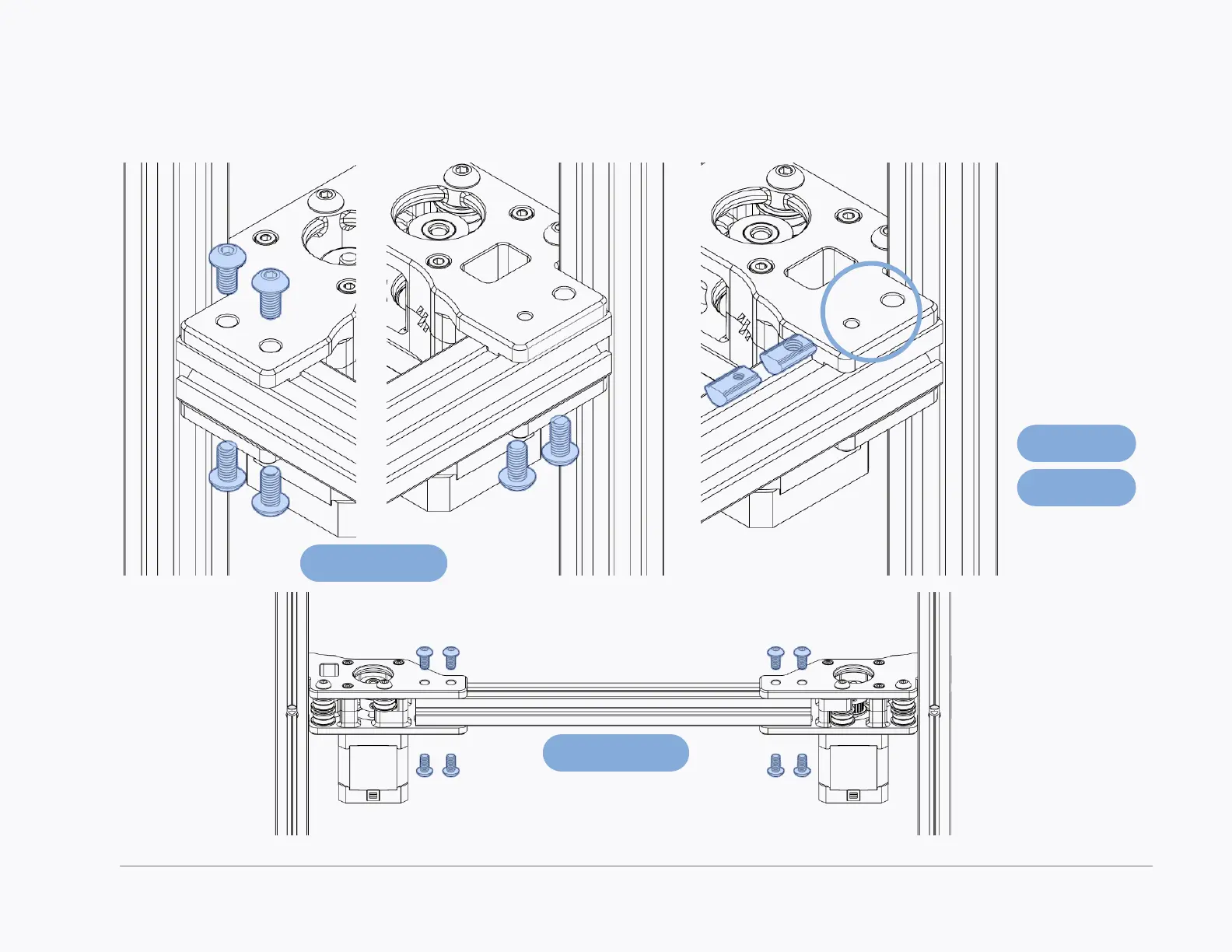

PRELOAD T NUTS
You won’t be able to
access this spot after
the rails are installed.
Preinstall and align 1
M5 T Nut and 1 M3 T
Nut now.
M5x10 BHCS
M5x10 BHCS
M3 T-Nut
M5 T-Nut
REAR CROSSBAR & A/B DRIVE MOUNTING
