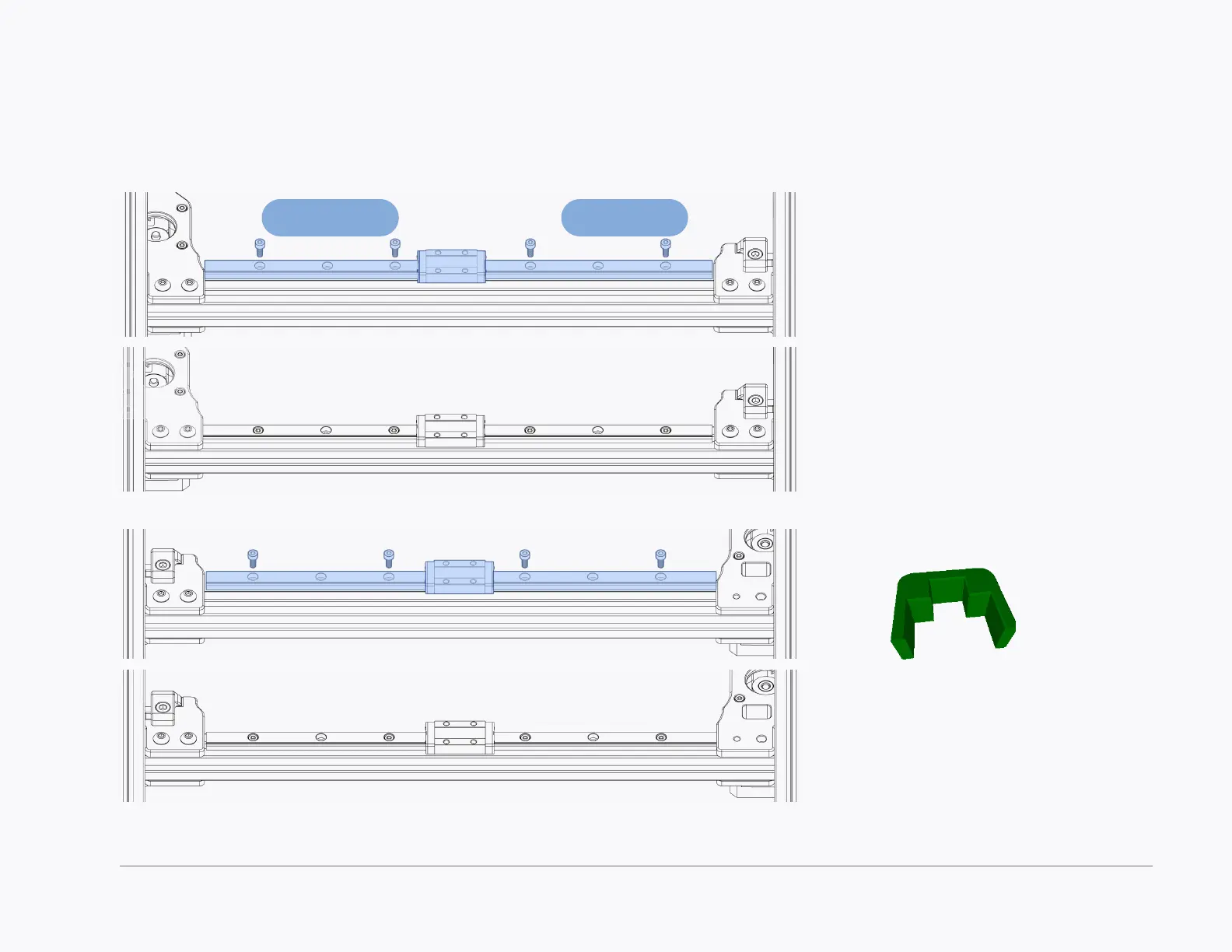

CENTERED RAIL INSTALLATION GUIDE
Use the guides to position the rail in the center
of the extrusion prior to fastening the screws.
MIND THE CARRIAGE
The carriages are designed to slide along the rail easily.
This unfortunately also includes sliding off the rails.
Dropping the carriage likely irreparably damages it.
MGN9 RailM3x8 SHCS
LINEAR RAILS MOUNTING
USE A BALL END DRIVER
The top extrusion will block access for a regular
straight driver.
