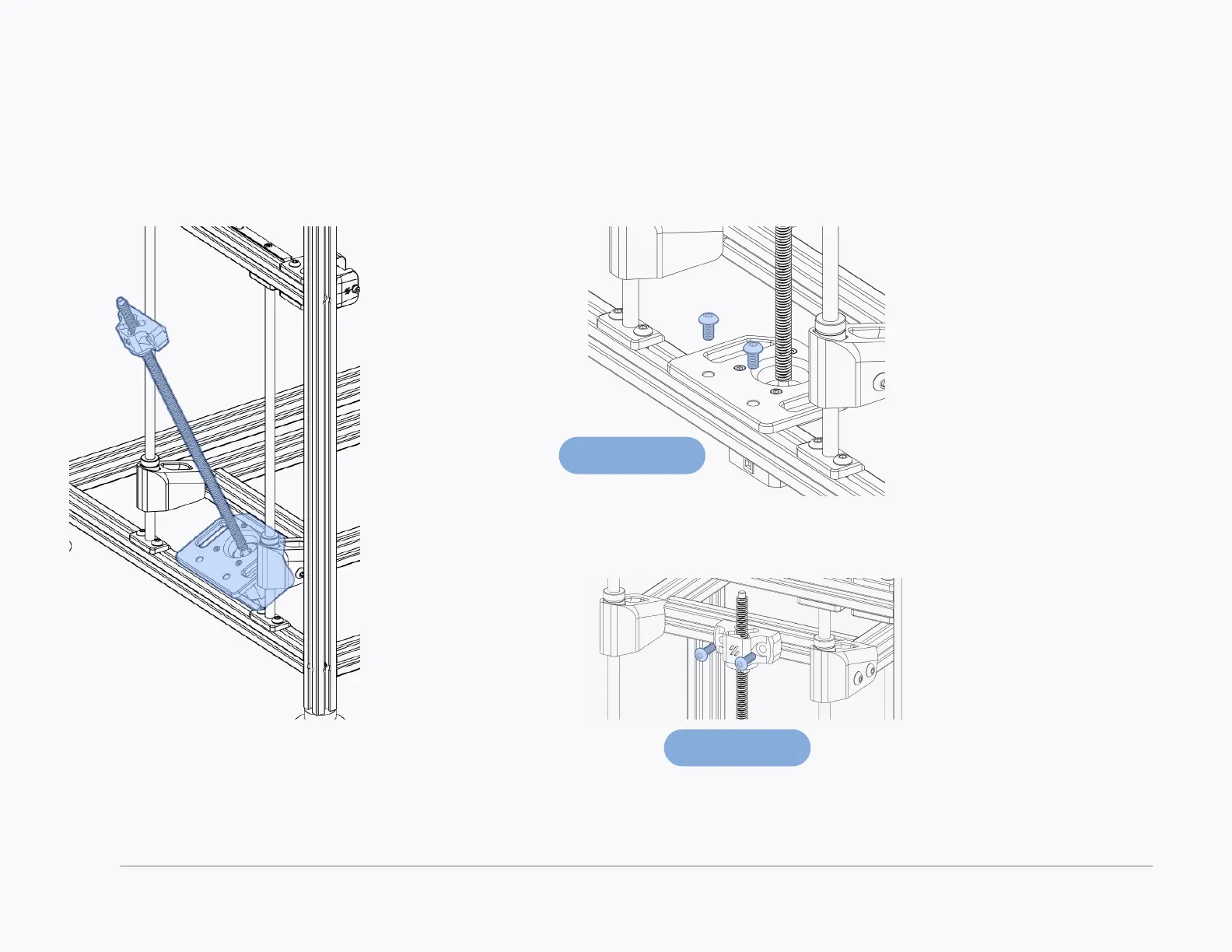

SWING INTO PLACE
Insert one of the Z motors
on an angle and secure it to
the extrusions.
LEAD-SCREW BLOCK
Lift the bed carrier and
fasten the lead-screw
block to it.
REPEAT FOR SECOND MOTOR
Repeat the install steps for the
second Z motor.
Z AXIS STEPPER MOTOR
ALIGNMENT
Position the lead-screw block in the
center of the extrusion.
Adjust the position of the motor
mount until the lead-screw is
perpendicular.
M5x10 BHCS
M5x16 BHCS
