70
WWW.VORONDESIGN.COM
X AXIS RAIL TRAMMING
RAIL ALIGNMENT

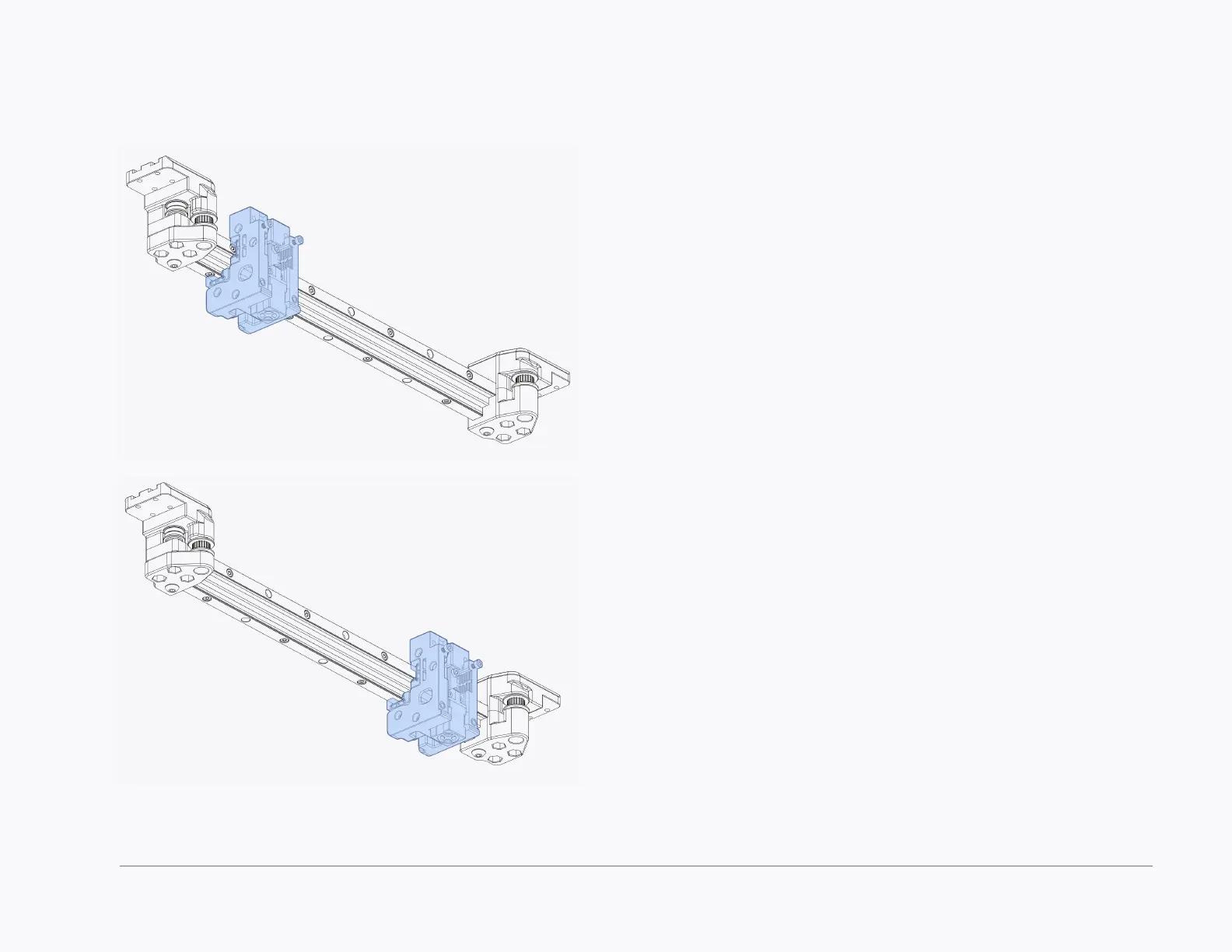

Move X Carriage over the full range to initially align
the bottom rail.
Slightly tighten the screws of the front rail, the
screws of the bottom rail and the pivot block screw
on the underside of the carriage.
Move the X Carriage to check for any binding.
Repeat until all screws are fully tight. If you get
binding at any point slightly loosen the screws and
retry.
Refer to Discord if you are having issues with the
alignment.
