VORON ERCF v2 - Page 105

WWW.VORONDESIGN.COM
CAD version: ERCF V2
105105
LINEAR AXIS
I
J
K
1x [a]_Drag_Chain_Anchor_Bottom.stl †
1x [a]_Motor_Lock.stl †
1x Linear_Axis_Selector_Motor_Support.stl
2x 8mm rods
1x GT2 20T pulley
6x M3 Heatset Inserts
6x M3x8mm SHCS
2x M3x12mm SHCS
1x M5x30mm BHCS
1x M5 Nylock nuts
1x NEMA17 Pancake Motor
A
B
C
D
E
F
G
H
LINEAR AXIS HINGE SUB-BOM
C
I
B
D
G
F
H
E

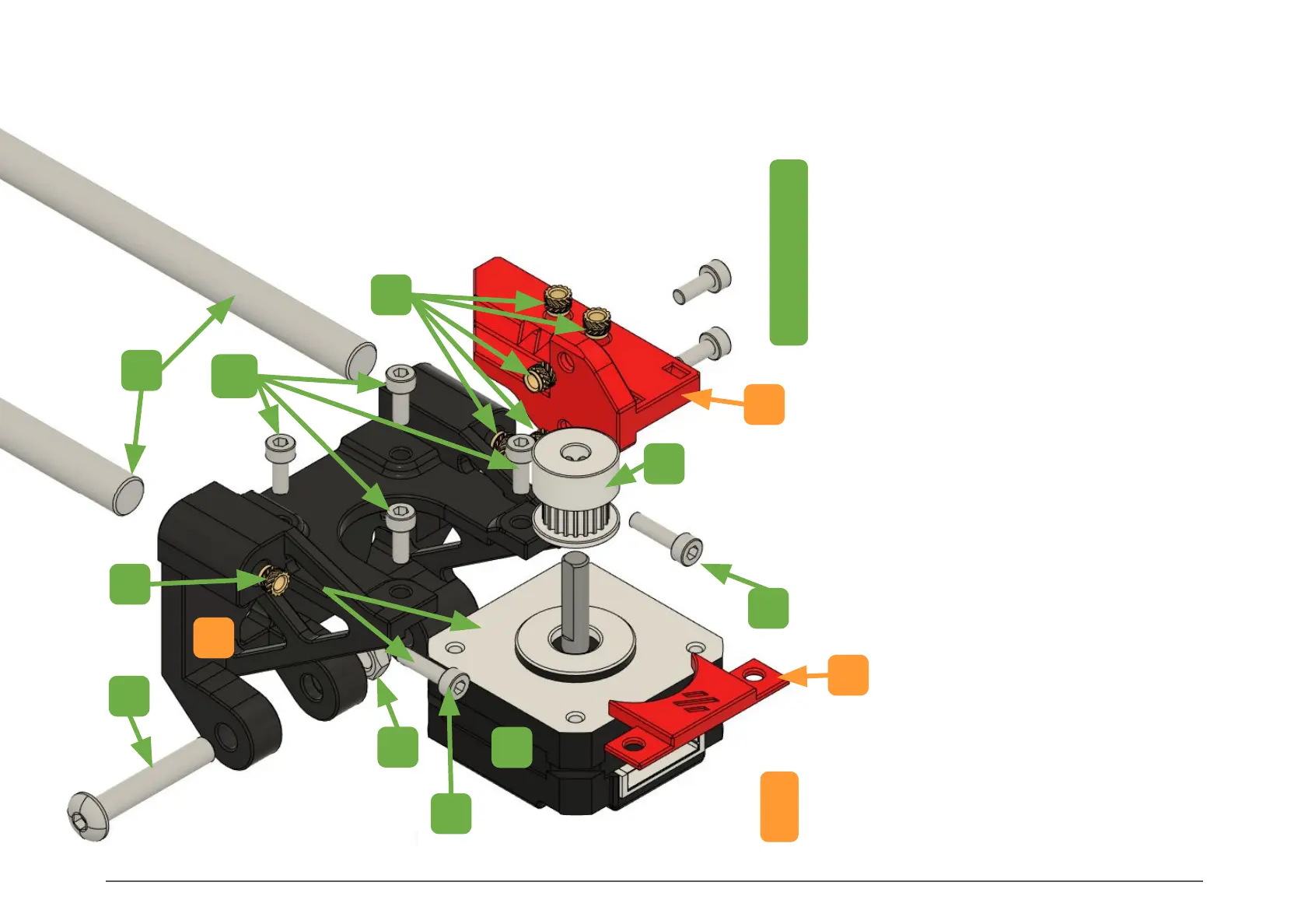

LINEAR AXIS HINGE EXPLODED VIEW
A
E
C
J
K
