VORON ERCF v2 - Page 81

WWW.VORONDESIGN.COM
CAD version: ERCF V2
I
J
K
L
M
N
O
P
1x [a]_Selector_Cart.stl
1x Belt_Tensioner.stl †
1x Drag_Chain_Anchor.stl †
1x Selector_Door.stl
1x Selector_Spring_Cap.stl
1x Servo, MG90S or Savox SH0255MGP (shown)
1x Servo_Mount_Savox.stl***
1x Piece of Filament
***Or Servo_Mount_MG90S.stl if using MG90S.
SELECTOR
G
2x 3x2mm Magnet
1x 6x12x1mm Spring
2x LM8UU or RJ4JP-01-08
2x M2x10 Self-Tapping**
6x M3 Threaded Inserts
1x M3x8mm SHCS
1x M3x12mm SHCS
3x M3x20mm SHCS
**Supplied with your choice of
servo. If none were supplied,
use M2x8mm SHCS.
A
B
C
D
E
F
G
H
SELECTOR SUB-BOM
L
F
I
C
WHAT ABOUT THE ENCODER?
The Encoder will get its own
sub-BOM later.
J
M
N
M
H
H
A
B
E
E

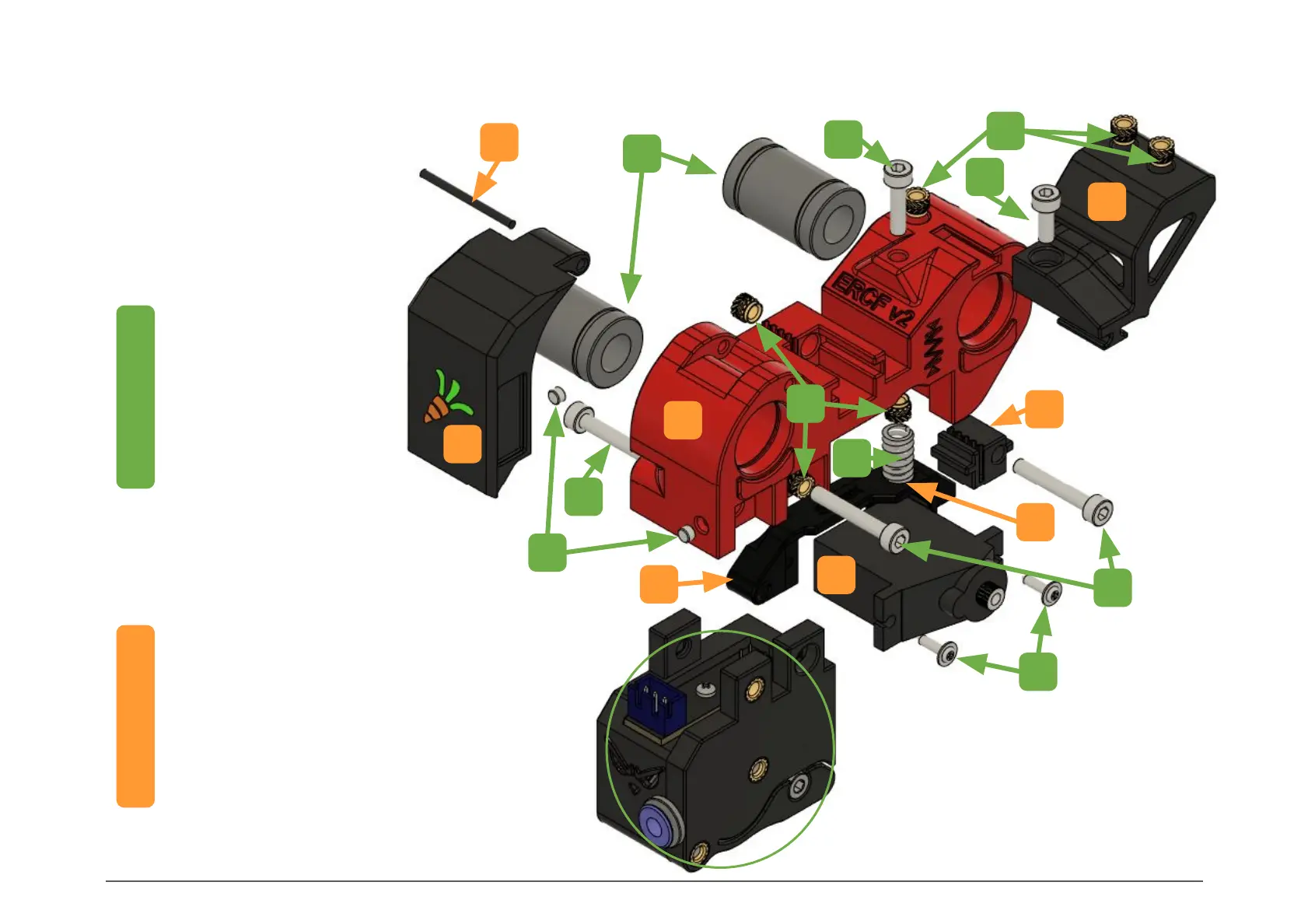

EXPLODED VIEW
D
K
O
