OPTION: TOOLHEAD PCB

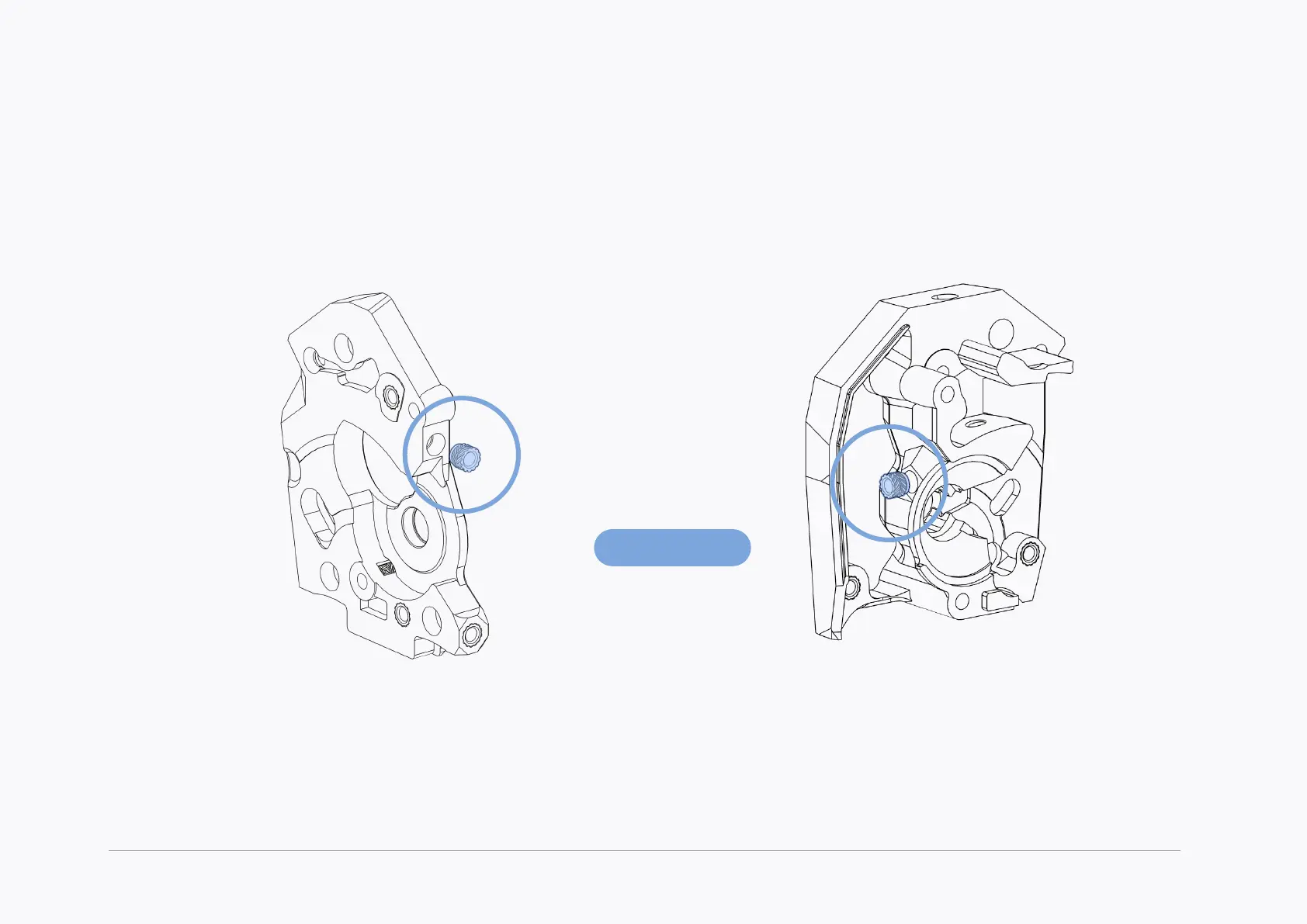

If you opt to use a toolhead PCB, add additional heat set inserts into locations highlighted below.
Heat Set Insert
HEAT SET INSERTS
HEAT SET INSERT
Be careful when inserting this heat set
insert. It’s easy to accidentally touch the left
side of the part with the soldering iron.
