DRIVE GEAR

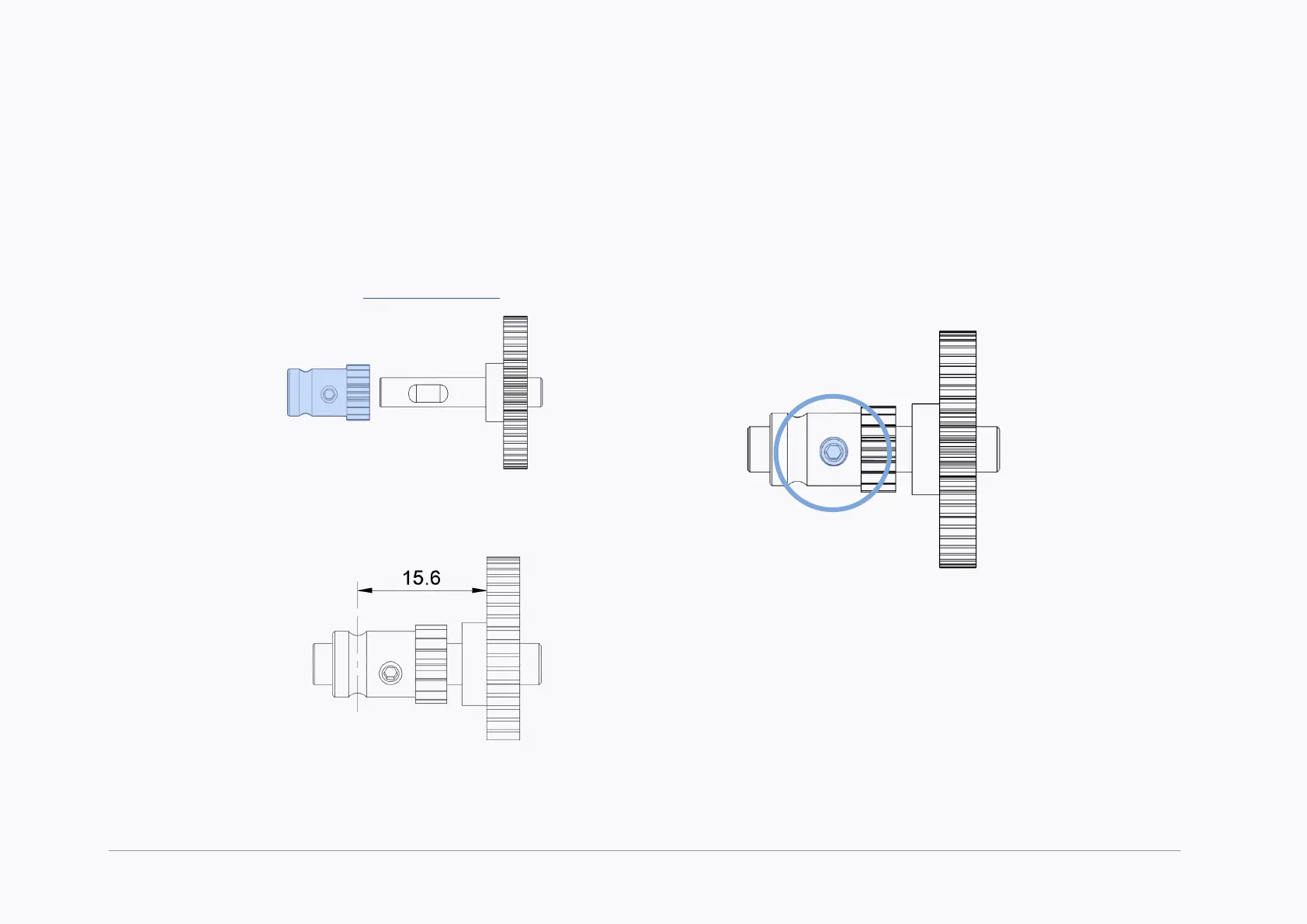

Make sure the set screw in the lament drive
gear is seated against the notch in the shaft.
Carefully tighten the set screw, the head is easy
to strip.
DRIVE ASSEMBLY
A NOTE ON GEARS
Poorly made gears often cause print quality
issues. For best performance consider
sourcing the original Bondtech parts.
INITIAL POSITION
The nal position is set later.
THREAD LOCKER
The nal position of the drive gear is set in a later step. Common thread
lockers have a long enough working time to complete the steps without
issues.
Familiarize yourself with the steps on the next 3 pages before you apply
thread locker.
Complete the steps on the next 3 pages after applying the thread locker.
