CHECK FOR CLEARANCE
The drive shaft must not touch the motor housing. Make sure
it does not sit above the surface of the printed part.
Check if the shaft has sufcient clearance when fully seated.
Depending on the shafts tolerances you may need to adjust
the position of the drive gear or sand the face of shaft.

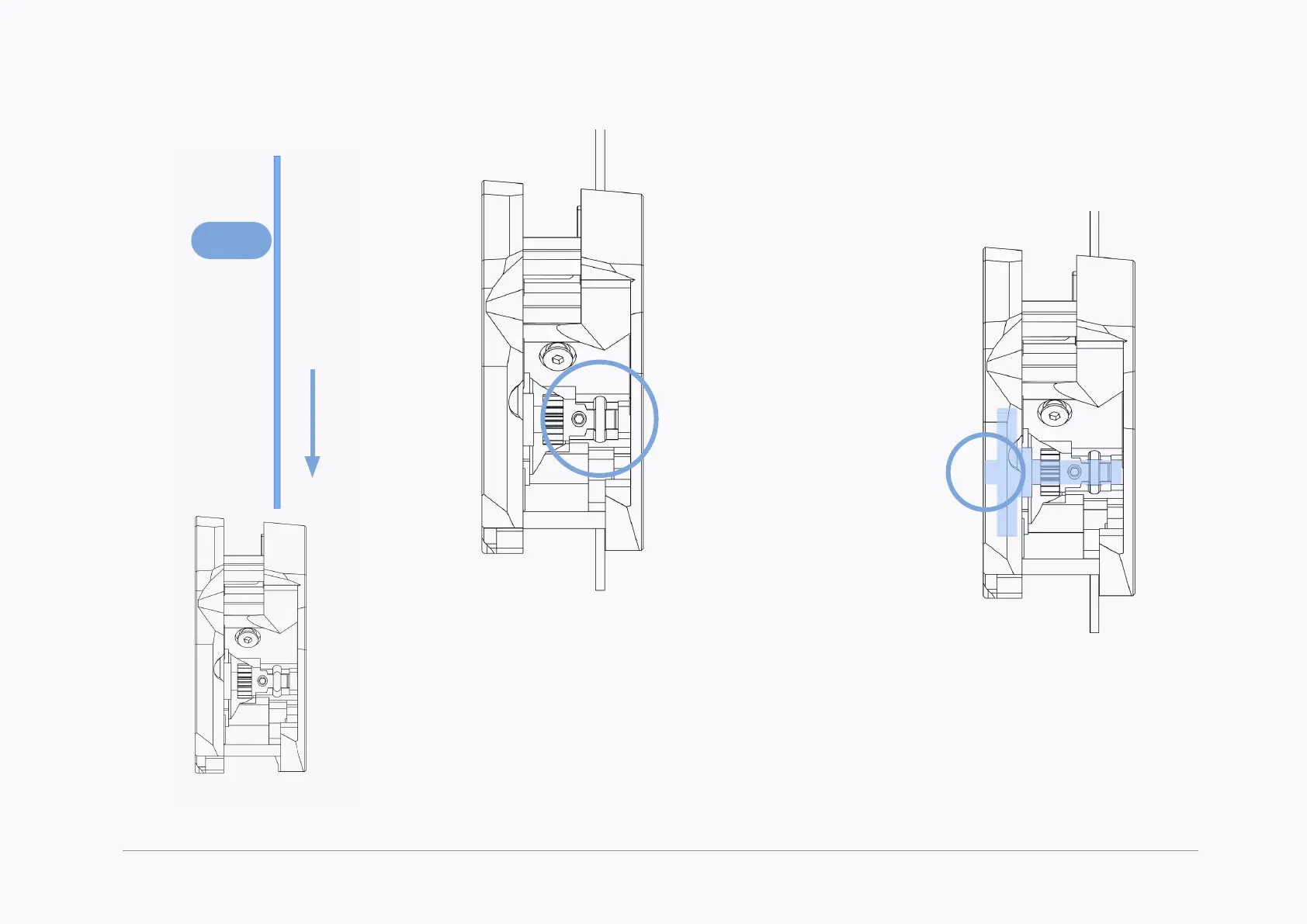

CHECK ALIGNMENT
With the lament inserted, verify if
the lament path and drive gear are
aligned.
Loosen the set screw and adjust the
position of the drive gear if required.
INSERT FILAMENT
Insert a piece of 1.75mm
lament into the extruder.
DRIVE ALIGNMENT
Filament
