VORON STEALTHBURNER - Hotend Wiring and Strain Relief

40
WWW.VORONDESIGN.COM
PART PREP
BEND STRAIN RELIEF
Carefully bend the strain relief to clear the printed part.
Firmly hold the HeaterCore to prevent bending the
Revo Nozzle.
It is critical that the Revo Nozzle is fully hand tightened
into the heatsink. You MUST bend the strain relief to
achieve this.

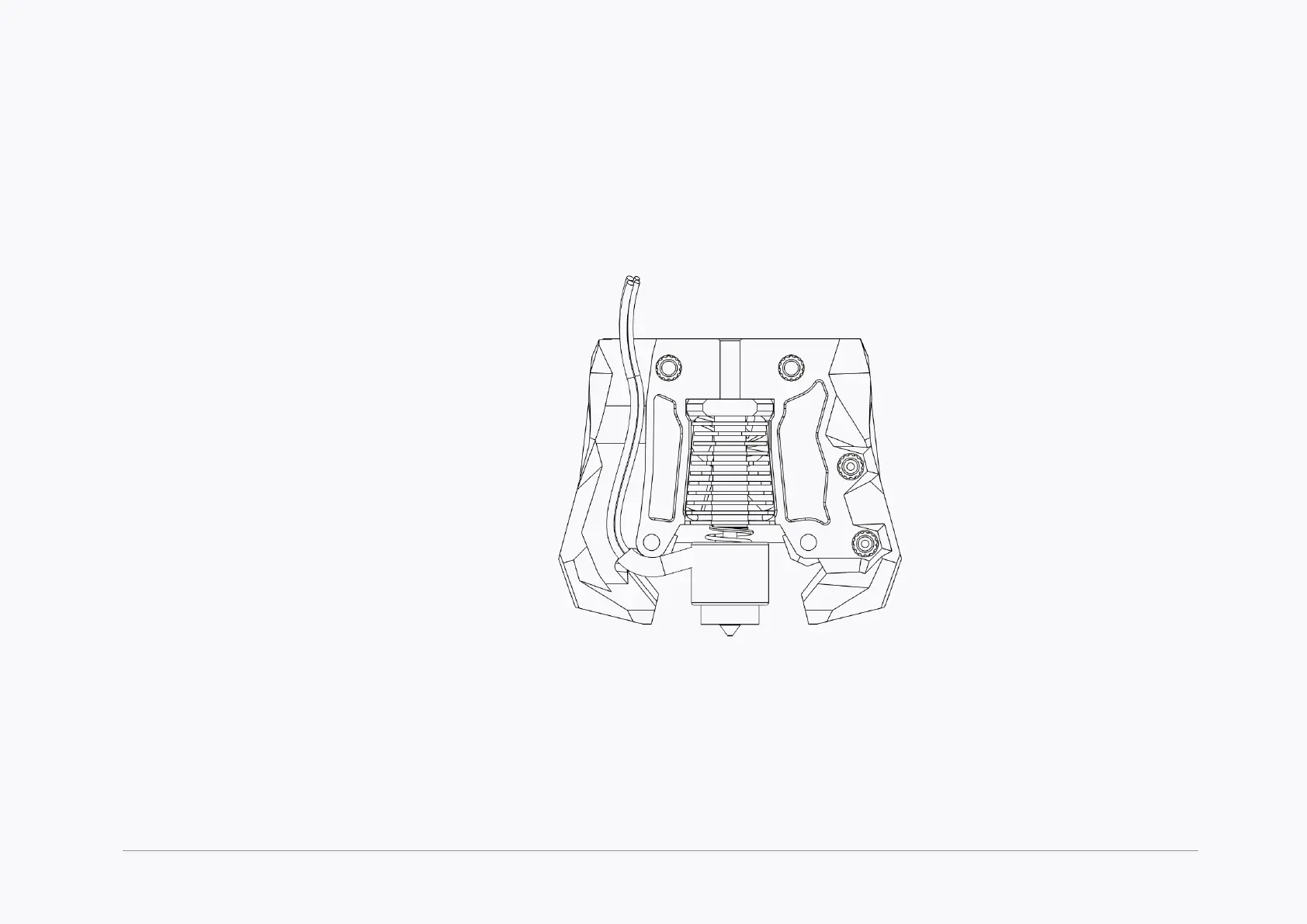

HOTEND WIRE ROUTING
Route the wires as shown to the right. This is universal
to all hotend types.
