VORON STEALTHBURNER - Hotend Fan Installation; Orientation, Insertion, and Wiring

53
WWW.VORONDESIGN.COM

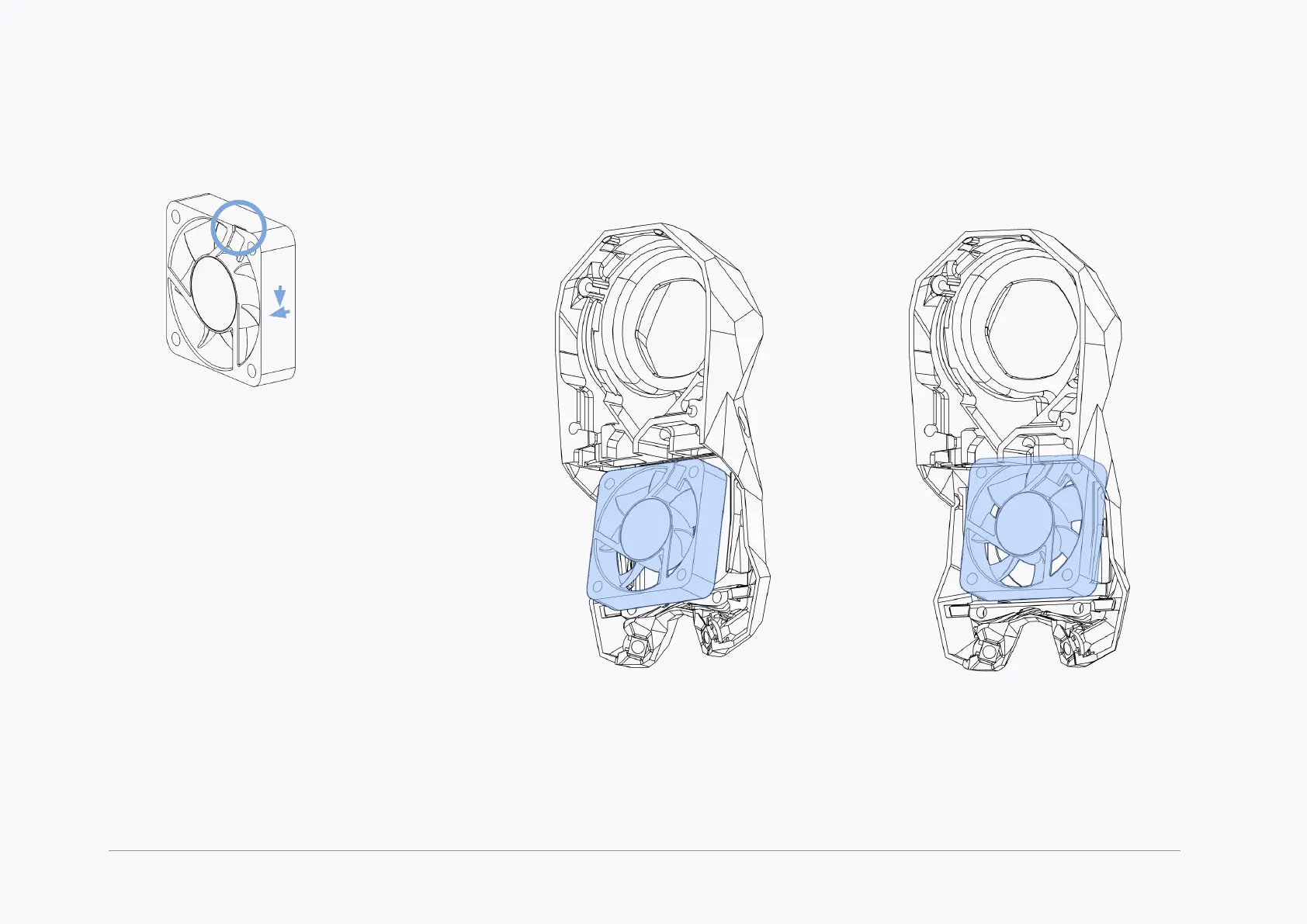

FAN ORIENTATION
Rotate the fan so that the wires
exit on the top and the air is
pushed “inwards”.
HOTEND FAN
FAN INSERTION
Insert the fan at a slight angle and clip it into place.
Mind the fan orientation.
