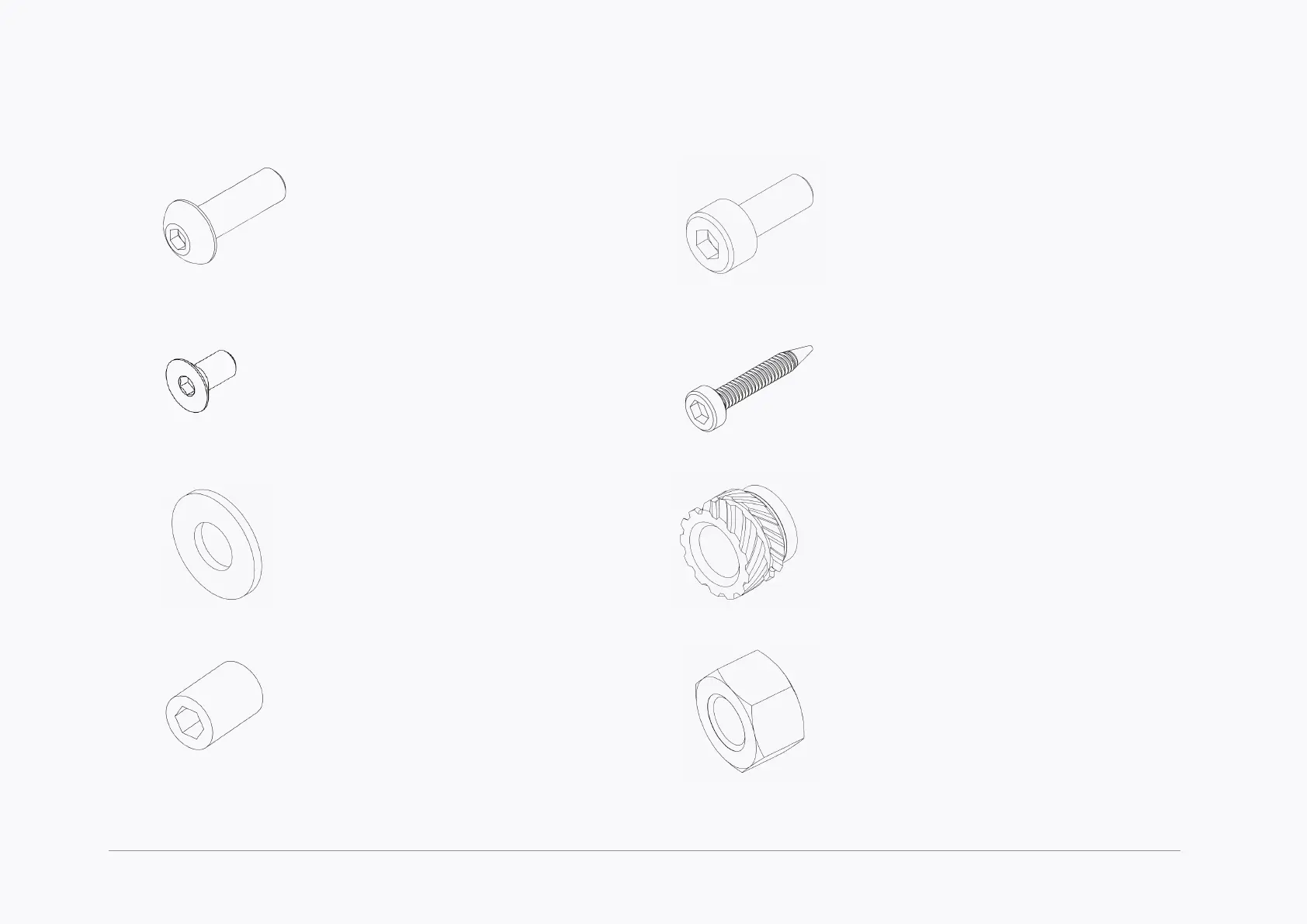

BUTTON HEAD CAP SCREW (BHCS)
Metric fastener with a domed shape
head and hex drive. Most commonly
found in locations where M5 fasteners
are used.
ISO 7380-1
SOCKET HEAD CAP SCREW (SHCS)
Metric fastener with a cylindrical head
and hex drive. The most common
fastener used on the Voron.
ISO 4762
HARDWARE REFERENCE
SELF TAPPING SCREW
Fastener with a pronounced thread
prole that is screwed directly into
plastic.
FLAT HEAD COUNTERSUNK SCREW (FHCS)
Metric fastener with a cone shaped head and
a at top.
ISO 10642
HEAT SET INSERT
Heat inserts with a soldering tip so that
they melt the plastic when installed.
As the plastic cools, it solidies around
the knurls and ridges on the insert for
excellent resistance to both torque and
pull-out.
WASHER
Usually stamped from sheet metal this
type of spacer is not as consistent in
thickness as the shims are. Only used in
M3 size.
DIN 125
SET SCREW
Small headless screw with an internal
drive. Used in pulleys and other gears.
Also called a grub screw.
ISO 4026
HEX NUT
Hex nuts couple with bolts to create a
tight, secure joint.
ISO 4032
