114
WWW.VORONDESIGN.COM

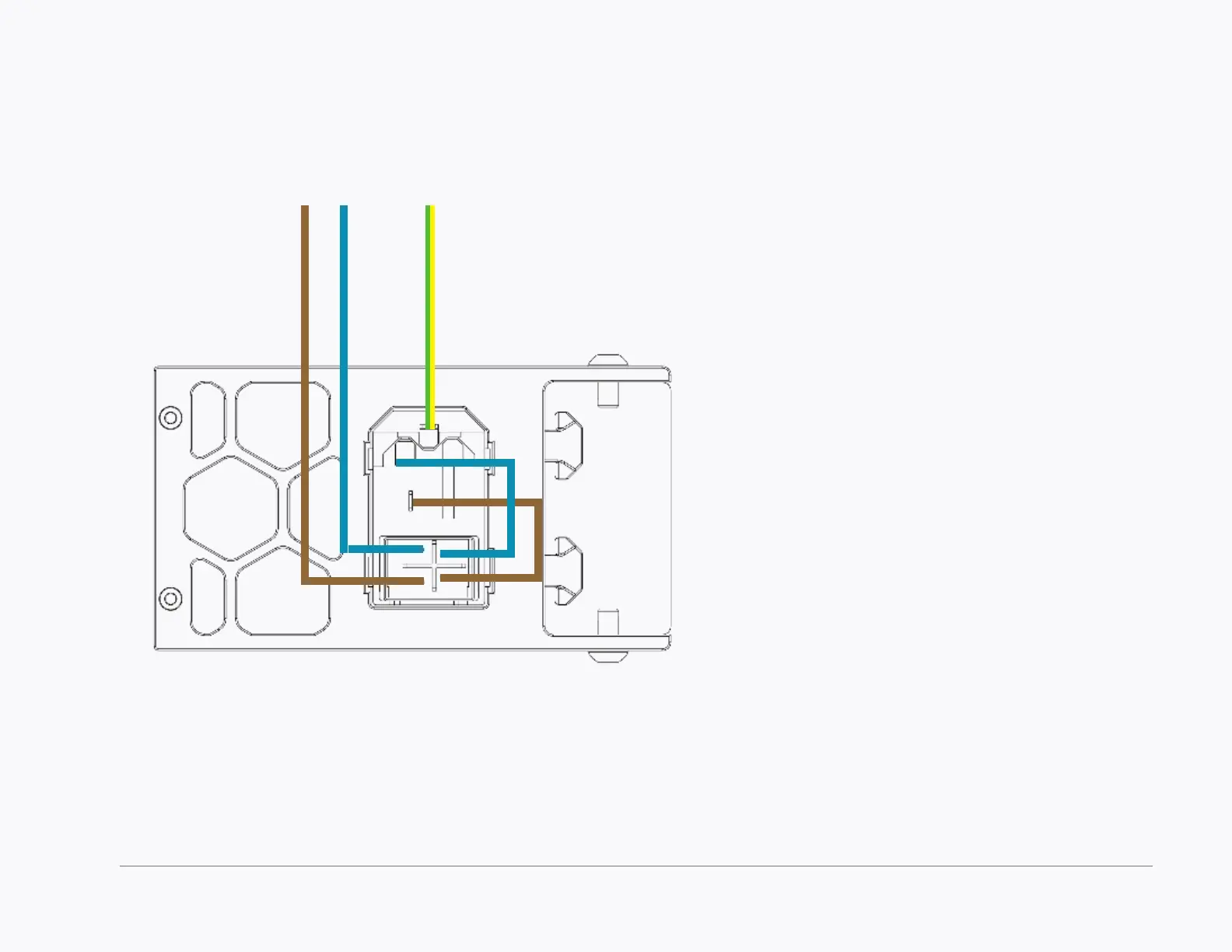

MAINS INLET WIRING
We show the wiring in the IEC colour scheme.
Depending on your region the colour scheme
and wiring standards will differ.
Mains wiring should only be done by qualied
personnel trained in local regulations and safety
standards.
Failure to observe those could result in bodily
harm.
ATTACH 250MM OF WIRE
Cables should be at least 0.75mm² (AWG18) or
thicker depending on local regulations.
To Next Page
